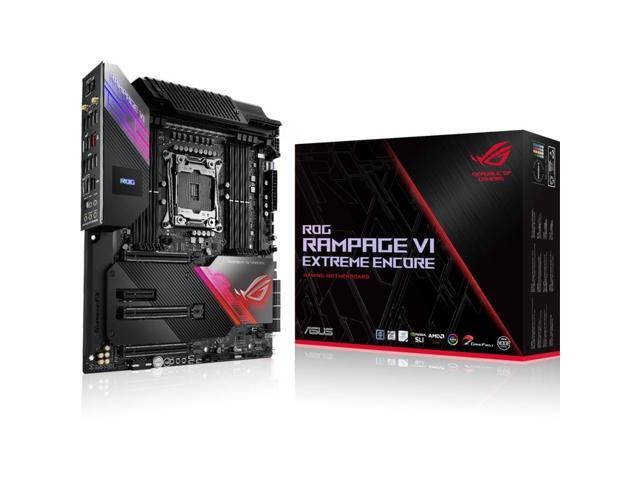

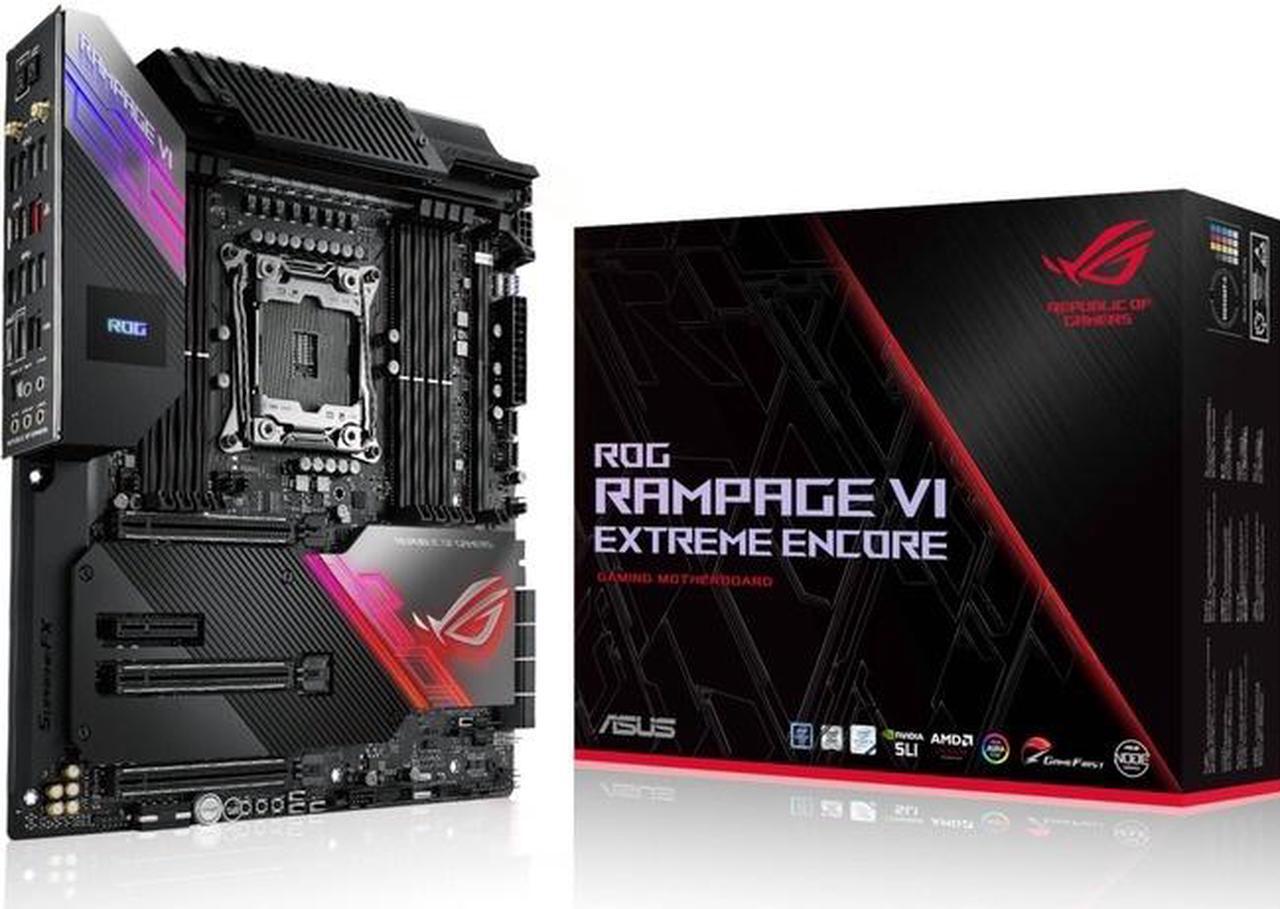

    ASUS ROG Rampage VI Extreme Encore LGA 2066 Intel X299 Extended ATX Intel Motherboard

    Be the first to review this product...
    • Intel X299
    • Intel Socket 2066 Core X-Series Processors
    • Optimized for Intel Core X-Series 10000 Processor Family
    • DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews

    Learn more about the ASUS Rampage VI Extreme Encore

    Model
    Brand ASUS
    Series ROG
    Model Rampage VI Extreme Encore
    Supported CPU
    CPU Socket Type LGA 2066
    CPU Type Intel Socket 2066 Core X-Series Processors
    Optimized for Intel Core X-Series 10000 Processor Family
    * Refer to www.asus.com for CPU support list.
    Supported CPU Technologies Supports Intel Turbo Boost Max Technology 3.0
    * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.
    Chipsets
    Chipset Intel X299
    Memory
    Number of Memory Slots 8x288pin (DDR4)
    Memory Standard DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    Maximum Memory Supported 256GB
    Channel Supported Quad Channel
    Expansion Slots
    PCI Express 3.0 x16 48-Lane CPU:
    (Intel Core i9 10000 X-Series CPU)
    3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes) *
    44-Lane CPU:
    (Intel Core i9 9000/7000 and i7 9000 X-Series CPU)
    3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) **
    28-Lane CPU:
    (Intel Core i7 7000 X-Series CPU)
    3 x PCIe 3.0 x16 (x16/x8/x4 mode)

    * When the PCIe runs x16/x16/x8 mode, DIMM.2_2 will be disabled.
    ** When PCIe runs x16/x16/x4 mode, DIMM.2_2 will be disabled.
    PCI Express x4 1 x PCIe 3.0 x4 *
    * The PCIe 3.0 x4 slot shares bandwidth with M.2_2.
    Storage Devices
    Serial ATA (SATA) 8 x SATA 6Gb/s
    M.2 Intel Core X-Series Processors Family:
    1 x ROG DIMM.2 Module supports 2 M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)*
    Intel Rapid Storage Technology Enterprise supports
    Intel X299 Chipset:
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)**

    * DIMM.2_2 will be disabled when the PCIe runs x16/x16/x8 mode on 48-Lane CPU.
    * DIMM.2_2 will be disabled when the PCIe runs x16/x16/x4 mode on 44-Lane CPU.
    * DIMM.2 will be disabled when using 28-Lane CPU.
    ** The PCIe 3.0 x4 slot shares bandwidth with M.2_2.
    Intel Optane Ready Yes
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset ROG SupremeFX High Definition Audio CODEC S1220
    Audio Channels 8 Channels
    * Due to limitations in HDA bandwidth, 32-bit / 192 kHz is not supported for 8-Channel audio
    Onboard LAN
    LAN Chipset AQUANTIA AQC107
    Second LAN Chipset Intel I219V
    Max LAN Speed 10Gbps + 1Gbps
    Wireless LAN Intel Wi-Fi 6 AX200
    Supports channel bandwidth: HT20/HT40/HT80/HT160
    2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5 GHz
    Up to 2.4Gbps transfer speed
    Bluetooth Bluetooth 5.0
    Rear Panel Ports
    Back I/O Ports 1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C)
    1 x USB 2.0
    1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x USB BIOS Flashback Button(s)
    1 x ASUS Wi-Fi Module
    5 x LED-illuminated audio jacks
    8 x USB 3.2 Gen 1 (up to 5Gbps) ports
    2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + Type-C)
    1 x Aquantia AQC-107 10G LAN port
    Anti-surge LAN (RJ45) port
    Internal I/O Connectors
    Onboard USB 2 x USB 3.2 Gen 2 front panel connector
    2 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    Other Connectors 1 x W_PUMP+ 1
    1 x W_PUMP+ 2
    1 x WB_SENSOR
    2 x Aura Addressable Strip Header(s)
    2 x Aura RGB Strip Headers
    1 x VROC_HW_Key
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x H_AMP fan connector
    1 x HS_FAN
    1 x Front panel audio connector(s) (AAFP)
    1 x Slow Mode switch(es)
    10 x ProbeIt Measurement Points
    1 x BIOS Switch button(s)
    1 x Node Connector(s)
    1 x LN2 Mode jumper(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x System panel connector
    2 x T_Sensor Connector
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x Start button
    1 x Speaker connector
    1 x PAUSE Switch
    1 x RSVD Switch
    1 x FlexKey button
    1 x FS Mode switch
    Physical Spec
    Form Factor Extended ATX
    LED Lighting RGB
    Dimensions (W x L) 12.0" x 10.9"
    Power Pin 1 x 24-pin EATX Power connector(s)
    2 x 8-pin EATX 12V Power connectors
    1 x 6-pin EZ_PLUG Power connector(s)
    1 x 4-pin EZ_PLUG Power connector(s)
    Features
    Features Multi-GPU Support:
    Supports NVIDIA 3-Way SLI Technology
    Supports NVIDIA 2-Way SLI Technology
    Supports AMD 3-Way CrossFireX Technology
    Supports AMD 2-Way CrossFireX Technology

    ROG Exclusive Features:
    Clear CMOS button
    Extreme Engine Digi+:
    - MicroFine Alloy Chokes
    - 10K Black Metallic Capacitors
    ROG Extreme OC kit:
    - OptiMem III
    - ReTry button
    - Safe Boot button
    - Start button
    - Slow Mode
    - LN2 Mode
    - EZ Plug
    - FlexKey Button
    ProbeIt
    ROG Exclusive Software
    - Mem Tweakit
    - RAMCache III
    - RAMDisk
    - CPU-Z
    - GameFirst V
    - Sonic Radar III
    - Overwolf
    - Sonic Studio III + Sonic Studio Virtual Mixer
    ROG DIMM.2 module with heatsink
    ROG Aluminum heatsink cover

    Special Features:
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
    - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
    AI Overclocking
    LiveDash OLED 1.77"
    AURA:
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    - Addressable Gen 2 Header
    ASUS Exclusive Features:
    - USB BIOS Flashback
    - AI Suite 3
    - Ai Charger
    - ASUS CrashFree BIOS 3
    - Armoury Crate
    - Pre-mounted I/O Shield
    - ASUS NODE: hardware control interface
    - ASUS C.P.R. (CPU Parameter Recall)
    ASUS Q-Design:
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Armoury Crate

    BIOS:
    2 x 128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

    Manageability:
    WfM 2.0, WOL by PME, PXE

    Support Disc:
    Overwolf
    Daemon Tools Software
    WinRAR
    Anti-virus software (1-year full subscription)

    Operating System:
    Windows 10 64-bit
    Additional Information
    Date First Available June 19, 2025
