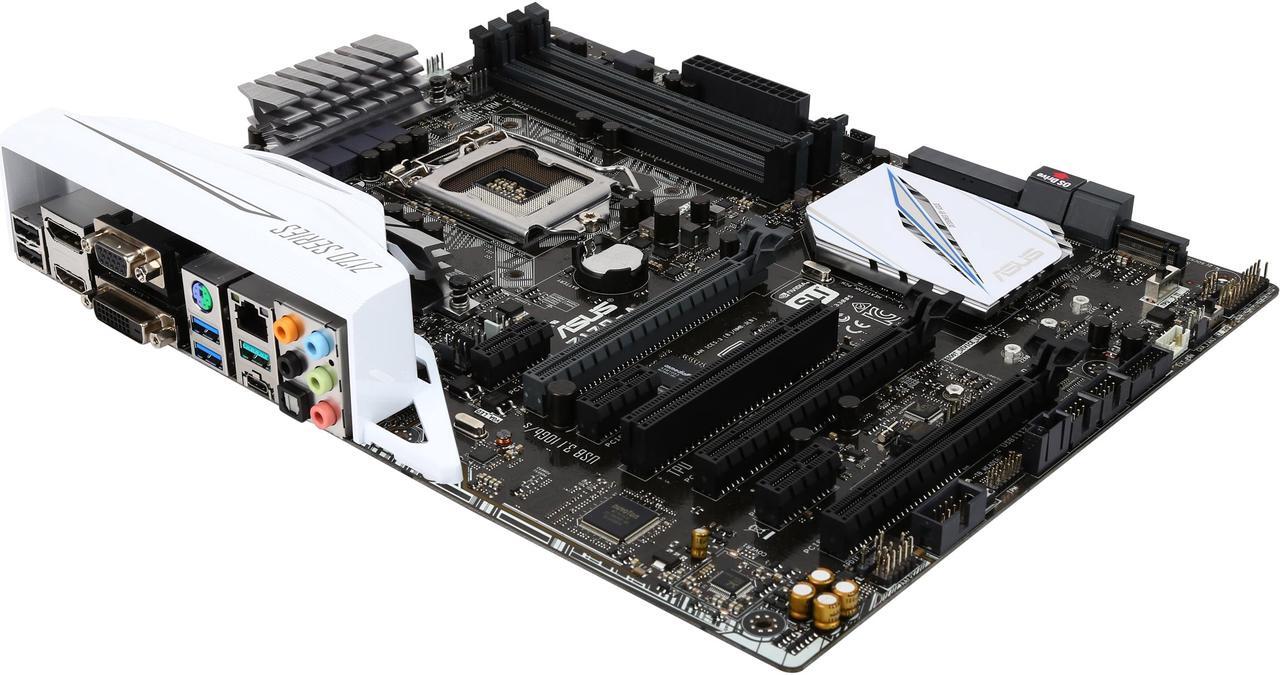

Main image of ASUS Z170-A LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

100%

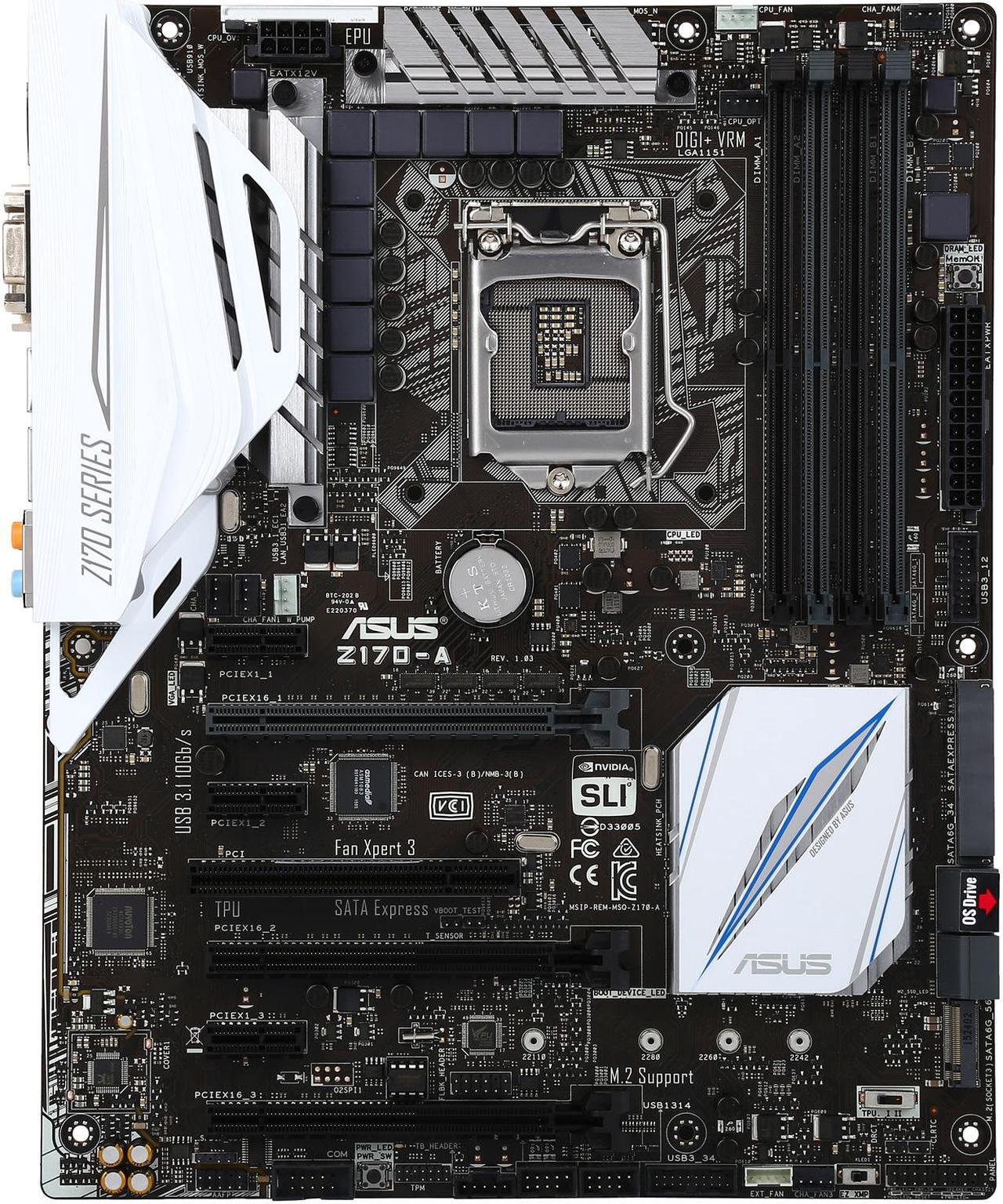

Alt view image 3 of 5 - ASUS Z170-A LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

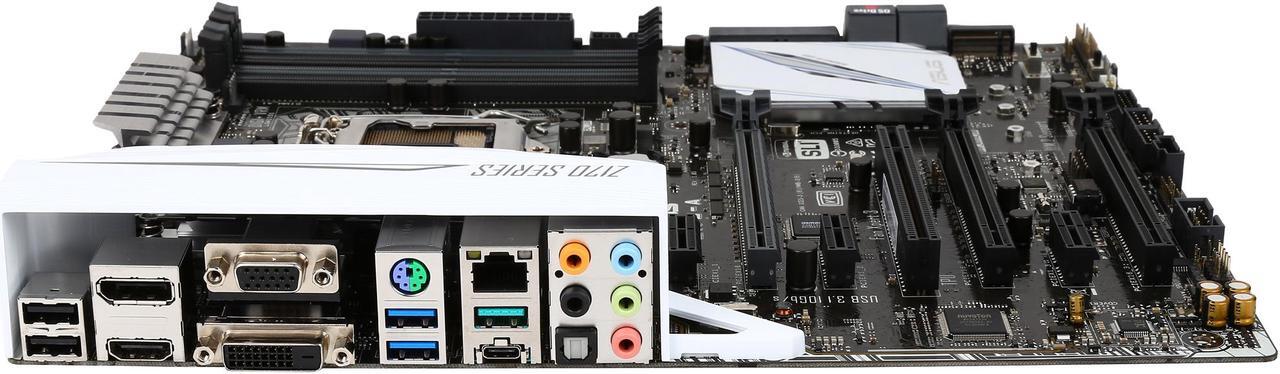

Alt view image 4 of 5 - ASUS Z170-A LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

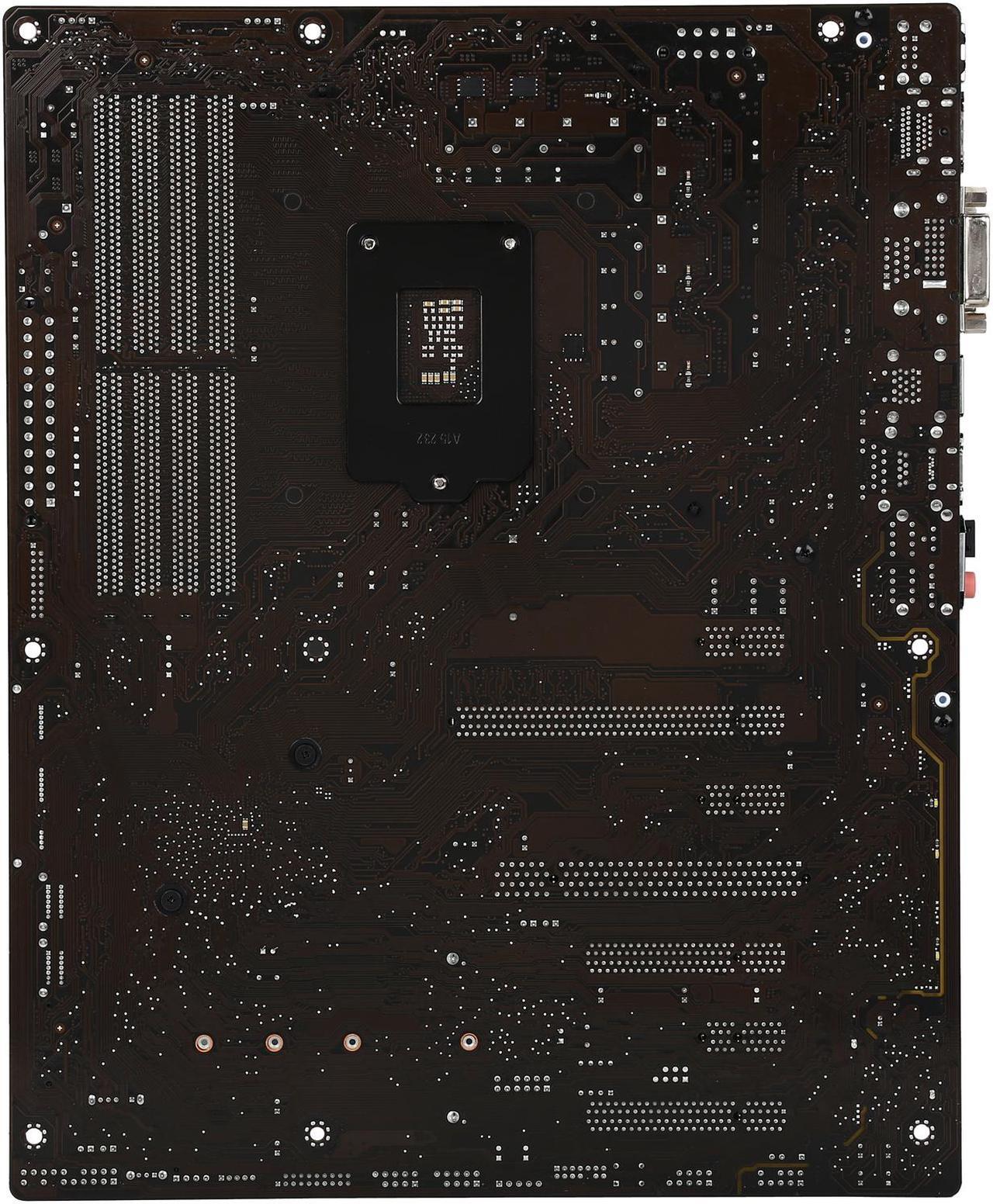

Alt view image 5 of 5 - ASUS Z170-A LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 6 of 5 - ASUS Z170-A LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

360^°

Customer images

Shop All ASUS Products | Visit Corn Electronics Store

ASUS Z170-A LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Name: ASUS Z170-A LGA 1151 ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813132566
Price: 122.53 USD
Availability: InStock

Used - Like New

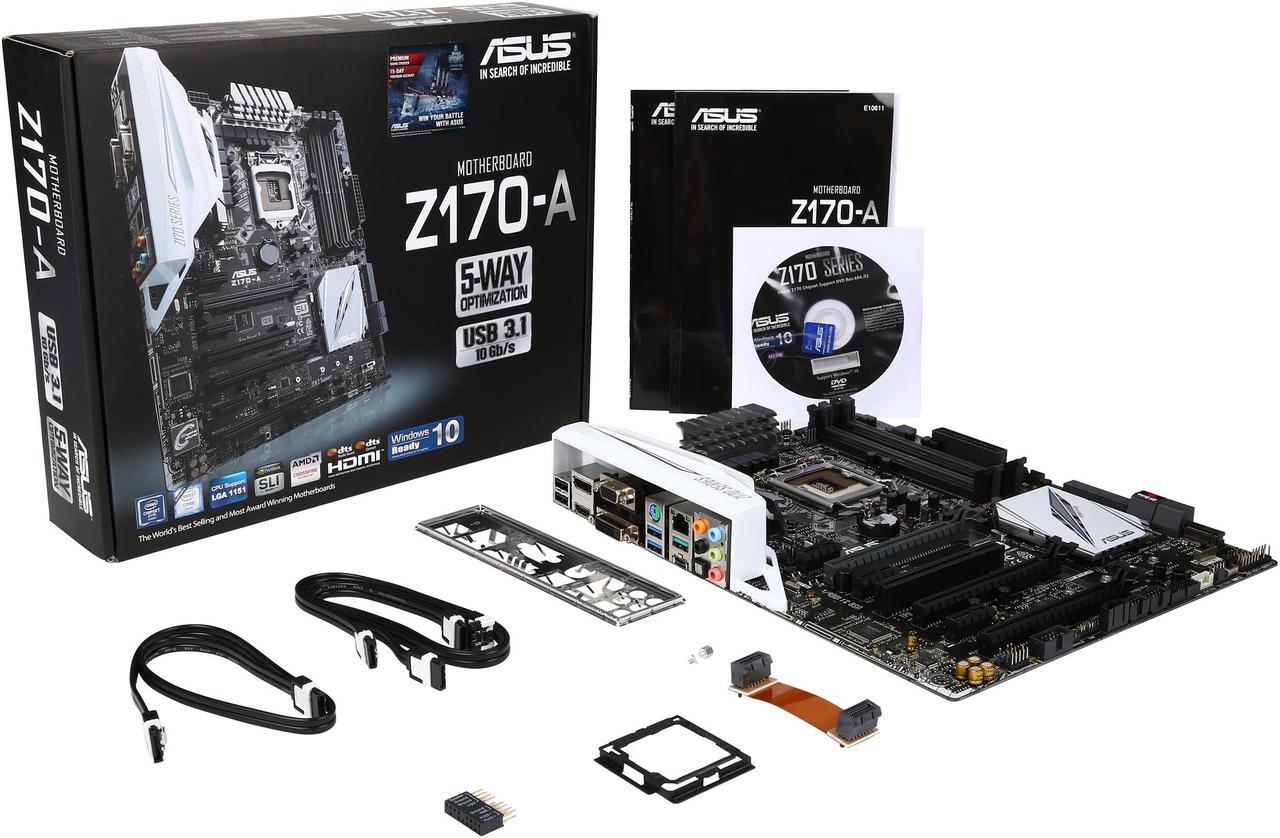

Comes with motherboard and IO shield! 100% Tested Well Before Shipping(Pins Included)! Please take the video while opening the box, otherwise we won't accept refund with bent pins.

Option: Z170-A

SABERTOOTH Z170 MARK 1
Z170 PRO GAMING
Z170-A
Z170-DELUXE
Z170-K
Z170-P
Z170-P D3
Z170I PRO GAMING

5-Way Optimization
ASUS Pro Clock Technology
Crystal Sound 2, Intel LAN and Turbo LAN
USB 3.1 onboard: One reversible Type-C port
5X Protection II

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Corn Electronics Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Pentium

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3400(O.C.)/ 3333/ 3200/ 3100/ 3000/ 2933/ 2800/ 2666/ 2600/ 2400*/ 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode) 1 x PCI Express 3.0/2.0 x16 slot* (max. at x4 mode, compatible with PCIe x1 and x4 devices) * The PCIe x16_3 slot shares bandwidth with SATA6G_56. The PCIe x16_3 is default set at x2 mode.
PCI Express x1	3 x PCI Express 3.0/2.0 x1 slots
PCI Slots	1 x PCI Slot

Serial ATA (SATA)	6 x SATA 6.0 Gb/s ports (gray, 2 from SATA Express)
SATA Express	1 x SATA Express port (compatible with 2 x SATA 6.0 Gb/s ports)
M.2	1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)* Supports PCIE RAID configurations via onboard M.2 and PCIex16_3. * M.2 shares SATA mode with SATA Express. Change this item before installing M.2 SATA devices.
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D
HDMI	1 x HDMI
RJ45	1 x RJ45
DisplayPort	1 x DisplayPort
USB 3.1	1 x USB 3.1/3.0/2.0 ports (teal blue, Type A) 1 x USB 3.1/3.0/2.0 ports (Type C)
USB 3.0	2 x USB 3.0/2.0 ports (blue)
USB 1.1/2.0	2 x USB 2.0 ports
S/PDIF Out	1 x Optical
Audio Ports	8-channel Audio I/O ports

Onboard USB	2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin) 2 x USB 2.0/1/1 connectors support additional 4 USB ports
Other Connectors	1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and 4-pin (PWM mode) CPU coolers control with auto detection support 1 x CPU OPT Fan connector (4-pin) 1 x Water Pump header (4-pin) 4 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin (PWM mode) coolers control 1 x Front panel audio connector (AAFP) 1 x BIOS Flashback connector 1 x S/PDIF out header 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support 1 x TPM connector 1 x COM port 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector 1 x System Panel (Q-Connector) 1 x MemOK! button 1 x Clear CMOS jumper 1 x DRCT (Direct Key) connector 1 x TPU switch (advanced two-stage adjustments) 1 x EZ XMP switch 1 x Power-on button 1 x 5-pin EXT_FAN (Extension Fan) connector

Model
Brand	ASUS
Model	Z170-A

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin

Item#: 9SIA4RE84G5072
