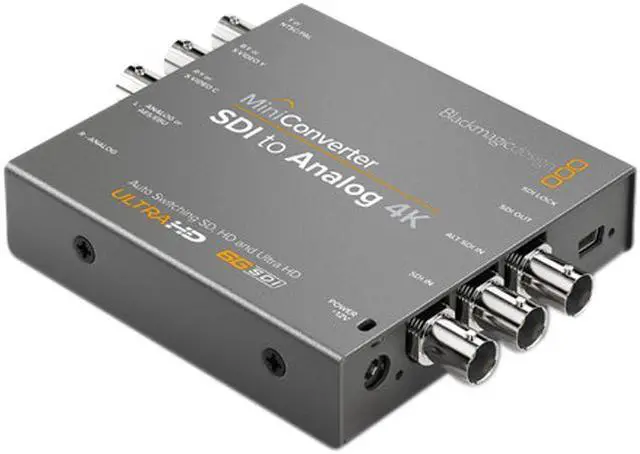

Blackmagic Design Mini Converter SDI To Analog 4K CONVMASA4K
- Single Link SD/HD/3G/6G-SDI Input
- Component, Composite, & S-Video Output
- Automatic Input Signal Detection
- 24-bit, 48 kHz Audio
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Blackmagic Design Pty. Ltd. CONVMASA4K
| Brand | Blackmagic Design |
|---|---|
| Series | Mini Converter |
| Model | CONVMASA4K |
| Format | SD Format Support 525/29.97 NTSC, 625/25 PAL HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30 2K Format Support 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25 4K Format Support 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24 Analog Format Support 625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30 |
|---|---|
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601. |
| SDI | SDI Video Rates SDI video connections are switchable between standard definition and high definition adn UHD SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI. |
|---|---|
| Digital Aduio | AES/EBU Digital Audio 2 channels of professional balanced digital with standard 1/4 inch jack connections. |
| Analog Aduio | Analog Audio 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Software | Software Control Mac OS X and Windows software upgrade via USB. Internal Software Upgrade Via included updater application. |
|---|
| System Requirements | Operating Systems Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later. Windows 7 or Windows 8. |
|---|
| Power Consumption | 8.04 Watts |
|---|---|
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Specification | Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing |
|---|
| Feature | Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video! Easily connect any analog equipment such as Betacam SP, VHS, and video monitors! |
|---|
| Package Content | Mini Converter SDI to Analog 4K Software CD 12V universal power supply with international socket adapters |
|---|
| First Listed on Newegg | October 05, 2018 |
|---|
