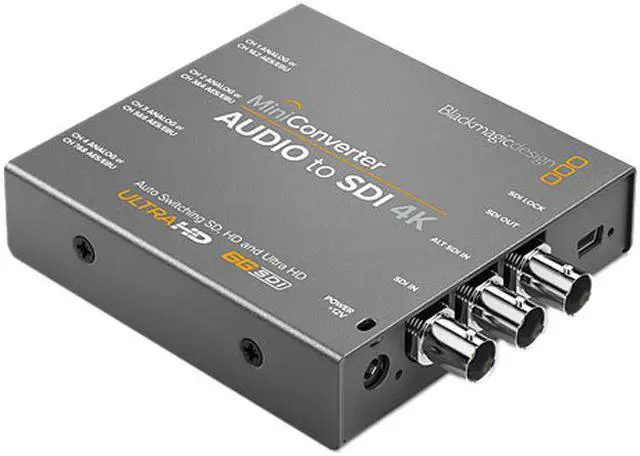

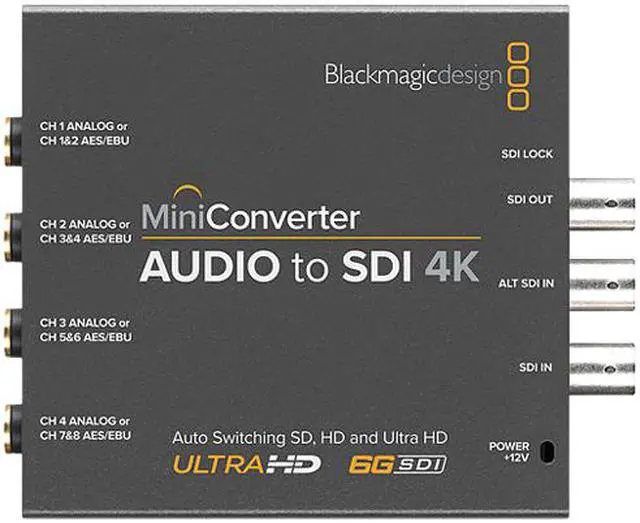

Blackmagic Design Mini Converter Audio to SDI 4K CONVMCAUDS4K
- Audio to SDI 4K
- SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the Blackmagic Design Pty. Ltd. CONVMCAUDS4K
| Brand | Blackmagic Design |
|---|---|
| Model | CONVMCAUDS4K |
| Converter Type | Audio to SDI 4K |
| Format | SDI Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24,2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30. |
|---|---|
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036 |
| Video Sampling | 4:2:2, 4:4:4 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| Color | SDI Color Precision: 4:2:2, 4:4:4 SDI Color Space: YUV, RGB |
| SDI | SDI Video Input: Switchable between SD, HD, 3G and 6G-SDI. SDI Video Output: Automatically matches the SD, HD, 3G and 6G-SDI video input. SDI Redundant Input: Automatically switches over if main SDI input is lost. |
|---|---|
| USB Port | Updates and Configuration: USB |
| Digital Aduio | 8 channels of professional balanced digital with standard 1/4 inch jack connections. |
| Analog Aduio | 4 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Other Connector | Multi Rate Support: Auto detection of 4K, UHD, 2K, HD or SD-SDI inputs. Reclocking: Yes |
| Software | Software Control: Mac OS X and Windows software upgrade via USB. Internal Software Upgrade: Via included updater application. |
|---|
| System Requirements | Operating Systems Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later. Windows 7 or Windows 8. |
|---|
| Power Consumption | 8.40 Watts |
|---|---|
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. Operational Voltage Range: 12V - 31V DC |
| Specification | SDI Video Rates: SDI video connections are switchable between standard definition and high definition. SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G-SDI. Settings Control: Mini Switches or USB software. Operating temperature: 0° to 40° C (32° to 104° F) Storage temperature: -20° to 60° C (-4° to 113° F) Relative Humidity: 0% to 90% non-condensing |
|---|
| Feature | Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters! |
|---|
| Dimensions | 4.52" x 3.63" x 0.9" |
|---|---|
| Weight | 7.61 oz |
| Package Content | Mini Converter Audio to SDI 4K 12V universal power supply with international socket adapters |
|---|
| First Listed on Newegg | August 05, 2015 |
|---|
