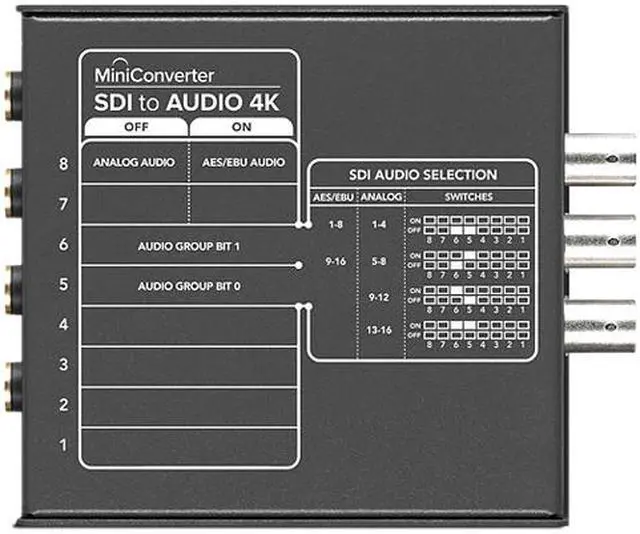

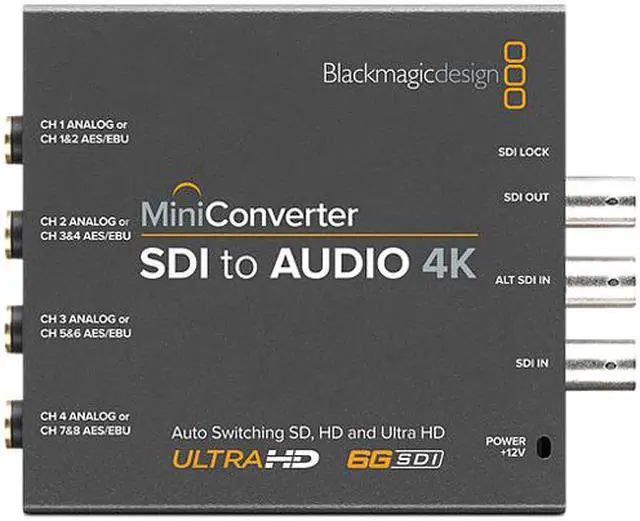

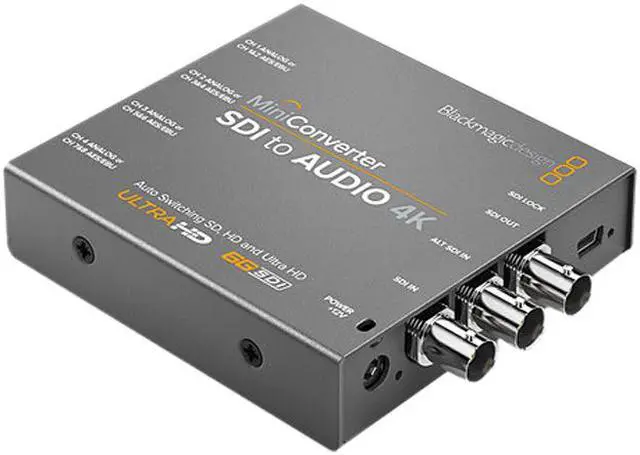

Blackmagic Design Mini Converter SDI to Audio 4K CONVMCSAUD4K
- SDI to Audio
- SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Blackmagic Design Pty. Ltd. CONVMCSAUD4K
| Brand | Blackmagic Design |
|---|---|
| Model | CONVMCSAUD4K |
| Converter Type | SDI to Audio |
| Format | SDI Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24,2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30. |
|---|---|
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036 |
| Video Sampling | 4:2:2, 4:4:4 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| Color | SDI Color Precision: 4:2:2, 4:4:4 SDI Color Space: YUV, RGB |
| SDI | SDI Video Input: Switchable between SD, HD, 3G and 6G-SDI. SDI Video Output: Automatically matches the SD, HD, 3G and 6G-SDI video input. SDI Redundant Input: Automatically switches over if main SDI input is lost. |
|---|---|
| USB Port | Updates and Configuration: USB |
| Digital Aduio | 8 channels of professional balanced digital with standard 1/4 inch jack connections. |
| Analog Aduio | 4 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Other Connector | Multi Rate Support: Auto detection of 4K, UHD, 2K, HD or SD-SDI inputs. Reclocking: Yes |
| Software | Software Control: Mac OS X and Windows software upgrade via USB. Internal Software Upgrade: Via included updater application. |
|---|
| System Requirements | Operating Systems Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later. Windows 7 or Windows 8. |
|---|
| Power Consumption | 5.52 Watts |
|---|---|
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. Operational Voltage Range: 12V - 31V DC |
| Specification | SDI Video Rates: SDI video connections are switchable between standard definition and high definition. SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G-SDI. Settings Control: Mini Switches or USB software. Operating temperature: 0° to 40° C (32° to 104° F) Storage temperature: -20° to 60° C (-4° to 113° F) Relative Humidity: 0% to 90% non-condensing |
|---|
| Feature | Mini Converter SDI to Audio 4K includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more! |
|---|
| Dimensions | 4.52" x 3.63" x 0.9" |
|---|---|
| Weight | 7.61 oz |
| Package Content | Mini Converter SDI to Audio 4K 12V universal power supply with international socket adapters |
|---|
| First Listed on Newegg | August 05, 2015 |
|---|
