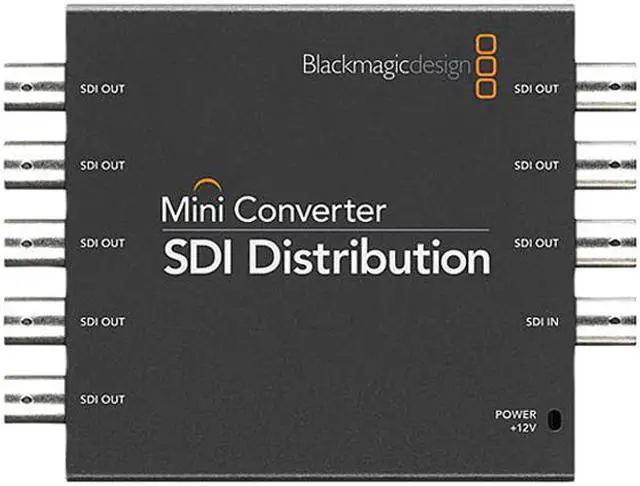

Blackmagic Design Mini Converter SDI Distribution CONVMSDIDA

Blackmagic Design CONVMSDIDA Switchable SD, HD and 3G SDI Distribution Amplifier Mini Converter. Ideal for connecting the same signal to several devices at once.
SDI distribution has an SD, HD and 3Gb/s auto switching input and provides 8 re-clocked outputs.
It even handles ASI.
It also supports ancillary data and embedded audio. Blackmagic Design Mini Converter Common Features: Auto Switching SD and HD. Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes.
A huge range of video standards are supported including: NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB. Redundant SDI Input. Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	Blackmagic Design
Model	CONVMSDIDA

Performance
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B and SMPTE 425M
Video Sampling	4:2:2 and 4:4:4
Audio Sampling	Television standard sample rate of 48 kHz and 24-bit
Color	SDI Color Precision: 4:2:2 and 4:4:4 SDI Color Space: YUV and RGB

Connection
SDI	SDI Video Inputs: 1 x SDI Video Input. Switchable between SD, HD and 3G-SDI. SDI Video Outputs: 8 outputs automatically match the SDI video input.

Compatibility
System Requirements	Mac 10.12 Sierra, Mac 10.13 High Sierra or later. Windows 8.1 or Windows 10.

Power
Power Consumption	4.80 Watts
Power Supply	+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Specification
Specification	Connections Multi Rate Support: Auto detection of SD, HD or 3G-SDI Reclocking: Yes Standards SD Video Standards: 525i59.94 NTSC, 625i50 PAL HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF SDI Video Rates: SDI video connections are switchable between SD, HD, and DCI 2K SDI Auto Switching: Automatically detects SD, HD or 3G-SDI ASI Support: Yes Power Requirements Operational Voltage Range: 12 - 31V DC Environmental Specifications Operating temperature: 0 to 40 celsius degree Storage temperature: -20 to 45 celsius degree Relative Humidity: 0% to 90% non-condensing

Feature
Feature	Now you can distribute a single SD or HD-SDI connection to up to 8 different SDI outputs at the same time! You get a true 3G-SDI design with fully re-clocked outputs and automatic switching between all SD and HD formats up to 1080p60. You also get support for all ASI, ancillary and embedded audio formats. Mini Converter SDI Distribution is the perfect SD/HD SDI distribution converter for when you don't need the cost of the Ultra HD model!

Dimensions & Weight
Dimensions	0.90" x 4.80" x 3.63"
Weight	0.53 lb.

Package Contents
Package Content	Mini Converter SDI Distribution 12V universal power supply with international socket adapters

Additional Information
First Listed on Newegg	October 05, 2018

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
