$583.99
Meet Your Seller

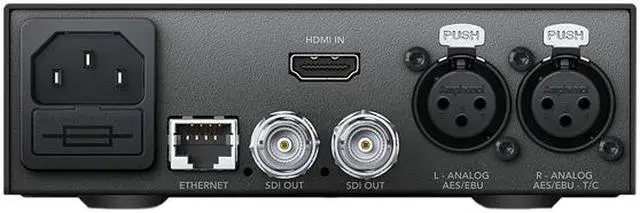

Blackmagic Design Teranex Mini HDMI to SDI 12G CONVNTRM/AB/HSDI
Used - Like New Product Type
- HDMI to SDI
- SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
- SDI Video Rates SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Blackmagic Design Pty. Ltd. CONVNTRM/AB/HSDI
| Brand | Blackmagic Design |
|---|---|
| Series | Teranex Mini |
| Model | CONVNTRM/AB/HSDI |
| Converter Type | HDMI to SDI |
| Format | SD Format Support 525/29.97 NTSC, 625/25 PAL. HD Format Support 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60. 4K Format Support 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60. HDMI Format Support 525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 |
|---|---|
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601 |
| Video Bit Rate/Bandwidth | SDI Video Rates SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI. |
| Video Sampling | SDI Video Sampling 4:2:2 and 4:4:4 |
| Audio Sampling | SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. |
| Color | SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV HDMI Color Space REC 601, REC 709 HDMI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| HDMI | 1 x HDMI 2.0 type A connector with support for 2160p60. |
|---|---|
| SDI | SDI Video Output Automatically matches the SD, HD and 12G-SDI HDMI video input. |
| Other Connector | XLR Audio Input 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input. AES/EBU Audio Output 4 channels professional 110O balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output. Multi Rate Support Automatic switching between SD/HD/2K and 4K. Updates and Configuration USB or Ethernet. Re-Clocking Yes |
| Software | Software Control Mac OS X and Windows software upgrade via USB or Ethernet. Internal Software Upgrade Via included updater application. |
|---|
| Power Consumption | 15 Watts |
|---|---|
| Power Supply | 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. |
| Specification | Format Conversion HD down conversion Setting Control Basic Settings Control: Mini Switches, USB and Ethernet via free software utility. Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons. Power Requirements Power Over Ethernet: Can be powered via 48V DC using PoE (power over ethernet). Operational Voltage Range: 90 - 240V AC Environmental Specifications Operating Temperature: 0°to 40°C (32° to 104°F) Storage Temperature: -20°to 60°C (-4° to 140°F) Relative Humidity: 0% to 90% non-condensing |
|---|
| Feature | Convert from HDMI to 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections. |
|---|
| Dimensions | 1.75" x 5.51" x 6.69" |
|---|---|
| Weight | 1.28 lbs. |
| Package Content | Teranex Mini - HDMI to SDI 12G Software SD Card |
|---|
| First Listed on Newegg | January 16, 2026 |
|---|
