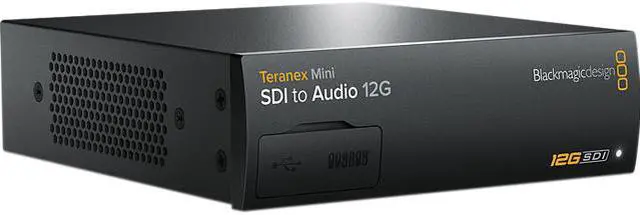

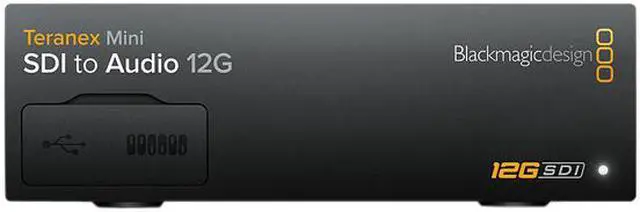

    Blackmagic Design Teranex Mini SDI to Audio 12G CONVNTRM/CA/SDIAU

    Be the first to review this product...
    • SDI to Audio
    • SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
    • SDI Video Rates
    • SDI video connections are auto switching between st
    +
    +
    Specs
    Reviews

    Learn more about the Blackmagic Design Pty. Ltd. CONVNTRM/CA/SDIAU

    Model
    Brand Blackmagic Design
    Series Teranex Mini
    Model CONVNTRM/CA/SDIAU
    Converter Type SDI to Audio
    Performance
    Format SD Format Support
    525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL

    HD Format Support
    1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

    2K Format Support
    2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.

    4K Format Support
    3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
    SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
    Video Bit Rate/Bandwidth SDI Video Rates
    SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.
    Video Sampling SDI Video Sampling
    4:2:2 and 4:4:4
    Audio Sampling SDI Audio Sampling
    Television standard sample rate of 48 kHz and 24-bit.
    Color SDI Color Precision
    YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

    SDI Color Space
    REC 601, REC 709

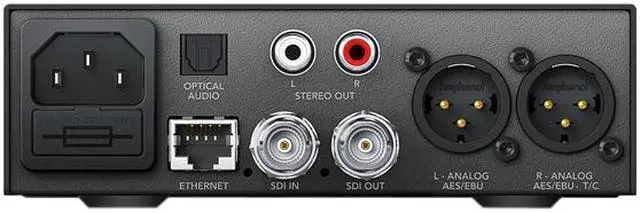

    Connection
    SDI SDI Video Input
    1 x 12G-SDI SD/HD/2K/4K auto switching.

    SDI Video Output
    1 x 12G-SDI loop output.
    Analog Aduio Analog Audio Output
    2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
    Other Connector Optical Audio Output
    S/PDIF Signal with TOSLINK Connector.

    AES/EBU Audio Output
    4 channels professional 110O balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.

    Multi Rate Support
    Automatic switching between SD/HD/2K and 4K.

    Updates and Configuration
    USB or Ethernet.

    Re-Clocking
    Yes
    Software
    Software Software Control
    Mac OS X and Windows software upgrade via USB or Ethernet.

    Internal Software Upgrade
    Via included updater application.
    Power
    Power Consumption 15 Watts
    Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
    Specification
    Specification Standards
    SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.

    Setting Control
    Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
    Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

    Power Requirements
    Power Over Ethernet: Can be powered via 48V DC using PoE (power over ethernet).
    Operational Voltage Range: 90 - 240V AC

    Environmental Specifications
    Operating Temperature: 0°to 40°C (32° to 104°F)
    Storage Temperature: -20°to 60°C (-4° to 140°F)
    Relative Humidity: 0% to 90% non-condensing
    Feature
    Feature De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.
    Dimensions & Weight
    Dimensions 1.75" x 5.51" x 6.69"
    Weight 1.33 lbs.
    Package Contents
    Package Content Teranex Mini - SDI to Audio 12G
    Software SD Card
