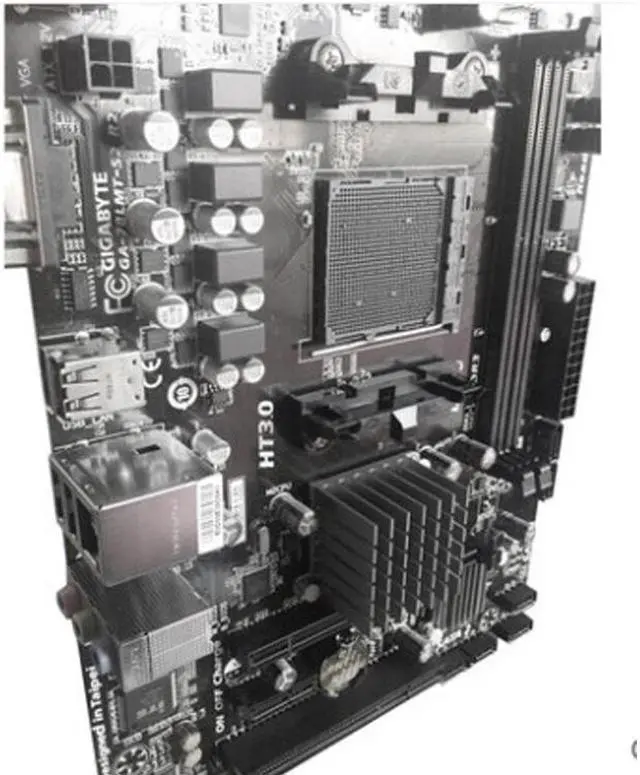

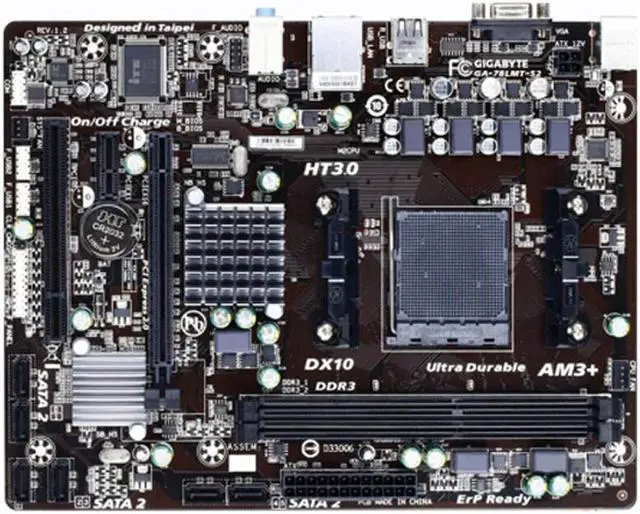

Gigabyte GA-78LMT-S2 R2 Motherboard CPU AMD AM3+ FX DDR3 SATA2 VGA GIGABIT LAN

CPU AM3+ Socket: Support for AMD AM3+ processor Support for AMD AM3 Phenom? II processor / AMD Athlon? II processor (Please refer "CPU Support List" for more information. ) Hyper Transport Bus Hyper
Transport? 3.0 Support up to 5200MT/s
Chipset North Bridge: AMD 760G
South Bridge: AMD SB710 Memory 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for 1333+ (O. C. )/1066 MHz memory modules (Please refer "Memory Support List" for more information. ) Onboard
Graphics North Bridge: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 Maximum shared memory of 1 GB Audio Realtek? ALC887 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel * To configure 7.1 -channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek? GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 standard. ) 1 x PCI slot
Storage Interface South Bridge: 6 x SATA 3Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 10, and JBOD
USB Chipset: 8 x USB 2.0 / 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 6 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0 / 1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 4 x USB 2.0 / 1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller iTE? I/O Controller Chip H/W Monitoring System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 32 Mbit flash Use of licensed AWARD BIOS PnP 1.0 a, DMI 2.0, SM BIOS 2.4, ACPI 1.0 b Unique Features Support for @BIOS Support for Auto Green Support for Download Center Support for Easy
Tune * Available functions in Easy
Tune may differ by motherboard model. Support for ON/OFF Charge Support for Q-Flash Support for Smart Recovery2 Support for Xpress BIOS Rescue Support for Xpress Install Bundle Software Norton? Internet Security (OEM version) Operating System Support for Windows 7/ XP Form Factor Micro ATX Form Factor; 24.4 cm x 18.8 cm
