How many cooling fans are supported ?

1 system fan and 1 cpu fan. Sys fan 2 & 3 headers are not installed. I expected more from Gigabyte than that.

Can the onboard video support 3 monitors?

The onboard video chipset supports display ports including 1 x D-Sub port, 1 x DVI-D port, and 1 x HDMI port. However, whether it supports three monitors simultaneously would depend on the capabilities of the integrated graphics of the CPU being used.

$78^.63

$98.87

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by HongnaNetwork

Top Rated

4.4 (150 seller ratings)

Shipped by HongnaNetwork

Best Sellers

Volcanic electron

Top Rated

4 (119 total ratings)

$81^.24
+ FREE SHIPPING

Alliance Group (USA)

4.4 (45 total ratings)

$182^.00
+ FREE SHIPPING

Meet Your Seller

HongnaNetwork

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

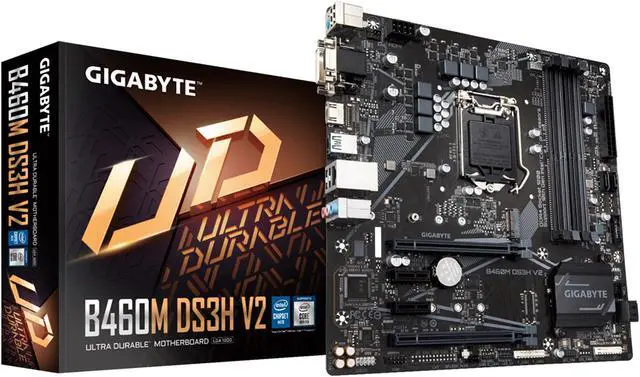

Main image of GIGABYTE B460M DS3H V2 (rev 1.0) LGA 1200 Intel B460 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 1

Alt view image 2 of 7 - GIGABYTE B460M DS3H V2 (rev 1.0) LGA 1200 Intel B460 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 1

Alt view image 3 of 7 - GIGABYTE B460M DS3H V2 (rev 1.0) LGA 1200 Intel B460 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 1

Alt view image 4 of 7 - GIGABYTE B460M DS3H V2 (rev 1.0) LGA 1200 Intel B460 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 1

Alt view image 5 of 7 - GIGABYTE B460M DS3H V2 (rev 1.0) LGA 1200 Intel B460 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 1

Alt view image 6 of 7 - GIGABYTE B460M DS3H V2 (rev 1.0) LGA 1200 Intel B460 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 1

Alt view image 7 of 7 - GIGABYTE B460M DS3H V2 (rev 1.0) LGA 1200 Intel B460 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 1

Customer images

Shop All GIGABYTE Products | Visit HongnaNetwork Store

GIGABYTE B460M DS3H V2 (rev 1.0) LGA 1200 Intel B460 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 1

(10)(4) Write a Review

Intel B460
Supports 10th Generation Intel Core processors
Supports Intel Pentium processors
Supports Intel Celeron processors
DDR4 2933 / 2666 / 2400 / 2133 (Intel Core i9 / i7 processors)
DDR4 2666 / 2400 / 2133 (Intel Core i5 / i3 / Pentium / Celeron processors)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (10)

Learn more about the GIGABYTE B460M DS3H V2 (rev 1.0)

Model
Brand	GIGABYTE
Model	B460M DS3H V2 (rev 1.0)

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Generation Intel Core processors Supports Intel Pentium processors Supports Intel Celeron processors

Chipsets
Chipset	Intel B460

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2933 / 2666 / 2400 / 2133 (Intel Core i9 / i7 processors) DDR4 2666 / 2400 / 2133 (Intel Core i5 / i3 / Pentium / Celeron processors)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	2 x PCI Express 3.0 x16
PCI Express x1	2 x PCI Express 3.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek Audio CODEC
Audio Channels	7.1 Channels* * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

Onboard LAN
LAN Chipset	Intel GbE LAN chip
Max LAN Speed	1Gbps

Rear Panel Ports

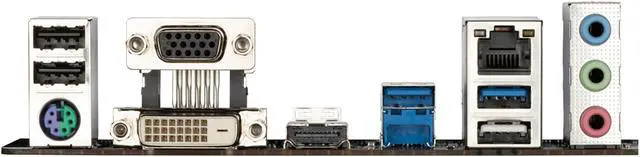

Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x serial port headers 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB

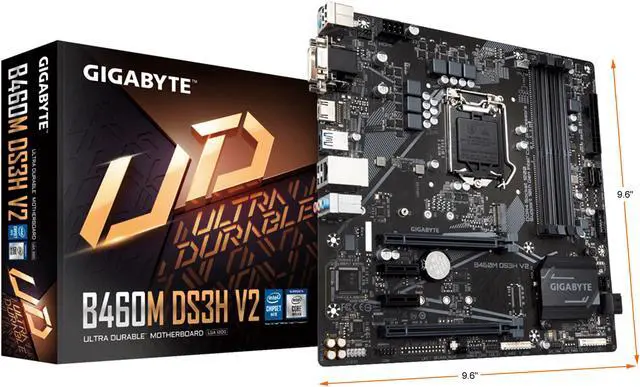

Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Q-Flash Plus Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit

Additional Information
First Listed on Newegg	September 25, 2023
