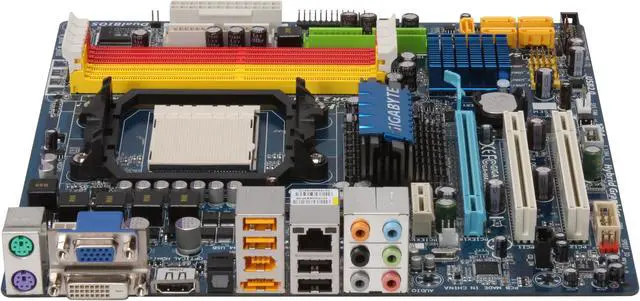

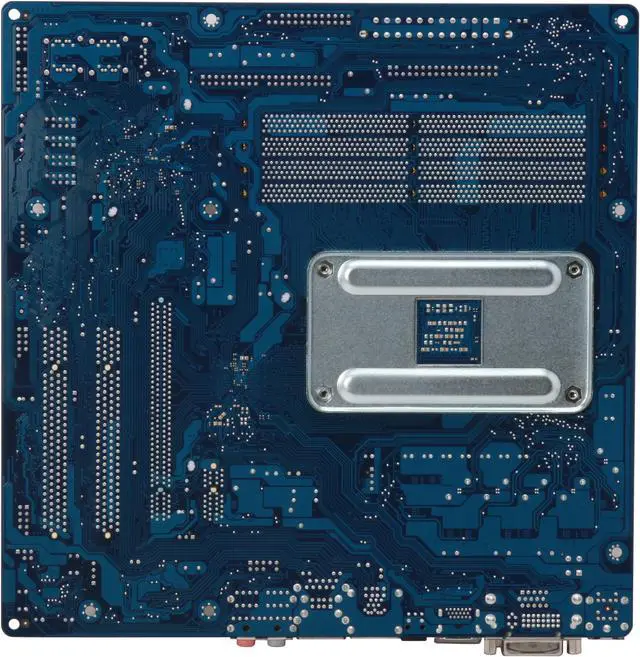

    GIGABYTE GA-MA78GM-US2H AM2+/AM2 AMD 780G HDMI Micro ATX AMD Motherboard

    Used - Good Product Type
    • AMD 780G
    • Athlon 64 FX / Athlon 64 X2 / Phenom / Phenom FX
    • DDR2 1200(O.C.)/1066
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-MA78GM-US2H

    Model
    Brand GIGABYTE
    Model GA-MA78GM-US2H
    Supported CPU
    CPU Socket Type AM2+/AM2
    CPU Type Athlon 64 FX / Athlon 64 X2 / Phenom / Phenom FX
    Chipsets
    Chipset AMD 780G
    South Bridge AMD SB700
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR2 1200(O.C.)/1066
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express 2.0 x16
    PCI Express x1 1 x PCI Express x1
    PCI Slots 2 x PCI Slots
    Storage Devices
    SATA RAID 0/1/10/JBOD
    Onboard Video
    Onboard Video Chipset ATI Radeon HD 3200
    Onboard Audio
    Audio Chipset Realtek ALC889A
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek 8111C
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
    PS/2 2
    Video Ports 1 x D-Sub + 1 x DVI-D
    (Note: The DVI-D port does not support D-Sub connection by adapter)
    HDMI 1 x HDMI
    (Note: Simultaneous output for DVI-D and HDMI is not supported)
    USB 1.1/2.0 4 x USB 2.0
    IEEE 1394 1 x IEEE 1394a
    eSATA 1 x eSATA 3Gb/s
    S/PDIF Out 1 x Optical
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 4 x USB 2.0/1.1 headers
    Onboard 1394 1 x 1394a
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 9.6"
    Power Pin 24 Pin
    Features
    Features Support for @BIOS
    Support for Q-Flash
    Support for Virtual Dual BIOS
    Support for Download Center
    Support for Xpress Install
    Support for Xpress Recovery2
    Support for EasyTune (Note 6)
    Support for Easy Energy Saver (Note 7)
    Support for Time Repare
    Support for Q-Share
    Packaging

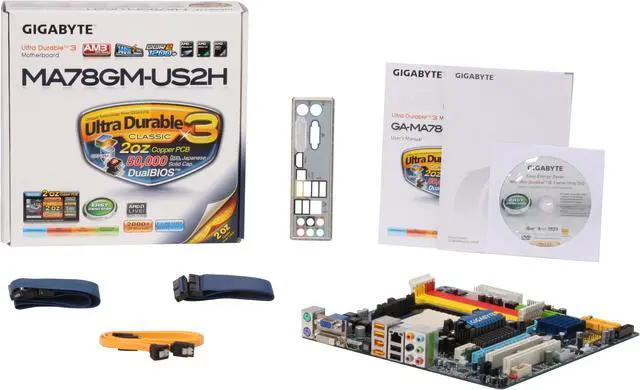

    Package Contents GA-MA78GM-US2H
    Driver Disk
    User Manual
    Rear I/O Panel Shield
    IDE/PATA Cable
    FDD Cable
    SATA Cable
