I use a D-Link DIR-655 router which is upstairs. Currently I have one cable running from router to one PC downstairs (others upstairs). I want to add a second PC downstairs, but do not want to add a second cable. I would like a second device downstairs to plug the current cable into it and then from that device place ethernet cables to each PC. A switch looks right, but I do not see a port on this DES-105 to plug-in the ethernet cable from the router. Am I not understanding the switch? I have read that I could add a second router to do what I want, but the switch looks easier if it would work?

A switch directs traffic on the same subnet (private LAN), so every port is on the same network. That is why it does not have a router port - routers go from one network to another. Switches have an advantage over hubs since switches specifically direct traffic to the attached network devices - hubs do not direct traffic and instead only multiply the packets and increase overhead. So what it sounds like you want to do is run a LAN cable from upstairs to port 1 (it could be another port number) of the switch and then plug your other computers in ports 2 and 3 (again it could be other port numbers).

Is the power adapter rated 110-120v or 110-240v?

Just looked on the power supply Rated 110-240v.

120^.44Dh

VAT-Inclusive Price

160.77Dh Shipping

Limit 99999 per customer.

Ships from United States.

Most customers receive within 9-17 days.

Add to wish list

Sold by BeachAudio

Top Rated

4.4 (8,536 seller ratings)

Shipped by BeachAudio

Best Sellers

Hot Deals 4 Less

Top Rated

4 (3,667 total ratings)

126^.11Dh
+ 208.95Dh Shipping

Newegg

153^.29Dh
+ 200.14Dh Shipping

BTE Outlet

3.5 (1,429 total ratings)

150^.37Dh
+ 367.27Dh Shipping

Meet Your Seller

BeachAudio

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

dlink;DGS-108;DGS-105/108 Manual - D-Link

dlink;DGS-105;DGS-105/108 Manual - D-Link

dlink;DGS-105;DGS-105/108 Manual - FTP Site - D-Link

Main image of D-Link 5-Port Gigabit Unmanaged Desktop Switch (DGS-105)

Alt view image 2 of 3 - D-Link 5-Port Gigabit Unmanaged Desktop Switch (DGS-105)

Alt view image 3 of 3 - D-Link 5-Port Gigabit Unmanaged Desktop Switch (DGS-105)

Shop All D-Link Products | Visit BeachAudio Store

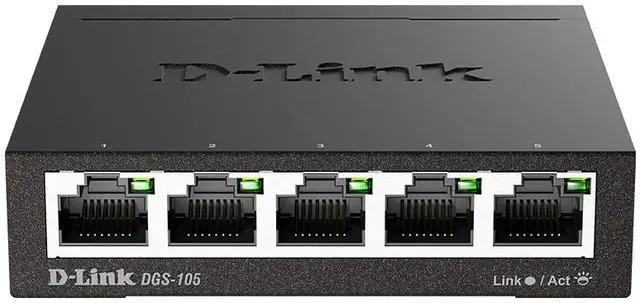

D-Link 5-Port Gigabit Unmanaged Desktop Switch (DGS-105)

(58) Write a Review

Class: 5-Port Gigabit

5-Port Fast Ethernet
5-Port Gigabit
8-Port Gigabit

5 GIGABIT PORTS: High-speed Gigabit ports allow you to connect up to 5 devices for fast file transfers and smooth media streaming. Plug and play with no configuration or software needed
DURABLE DESIGN AND RELIABLE: The DGS-105 packs full functionality and Gigabit performance into a sturdy metal design backed with a Limited Lifetime Coverage
QUALITY OF SERVICE: QoS support also enhances your network’s efficiency. QoS cleverly prioritizes network traffic so that time-sensitive data, such as VoIP or surveillance footage, are unaffected even during bursts of high-volume traffic. This allows for an all-around smoother, uninterrupted network experience
IGMP SNOOPING: Optimizes multicast data streams preventing unnecessary traffic and saving bandwidth
SILENT OPERATION: With its fanless design, the DGS-105 provides silent operation, perfect for noise-sensitive environments
PLUG-AND-PLAY: No configuration or software needed

Overview

Specs

Reviews (58)

D-Link 5-Port Gigabit Ethernet Desktop Switch, Unmanaged, Metal Chassis, QoS, D-Link Green

Model
Brand	D-Link
Model	DGS-105

Format & Standards
Format	Desktop/Wall Mount
Standards	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet (EEE)
Network Management Type	Unmanaged

Ports & Interface
Uplink Ports	None
Primary Ports	5 x RJ45
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	2K
Switching Method	Store and Forward
Jumbo Frames	9000 bytes

Details
Protocols	CSMA/CD
PoE	No
Layer	Layer 2 Only
Cabling	10BASE-T: UTP CAT 3, 4, 5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Topology	Star
LEDs	Per device: Power Per port: Link/Activity/Speed

Power Supply

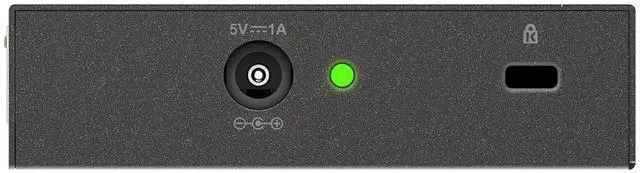

Power	External 5 V/1 A Level 'V' Power Adapter

Dimensions & Weight
Dimensions	3.9" x 3.8" x 1.1"
Weight	10.08 ounces

Environmental
Temperature	0°C to 50°C (32°F to 122°F)
Humidity	10% - 90%, Non-condensing

Features
Features	Switching Fabric: 10Gbps Packet Filtering/Forwarding Rates: Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port Gigabit Ethernet: 1,488,000 pps per port RAM Buffer: 128KB per device QoS: 4 Queues, strict mode Plug-n-Play Installation Dlink Green Eco-Friendly Power Design High reliability with Rugged Metal Case and High MTBF.

Manufacturer Warranty
Parts	Lifetime limited
Labor	Lifetime limited
