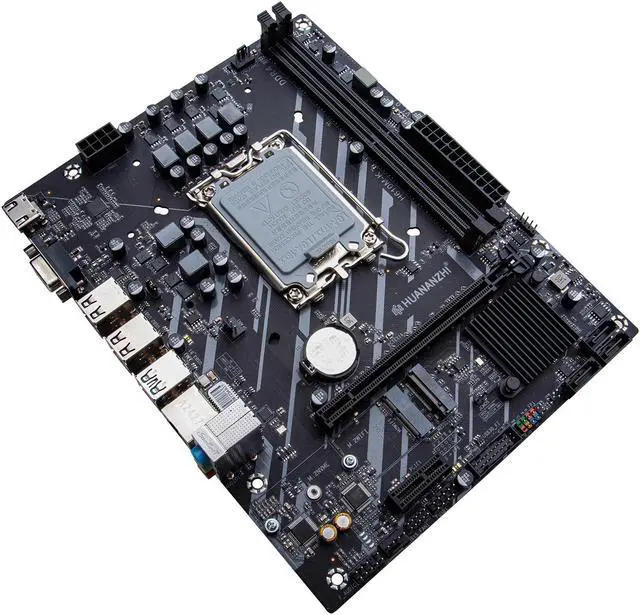

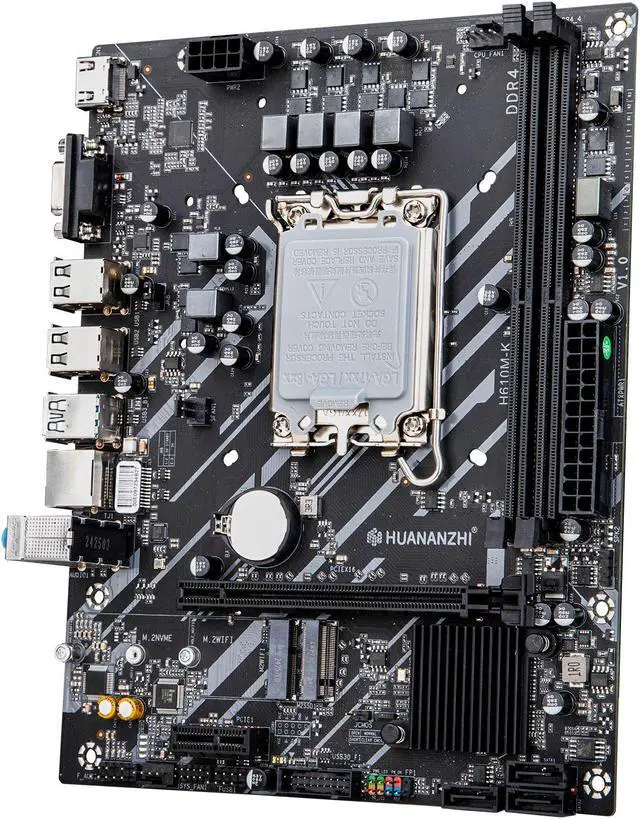

HUANANZHI H610M K MATX DDR4 Motherboard Support12 13 14 Gen H610 Intel LGA 1700 CPU 12100F 12400F 12490F 12600F 12700F 13600F
Limited time offer, ends12/07 By HUANANZHI Store
- · Support LGA1700 platform processor, support Intel12/13/14 generation Core processor
- · 2 DDR4 memory slots, supporting up to 64GB
- · 3 SATA3.0 6Gbps hard drive interfaces
- · 1 PCI Express4.0 x16 slot, 1 PCI Express3.0 x1 slot
- · 1 M.2 2280 NVME PCIE X4 3.0 32Gb/s, 1 M.2 WIFI (CNVi protocol)
- · 4 USB2.0 interfaces, 2 USB3.2 interfaces
- · 1 HDMI 2.0 interface, 1 VGA interface
Overview
Specs
Reviews (7)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Model: ModelHUANANZHI H610M-K
Chipset: Intel H610
CPU Socket: Support Intel LGA1700 Processors
Memory Slot: 2 x DDR4 Memory Slot
Memory Standard: Support dual channels DDR4 3200/2933/2666/2400MHz, Max Support 64GB
Storage Interface: 3xSATA 3.0 6Gbps
Expansion Slots: 1xPCIe 4.0 x16, 1xPCIe 3.0 x1
Expansion Interface: 1xM. 2 2280 NVME PCIE X4 3.0 32Gbps, 1xM. 2 WIFI (Support CNVi protocol)
Sound Track: Realtek High Definition Audio
Network Card: Realtek Gigabit Network Card
Power Interface: 24PIN+8PIN
FAN PIN: 1xCPU_FAN PIN, 2xSYS_FAN PIN
Power Supply: 6Phase Power Supply
PCB Layers: 4-layer PCB
Dimension: 215*165MM M-ATX
Rear Panel Interface: 2xUSB 3.2 5Gbps, 4xUSB 2.0 480Mbps, 1xNetwork Card Interface, 1x3-Hole Audio Interface, 1xVGA Interface, 1xHDMI 2.0 Interface
Front Panel Interface: 1xUSB 2.0 480Mbps PIN, 1xUSB 3.2 5Gbps PIN, 1xFront Audio PIN, 1xCOM PIN, 1xPower On/Restart PIN, 1xDebug PIN, 1xCMOS PIN, 1xBuzzer, 1xTPM 12-1 PIN, 1xBuzzer PIN
Support System: Windows10 Windows11(Supports incoming call boot/scheduled boot/network wake-up/network card startup)
BIOS: AMI UEFI BIOS
