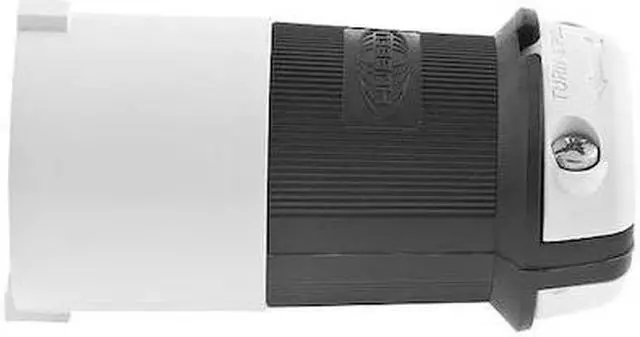

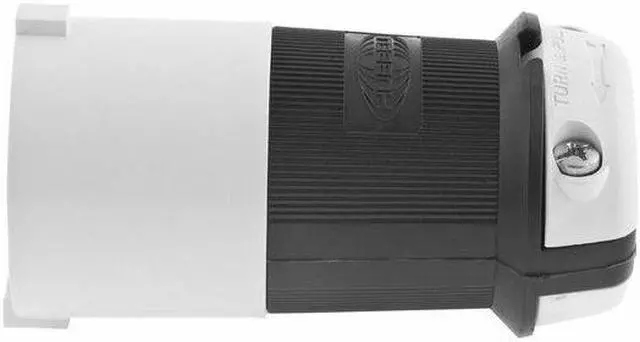

HUBBELL WIRING DEVICE-KELLEMS HBL2321S 20A Twist-Lock Plug 2P 3W 250VAC L6-20P

The HUBBELL 20A Twist-Lock Plug L6-20P is an industrial-grade locking plug rated for use in indoor, dry locations. It features a twist-lock mechanism with two poles and three wires, rated for 250V AC and up to 20 amps. The plug includes a shrouded design intended to reduce risk of blade deformation, and its ribbed nylon housing provides grip; resistant to impact and chemicals.

Key Features of the HUBBELL 20A Twist-Lock Plug L6-20P:

• Blade Material: Brass blades support conductivity.


• Housing Material: Nylon construction is resistant to chemicals and impact.


• Cord Size Compatibility: Accepts cord diameters from 0.325 in to 0.930 in; maximum wire size of 8 AWG, minimum wire size of 16 AWG.


• Temperature Range: Rated for operation between -40°C (without impact) and +75°C.


• Horsepower Rating: Suitable for connection with equipment rated up to 2 hp.


• Screw Terminals: Standard wiring style using screw terminals for wiring connections.


• Polarized & Grounded: Designed with polarization and grounding features for proper alignment during installation.


• IP Rating: IP20 rating suitable for dry, indoor environments only.


• Standards Compliance: Meets CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498 requirements.
