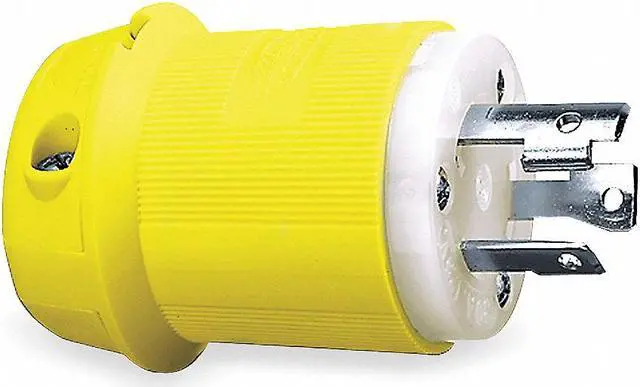

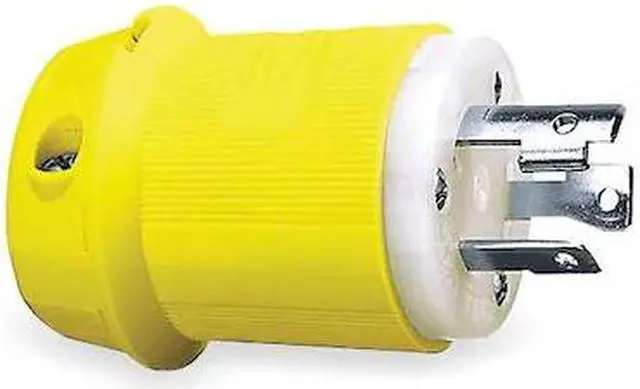

HUBBELL WIRING DEVICE-KELLEMS HBL26CM21 Locking Plug, L6-30P, 30 A, 250V AC,

The HUBBELL 30A Marine Twist-Lock Plug L6-30P is a locking plug suitable for use in industrial and marine environments. It features a ribbed nylon housing provides grip; material is rated as impact resistant and chemical resistant. The plug includes an integral dust shield covers the wiring chamber to protect from contaminants and includes a cord grip designed to help manage strain on terminations.

Key Features of the HUBBELL 30A Marine Twist-Lock Plug L6-30P:

• Amperage/Voltage Rating: Rated for 30 A at 250V AC with single phase operation


• Cord Accommodation: Accepts all listed portable cords ranging from 0.360" to 0.930" diameter (#16 AWG to #8 AWG wire size)


• Material Construction: Ribbed nylon housing; nickel-plated brass blades


• Resistance Properties: Rated as corrosion resistant, chemical resistant, and impact resistant


• Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use


• NEMA Configuration: L6-30P; polarized and grounded design


• Screw Terminals: Standard wiring style with screw terminal connections


• Standards Compliance: UL 498 Listed, CSA C22.2 No.42 Certified, Federal Specification W-C-596 compliant


• Dielectric Strength & Performance: Withstands minimum of 2,000V dielectric voltage; current interrupting at full rated current; IP20 rating for moisture resistance
