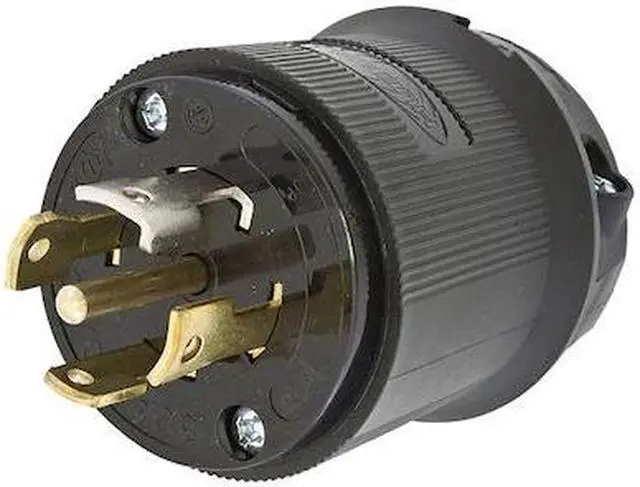

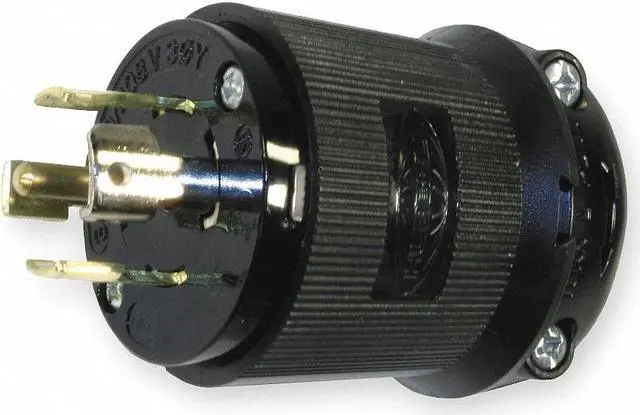

HUBBELL WIRING DEVICE-KELLEMS HBL2811BK Locking Plug, L21-30P, 30 A, 120/208V

The HUBBELL 30A Locking Plug L21-30P is a four-pole, five-wire locking plug intended for use in industrial settings where a locking plug is specified. It features a black ribbed nylon housing that provides impact and chemical resistance, with a ribbed nylon construction. The clear, funnel-shaped wire entry assists with wire termination, while an integral dust shield helps prevent contaminants from entering the wiring chamber.

Key Features of the HUBBELL 30A Locking Plug L21-30P:

• Amperage/Voltage: Rated for 30 A and 120/208V AC three-phase power


• NEMA Configuration: L21-30P (4 poles, 5 wires)


• Housing Material: Ribbed nylon construction offers impact and chemical resistance


• Cord Range: Accepts cords from 0.350" to 1.150" diameter; accommodates #16 AWG to #8 AWG stranded copper wire


• Cord Grip Design: reduces strain on wire terminations


• Wire Connection Type: screw terminals with funnel-shaped entry


• Dust Shield: includes an integral dust shield


• Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use


• Standards Compliance: Certified to UL 498, CSA C22.2 No.42, Federal Specification W-C-596


• IP Rating: IP20 suitable for indoor dry locations unless protected by additional means
