Technical Information
Storage Capacity: 240 GB
Encryption Standard: 256-bit
Drive Performance
Maximum Read Transfer Rate: 500 MB/s
Maximum Write Transfer Rate: 260 MB/s
Interfaces/Ports
Drive Interface: SATA
Drive Interface Standard: SATA/600
Physical Characteristics
Drive Type: Internal
Form Factor: 2.5"
Height: 0.3"
Weight (Approximate): 2.89 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: WEEE

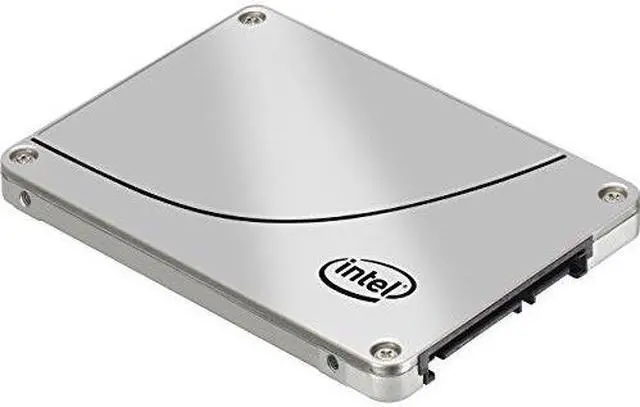

The Intel SSD DC S3510 Series delivers excellent performance and Quality of Service combined with high reliability for Serial Advanced Technology Attachment (SATA)-based computers in capacities of 80GB, 120GB, 240GB, 480GB, 800GB, 1.2TB and 1.6TB in a 2.5-inch form factor.
By combining 16nm NAND Flash Memory technology with SATA 6Gb/s interface support, the Intel SSD DC S3510 Series delivers Sequential Read speeds of up to 500 MB/s and Sequential Write speeds of up to 460 MB/s. The Intel SSD DC S3510 Series also delivers Random 4k Read speeds of up to 68,000 IOPS and Random 4K Write speeds of up to 20,000 IOPS, and Quality of Service of 500 µs for random 4KB reads measured at a queue depth of 1.
The industry-standard 2.5-inch form factors enable interchangeability with existing hard disk drives (HDDs) and native SATA HDD drop-in replacement with the enhanced performance, reliability, ruggedness, and power savings offered by an SSD.
Learn more about the Intel SSDSC2BB240G601
Model
Brand
Intel
Series
DC S3510
Model
SSDSC2BB240G601
Part Number
SSDSC2BB240G601
Details
Form Factor
2.5"
Capacity
240GB
Memory Components
MLC
Interface
SATA III
Performance
Max Sequential Read
up to 500 MB/s
Max Sequential Write
up to 260 MB/s
4KB Random Read
Up to 68,000 IOPS
4KB Random Write
Up to 20,000 IOPS
Read Latency
55 µs
Write Latency
66 µs
Features
Features
Optimized Data Center Endurance Demanding applications require highly reliable storage coupled with consistent performance. The IntelR SSD DC Family for SATA offers a full range of endurance and performance levels1, designed to meet the needs of your data center workloads. Additionally, the Intel SSD DC S3510 with .3 full DWD is optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
Stress-Free Data Protection All of the products in the Intel SSD DC Family for SATA protect data with full end-to-end data protection, 256-bit encryption Advanced Encryption Standard (AES) technology, sophisticated error protection schemes, and enhanced power loss and thermal monitoring features.
High Reliability - Low Total Cost of Ownership Intel SSDs are known industry wide for quality and reliability. The Intel SSD DC Family for SATA is engineered to reduce downtime as a result of storage-related failures and designed to meet an Annualized Failure Rate (AFR)2 of 0.44%. The Intel SSD DC Family for SATA significantly reduces Total Cost of Ownership (TCO)3. Held to the highest validation standards, the Intel SSD DC Family for SATA is analyzed in more than 5,000 unique tests and is fully supported with Intel's 5-year limited warranty and customer support.
Power-Efficient Performance The Intel SSD DC Family for SATA accelerates data center performance with read-write throughput speeds up to 550/5201 megabytes per second (MB/s) and 4K random read-write input/output operations per second (IOPs) up to 85,000/45,0001. Applications benefit from 55 µs typical latency with max read latencies4 of 500 µs 99.9%5 of the time. Combining performance with low typical active power (less than 6.9 watts1,6), the Intel SSD DC Family for SATA improves data center efficiency with superior quality of service, reduced energy costs, and is ideal for server or application upgrades.
