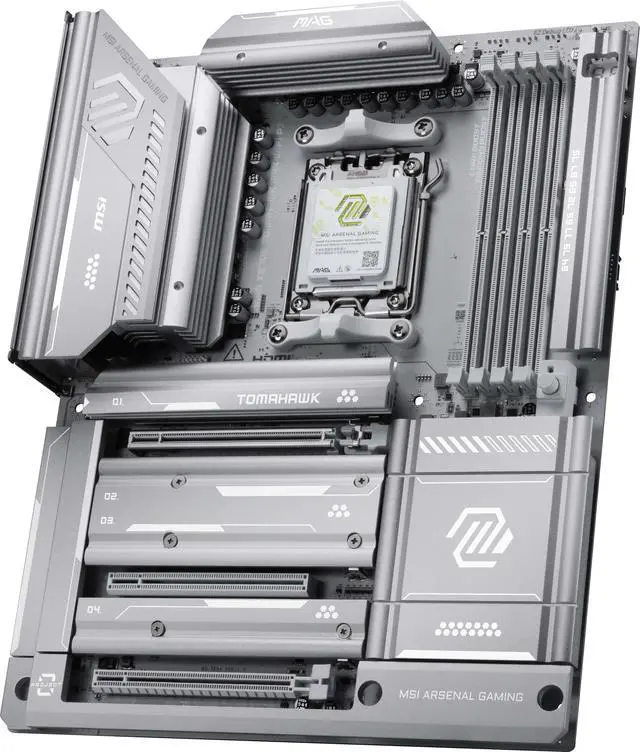

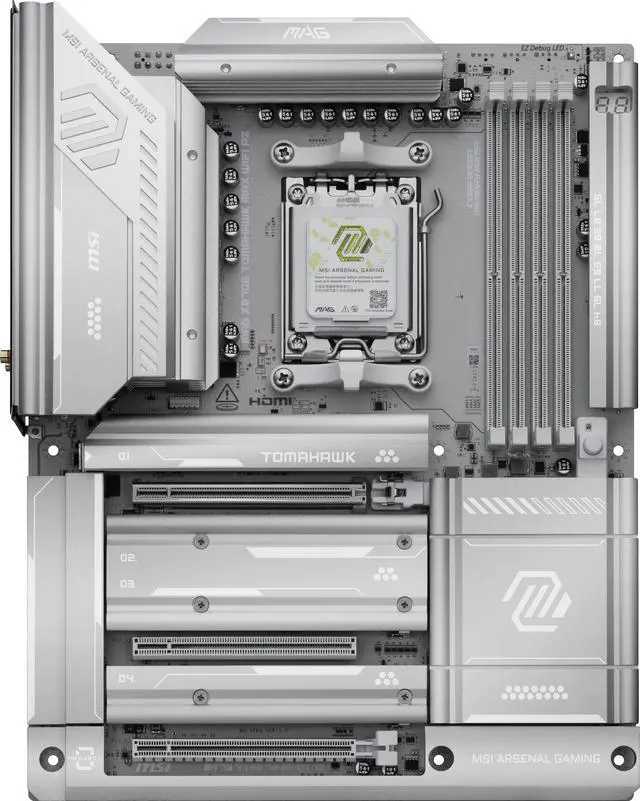

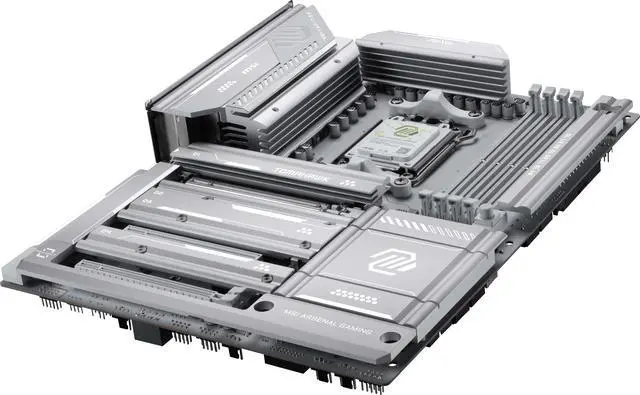

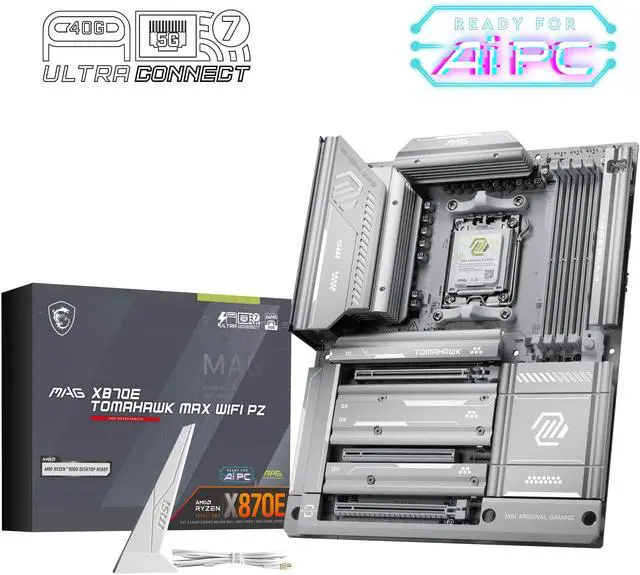

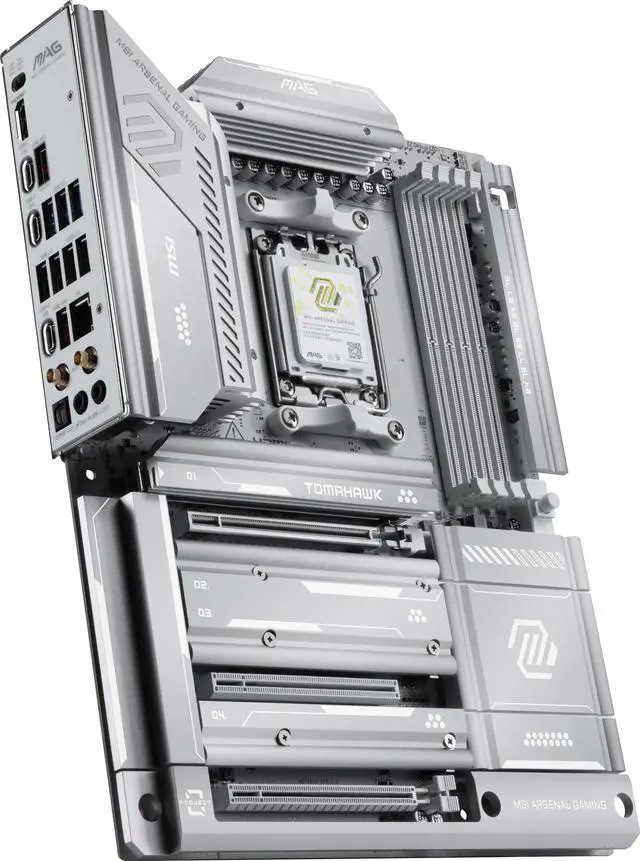

MSI MAG X870E TOMAHAWK MAX WIFI PZ AM5 AMD X870E Back Connect Motherboard, SATA 6Gb/s M.2 DDR5 Wi-Fi 7 5G LAN ATX Motherboards

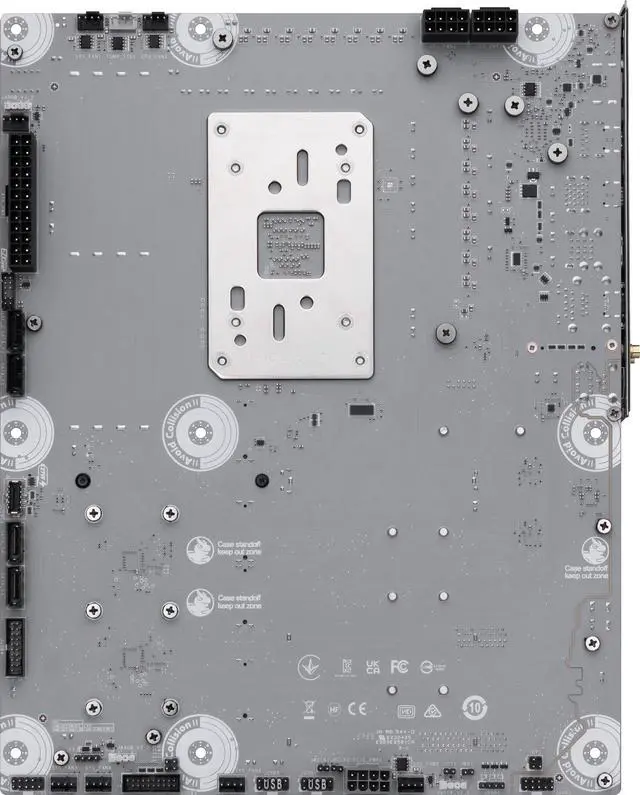

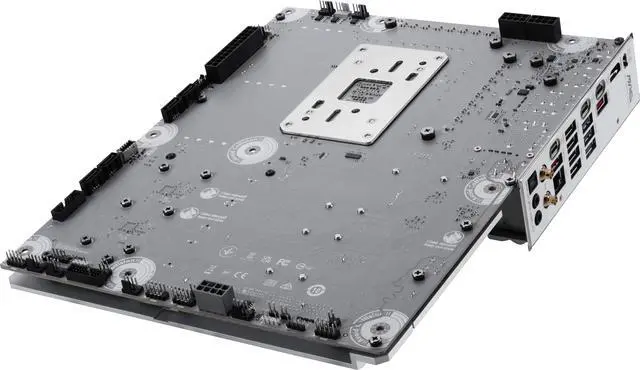

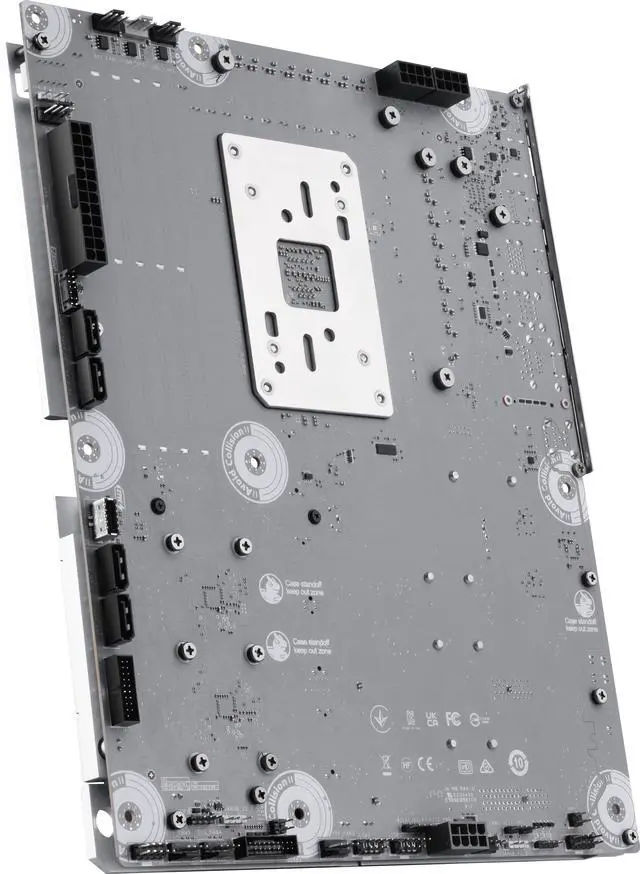

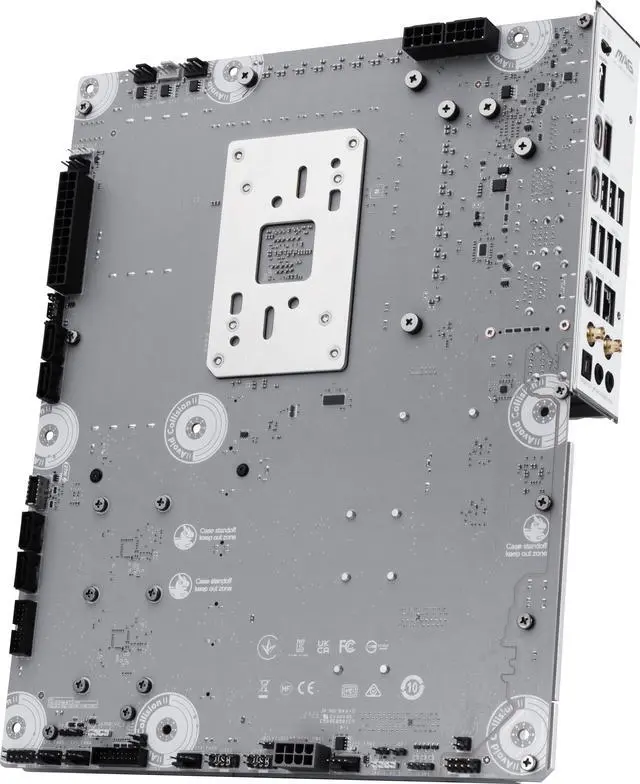

- Back-Connect Design: Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management.
- 64MB BIOS: A larger BIOS ROM capacity allows the motherboard to support
- next-level CPU upgrades with better compatibility.
- OC Engine: With the clock generator, the OC Engine technology releases the
- maximum power of CPU.
- Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
- EZ PCIe Release A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
- EZ M.2 Shield Frozr II: The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier.
- Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance.
- Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
- maximum transfer speed.
- 5G Network Solution: Featuring premium 5G LAN to deliver better network experience.
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI MAG X870E TOMAHAWK MAX WIFI PZ
| Brand | MSI |
|---|---|
| Model | MAG X870E TOMAHAWK MAX WIFI PZ |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8333 / DDR5 8400 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports CUDIMM, Clock Driver bypass mode only |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot - Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) - Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) - Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|---|---|
| PCI Express x4 | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI Express x1 | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_1 slot (From CPU) - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot (From CPU) - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) - Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) *The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors. **USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4. |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series processors. *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors. |
| Audio Chipset | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
|---|---|
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 5Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

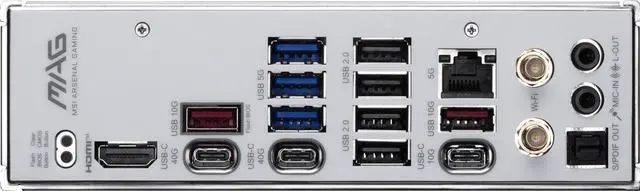

| Back I/O Ports | 1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 2 x USB 3.2 Gen 2x2 Type-C / 3 x USB 3.2 Gen 1 Type-A / 4 x USB 2.0/1.1 |
|---|
| Onboard USB | 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 20Gbps Type C ports |
|---|---|
| Other Connectors | 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 6 x System Fan 1 x EZ Conn-header (JAF_2) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 2 x Direct OC Jumper (JBCLK) |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) |
| First Listed on Newegg | November 06, 2025 |
|---|
