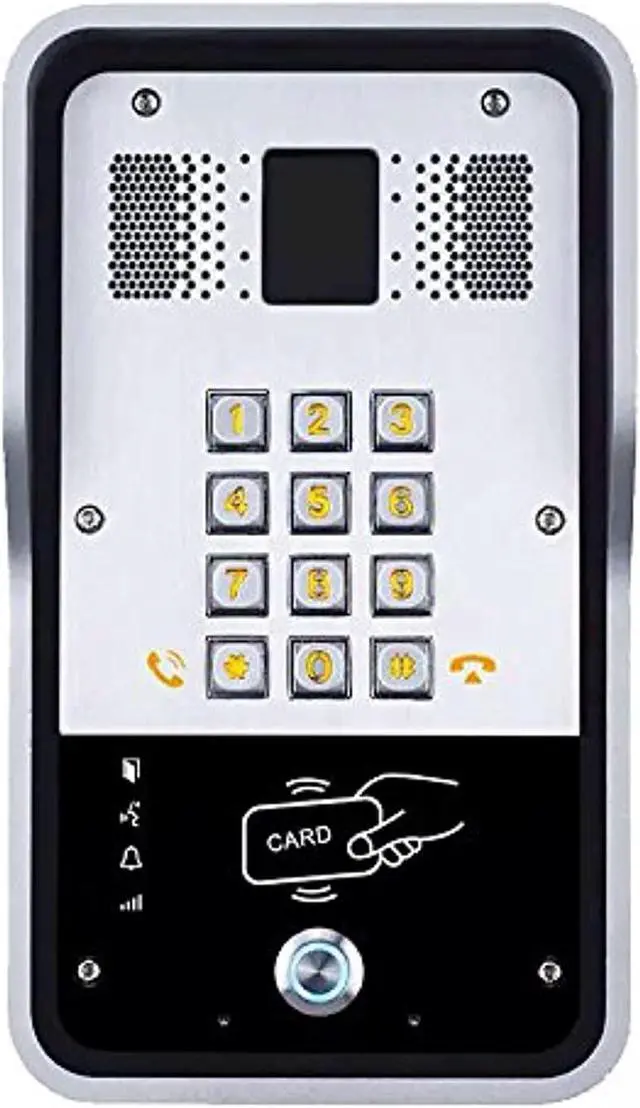

fanvil i31s video door phone

The design of i31S IP Video Door phone are based on experience and knowledge of Fanvil IP phone development. i31S are using standard IP/RTP/RTSP protocol for voice transmission and enjoy the advantages of full range of compatibility. i31S have a variety of enterprise-? level features and compatible with lots of major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc. The i31S IP Video door phone is designed for operation in outdoor conditions. The robust mechanical construction offers protective coverage rating against dust and water (IP65). The i31S is economical devices with triple function (All-in-1) Access control by call, code and RFID card.

Wall amount model and Buried Wall model is optional 3 ways for door opening PoE IP65 & IK10 HD Voice & RFID & RTSP 1 DSS Key +Key pad -40~70C 3W Speaker w/ Noise Reduction Highlights Two high sensitive microphones with echo cancellation and reduction of background noise 3 W Speaker for loud environments Water, dust and tamperproof. IP65 and IK10 certified Backlit keyboard for telephone calls and opening of the door Tamper switch Night vision color camera, viewing angle 120 Integrated electrical switch relay for door control All in ONEadoor access, intercom and paging service Protocol IP 2.0 ( RFC3261)
Buttons Number of buttons: 1
Number of keypads: Optional
Audio Microphone: 2
Loudspeaker: 3 W Noise Reduction ( NR) Audio steam Codec G. 711, G. 729, G. 722, etc Camera View angle 120 ( H), 109 ( V) IR Night Vision Video stream Codec H. 263, H. 263+, H. 264 Resolution CIF, QCIF, VGA, 4 CIF, 720 P ( HD) RFID Card reader Supported cards EMa4100, MIFARE one, NFC Interface Power supply 12 V+ 15%/1 A DC or Po E POE 802.3 af ( Class 0 a 12.95 W) 48 V/380m A LAN 10/100 BASEa TX s Autoa MDIX, RJa45 Relay outputs NC/ NO Contacts, MAX 30 V/1 A AC/ DC Active relay output 12 V/700m A DC Input two Input detect ports Output (2 relays) two output control ports Mechanical Housing material Aluminum alloy Operating temperature range -40
