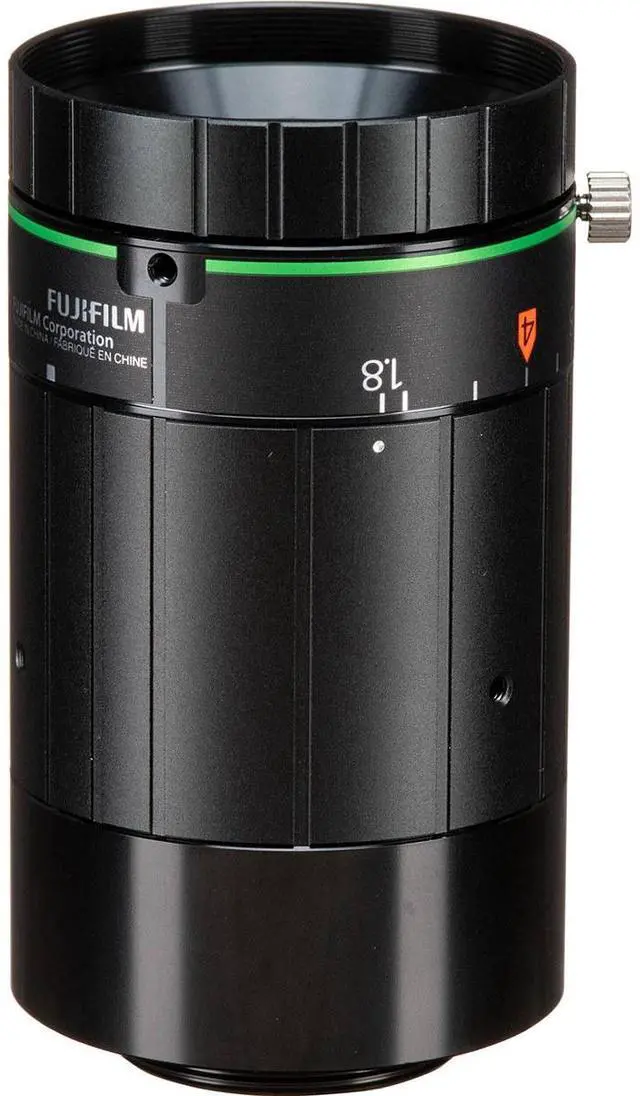

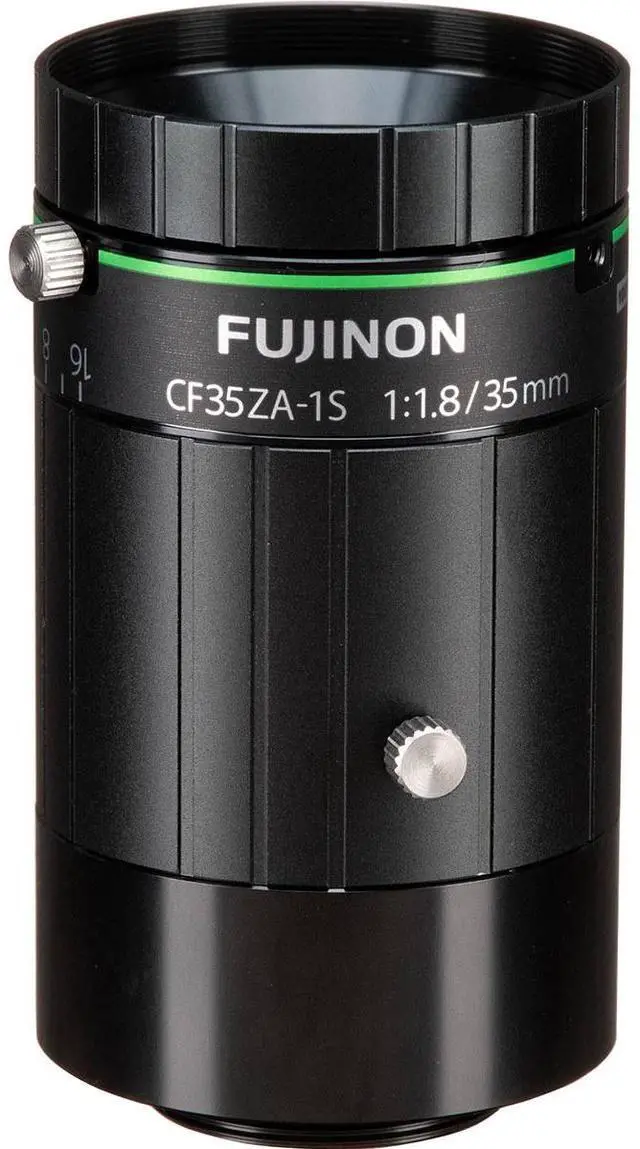

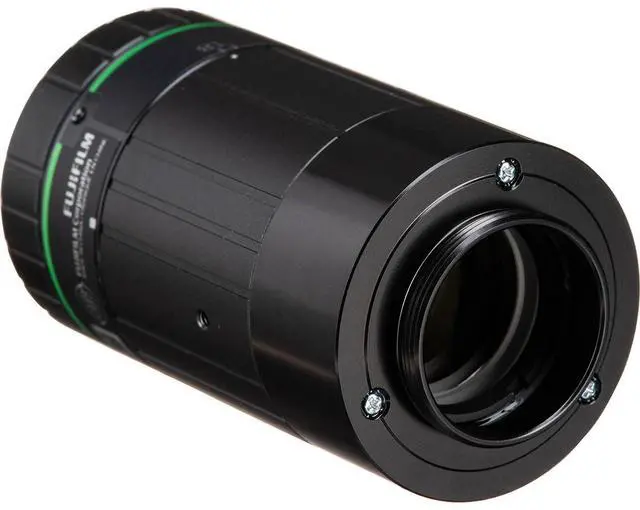

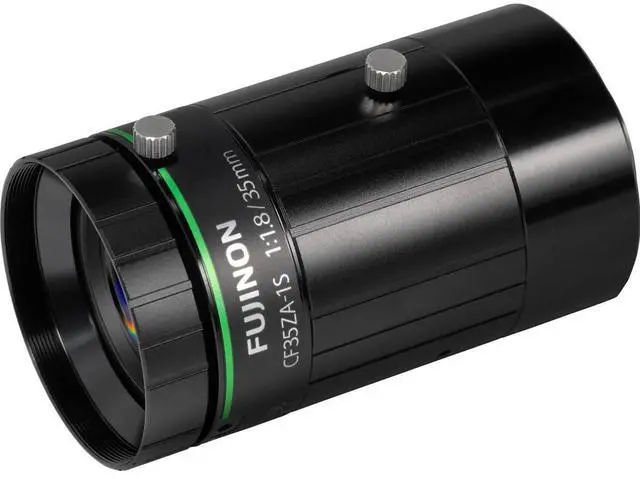

Fujinon CF35ZA-1S 1.1" 35mm f/1.8 Manual Iris C-Mount Lens, 2.5 Microm Pixel Pitch

An exceptional addition to the Fujinon CF-ZA-1S series, this 1.1" 35mm f/ 1.8 Manual Iris C-Mount Lens with a 2.5 Microm Pixel Pitch is designed to support large, high-resolution sensors. This lens is capable of handling a 1.1" type sensor with a 2.5 micro m pixel pitch, equivalent to a remarkable 23 mega-pixels. The lens boasts a relative illumination of over 90%, ensuring a clear, high-quality image from the center to the peripheral area. This is achieved through Fujifilm's original optical design, which balances relative illumination and the chief ray angle (CRA) to deliver bright, clear images across the entire field of view.

The lens is particularly effective when using the F4 F-Stop, a common preference among users. Unlike other lenses that require correction treatment to balance light and shade, the CF-ZA-1S series maintains uniform illumination across the entire image, resulting in a high-quality, low-noise image. This makes it an ideal choice for tasks requiring high reliability, such as inspections. The lens also features Fujinon's unique "4D High Resolution" technology, which maintains consistent high resolution from the image center to the peripheral area. This technology prevents the decline of resolution that can occur due to shooting distance or F-Stop changes, ensuring high-resolution images under various settings and photographic conditions.

The lens is designed to maximize camera performance, supporting a 1.1" type sensor and 3.45 m pixel pitch, equivalent to 12 mega-pixels. It is particularly compatible with IMX253 ( 1.1" type) and IMX255 (1" type) sensors, and is prepared to support next-generation sensors as they become more sensitive. Fujifilm's high-precision assembly technology and original detector work to restrain unilateral bokeh and single flaws. The lens also features Fujifilm's patented "vibration-resistance and impact-resistance" mechanical structure design, ensuring high resolution even under conditions of robot vision and 3D scanning. The compact design of this lens, with an outer diameter of 39mm, contributes to space-saving, making it a perfect fit for Machine Vision cameras that support large sensors.

The lens also features an internal mechanical focus, ensuring the overall length of the lens remains constant when focused. Additional features include three positioning holes for iris and focus fixation on the lens body, an indication sign showing the optimal focus position when the subject is 50cm apart, and an "anti-separation structure" on the knob of the iris and focusing screw for added security. Each lens is also printed with a QR code for easy quality management tracking. In summary, this Fujinon CF-ZA-1S 1.1" 35mm f/ 1.8 Manual Iris C-Mount Lens with a 2.5 Microm Pixel Pitch offers superior performance, high resolution, and exceptional reliability, making it an excellent choice for professional photographers and videographers.
