High-Capacity Video Recording: With a powerful 320 Mbps throughput, the Camius 16-Channel NVR ensures smooth recording of up to 16 cameras, delivering ultra-clear 4K footage without missing a frame.
Seamless Remote Access: Control and monitor your security system anytime, anywhere with the NVR remote access capabilities, supported by an intuitive mobile app and browser interface.
Camius 16 Channel NVR IPVAULT2320PR specifications
| IP channels (video input) |
16 |
| PoE ports |
16 RJ45 ports support Power Over Ethernet (PoE) for easy IP camera connection |
| Video output (to add a monitor/TV for live view) |
3 video outputs : HDMI1 for a primary monitor (4K), HDMI2 for a secondary monitor (1080P), 1 VGA |
| Bandwidth |
320 Mbps |
| Frames (FPS) |
12MP: 30fps, 8MP: 120fps, 4MP: 240fps 2MP: 480fps |
| Compression Format |
Audio: G.711A/ G.711U, Video: H.264/H.265/H.264+/H.265+ |
| Network Protocols |
RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP, Onvif (profile S/G/T) |
| Cloud |
Upload pictures or video files (RF, AVI, MP4) to your Dropbox or Google Drive |
| Alerts |
Buzzer, Recording, Post Recording, Show Message, Send Email, Upload picture or video to FTP, cloud |
| Smart AI Motion Detection |
detect vehicles, pedestrians, sound, humans, and perimeter intrusions for accurate security alerts |
| Deterrence & Siren |
Supported with Camius 4K spotlight IP cameras |
| Display Split view |
4 / 9 / 12 / 16 / 6 / 8 / 10 / 10-1 / 13 / 13-1 / 14 |
| Storage |
2 Internal SATA ports (max. capacity14TB each), 1 e-SATA port for an external hard drive (max 14TB) |
| Reset |
Via network, button |
| Multiple Video Ouputs |
4K HDMI for the main monitor, 1080p HDMI for the spot monitor, 1080p VGA |
| Remote Access |
Software for PC, Mac, iPhone/Android Phone (CAMIUS VIEW), web browser view |
| Ethernet |
2 RJ45 ports for fast network connectivity. |
| USB |
Front USB 2.0, rear USB 3.0 & USB 2.0 for versatile connectivity. |
| Audio I/O |
1 input & 1 output for audio recording and playback. |
| RS485 |
1 interface for device communication. |
| Alarms |
16 inputs & 1 output for comprehensive alarm system integration. |
Outdoor Security Cameras
Camius 5MP PoE camera captures 2K video at 2880×1620 resolution and 30fps with a 1/2.7 inches Progressive CMOS Image Sensor. It features a 3.6mm lens, offering a 91° horizontal, 46° vertical, and 110° diagonal field of view, built-in microphone, and 100ft night vision for low-light color images. Its durable white metal enclosure is perfect for outdoor use in harsh weather, making it ideal for high-quality surveillance.
Dome Security Camera
The ultimate solution for high-quality surveillance. This dome security camera delivers 2K video resolution (2880×1620) at 30fps. Its 2.8mm super wide-angle lens provides a 110° view, ensuring no detail is missed. Equipped with a built-in microphone for audio recording, the 2K Dome Camera (IRIS528R) offers superior image and audio quality, making it perfect for monitoring entrances, lobbies, hallways, and retail spaces.
Transform your security setup with the state-of-the-art 16 Channel NVR
With its sleek 16-port built-in power-over-ethernet interface, installing your surveillance cameras has never been simpler or quicker. Say goodbye to confusing configurations - our NVR recorder effortlessly assigns each Camius IP camera a unique IP address, making your life easier.
Camius 2K security cameras produce super HD 2K video 2880 x 1620 at full 30 frames (fps)
Flexible Subscription Free Recording Options for Enhanced Security

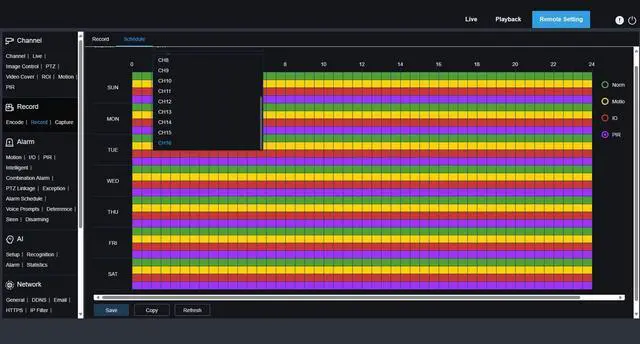

The Camius NVR offers flexible recording options, allowing you to choose between motion-based, continuous, or scheduled recording to suit your security needs. Customize recording schedules for each camera to optimize storage and ensure important events are always captured.

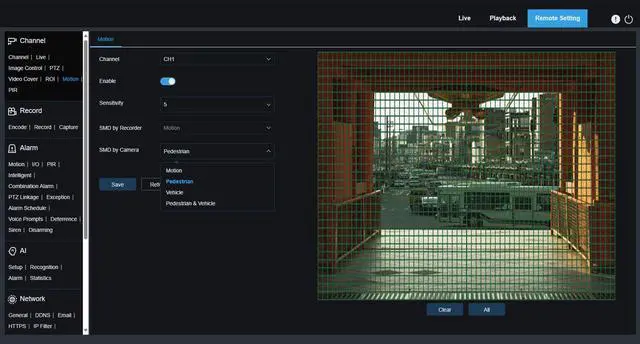

Smart Motion & Sound Detection
With Camius NVR, you can keep an eye on your home or business with ease. Enjoy advanced motion detection that can monitor and record all activity. Choose from motion targets not only as video motion but as Pedestrian, Vehicle, or both. Plus, turn on motion detection recording and alarms with just a few clicks.
But wait, there's more! With the Intelligent mode, you can also enable Sound Detection. Get instant alerts when loud noises occur near your camera, and keep your home or business safe and secure. So, why wait? Upgrade to Camius NVR today and experience the ultimate in home and business protection!

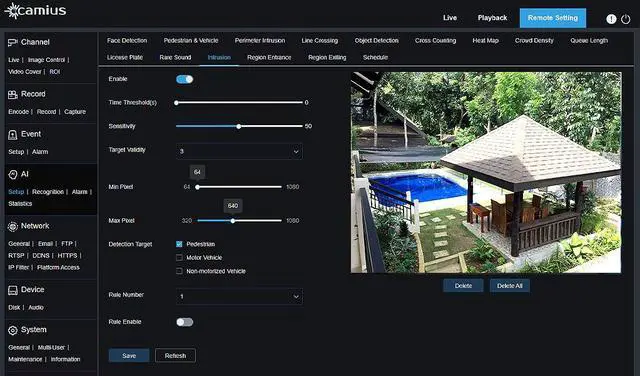

Perimeter Intrusion, Line Crossing detection
Say goodbye to traditional video motion detection and hello to cutting-edge AI analysis. Our Camius PoE NVR recorders provide you with unparalleled security, allowing you to create custom zones to detect movement patterns, locations and more. With just one click, you can activate AI detection to receive precise reports and analytics. The best part? Our advanced system will instantly trigger recording, email, or push notifications, so you always stay informed. Plus, you can watch recorded videos with a special color and tag. Invest in the future of home security with Camius NVR system.
AI-Driven Smart Detection
Enhance your security with built-in AI features that offer advanced motion, human, and vehicle detection for precise event alerts and recordings.
Wake up to peace of mind with our advanced NVR!
Stay informed and in control with a variety of alarm options, including:
- Convenient email notifications
- Instant push notifications directly to your smartphone
- NVR buzzer sound
- A clear and concise message displayed on both a connected screen and in the NVR's web browser view
And that's not all! Our system also offers custom actions triggered by events like detection or exceptions, such as no space on disk, disk error, or video loss. Record important events up to 5 minutes after they occur, and even store your recordings in the cloud using either Dropbox or Google Drive. Stay protected and informed with our cutting-edge security system
Camius Wired Camera Security System For Business With 24/7 Recording For Months With Expandable Storage
Whether you want continuous coverage or prefer motion-triggered recording, we got you covered. Our NVR supports 2 internal and one external high-capacity hard drives, ensuring you have plenty of space to store all your footage.
Starting with pre-installed hard drive and expandable up to a whopping 42 TB, you can trust that your recordings are safely stored for the long haul, you can customize your recording schedule to suit your unique needs. So whether you are a professional installer, run a business, or own a sprawling property, Camius has got you covered
Web Browser Compatibility
Access and manage your Camius NVR system directly from any major web browser without the need for additional software.
VMS Integration
Seamlessly integrate with third-party Video Management Software (VMS) for enhanced system control and scalability.
Camius View App
Monitor your cameras in real-time and manage settings remotely with the user-friendly Camius View mobile app.
P2P Connection
Easily access your Camius NVR system remotely through a secure peer to peer connection, without needing complex network setup, Doesn't require registration using email for complete privacy
Advanced Notifications
Stay informed with instant email and push notifications, as well as automated uploads to FTP for efficient event management.
Plug-n-play easy setup IP camera system
Unleash the power of surveillance with the all-new 16-channel NVR Recorder! The hassle-free setup process is made possible with its built-in power-over-ethernet switch - simply plug in your camera and you're good to go. Keep an eye on your PoE power consumption with ease by simply selecting the PoE Power tab. Experience seamless monitoring like never before with this cutting-edge NVR Recorder.
24/7 Surveillance Recording & Live View
Looking for a hassle-free surveillance solution that won't break the bank? Look no further than the Camius PoE surveillance NVR camera kit! With a built-in hard drive, you can enjoy uninterrupted, continuous recording with all your cameras - no monthly fees or subscription required. Store all your footage locally on your own recorder and never miss a moment of the action. Plus, you can even set up motion-triggered recording and seamlessly upload footage to your choice of Cloud service, whether it's Dropbox or Google Drive. Get peace of mind with the ultimate surveillance solution, only with Camius!
Upgradable Storage
Protect Your Home and Business with Our 4K Professional Security Camera NVR Recorder. Never miss a moment with our upgradable storage 4K NVR. With the ability to fit two internal SATA hard drives, each with a massive 10TB capacity, you'll have all the storage space you need. Plus, our network video recorder also comes with an e-SATA port, allowing you to connect an external hard drive with a maximum 10TB capacity, giving you even more storage options. Get peace of mind knowing your security is in good hands.
NDAA Compliant cameras
Protect your privacy with Camius - the security system you can trust! Our US-based team of experts is always ready to assist you with any questions. Submit your support request on our website or give us a call from 9am to 5pm PST, Monday to Friday.
Experience peace of mind with Camius - your cameras are only accessible to the accounts you create and secure with passwords. And with our innovative technology, your security footage is stored safely on your hard drive, not in the cloud.
Stay secure with Camius - even while using the essential P2P method for connection, your system remains protected behind your password and inaccessible to others. Plus, our cameras are NDAA compliant and designed for high-risk applications where privacy and reliability are essential. Invest in the best for your security needs with Camius.
Camius 16 Outdoor Cameras Surveillance NVR system delivers super HD 2K video and audio in addition to Sound (in Intelligent Mode), Human & Vehicle Detection, Cross Counting Detection, and more in AI mode with analytics and reports. In addition, the 16 Channel NVR with the highest recording bandwidth will satisfy any business owner's security requirements. You can add up to 30TB of internal and external storage to this advanced NVR surveillance system to have weeks or months of recorded footage.
Plug-N-Play Power-over-Ethernet 16 Port NVR
The 16 Channel NVR has a 16-port built-in power-over-ethernet interface that makes the surveillance camera installation easy and fast. In addition, the network video recorder assigns a unique IP address to Camius IP cameras. As a result, users do not require a complicated camera configuration.
Advanced Network Video Recorder NVR
The 16-channel NVR Recorder has a built-in power-over-ethernet switch, making the setup easy and quick. Camius security NVR assigns a unique IP address to the Camius IP camera. No more complicated IP configuration.
Note that if you set up Camius IP cameras password before adding it to the NVR, we recommend resetting the camera using the on-camera reset button. If the camera has no password set, it will play on the NVR (refer to the 'State' in green, which means you added the camera successfully).

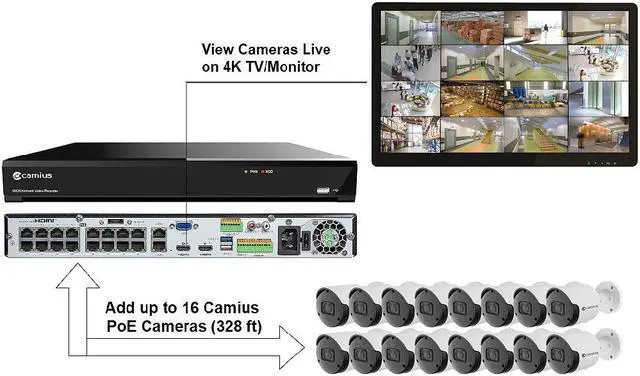

4K Live View
Camius 16 Channel NVR (network video recorder) comes with 3 video outputs to add a monitor/TV for live view
1 x HDMI (HDMI2) output for the primary monitor, which supports 4K video (3840x2160)
1 x HDMI (HDMI2) video output for a secondary monitor that supports 1080P display resolution
1 x VGA output
Audio
These Camius security cameras with audio recording allow you also to listen to audio life. You can also turn on and off the camera's audio. Sound Detection is triggered when a sudden loud noise occurs near the camera; it alerts the user and records in Intelligent mode.
Alarms:
You can enable alarm settings using the NVR. Alarms include a recorder's buzzer sound, sending email alerts, push notifications to the CAMIUS VIEW smartphone camera app, recording, pre-recording, and uploading images to Cloud through the NVR (Dropbox or Google Drive). Note, Voice prompts are in beta.
You can schedule an alarm for each camera and select the following events to trigger it:
Motion Detection
Stationary Object or Sound Detection in Intelligent mode
AI detection includes Human & Vehicle Detection (PD&VD), Cross Counting (CC), Perimeter Intrusion detection (PID), or Line Crossing detection (LCD). You can enable one of the AI functions.
'Exception' that includes No Space on your Hard Drive Disk, Disk error or failure, Video Loss
IP Cameras Security System for Business with AI Detection
Camus's latest 2K security cameras offer detection using AI analysis. It goes beyond video motion detection, allowing the user to create zones for detecting movement patterns, location, etc. You can activate one of the AI detections to get precise reports and analytics. AI Detection will trigger recording, email, or push notifications in addition to video recording in a unique color and tag.
AI Detection includes:
Human & Vehicle Detection (PD & VD)
Perimeter Intrusion Detection (PID)
Line Crossing Detection (LCD)
Cross Counting (CC)
More AI functions are in the Beta version

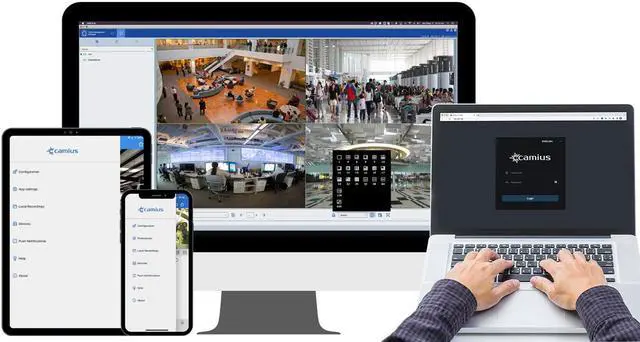

Audio Video Monitoring Cameras using a PC, Mac, Smartphone, or tablet
NVR PoE camera system goes beyond the HDMI monitor and smartphone app. The free NVR software (VMS) can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station. Users can monitor live video and audio streams in addition to playback and manage cameras with access to device settings. This software is excellent for multiple installations as it can combine cameras connected to a Camius DVR or NVR and individual Camius cameras on one screen. The software also displays Up to 128 cameras on the same screen and manages multiple devices from different locations.
Camius View App
The Smartphone Security Camera App Camius View offers complete access to your cameras from any location. Click here on how to add your security cameras to the app.
The mobile app is available on iOS and Android App stores and is ready to link to your security cameras. You can use your smartphone security camera App to view and playback any Camius security camera; listen to audio, and control the system entirely, including restarting it remotely.
Camius View (iOS)
Camius View (Android)
You can configure and restart your NVR system using your smartphone app.
For the NVR security system specifications, visit the following links
16 Channel NVR with a pre-installed 4TB hard drive
2K PoE bullet cameras

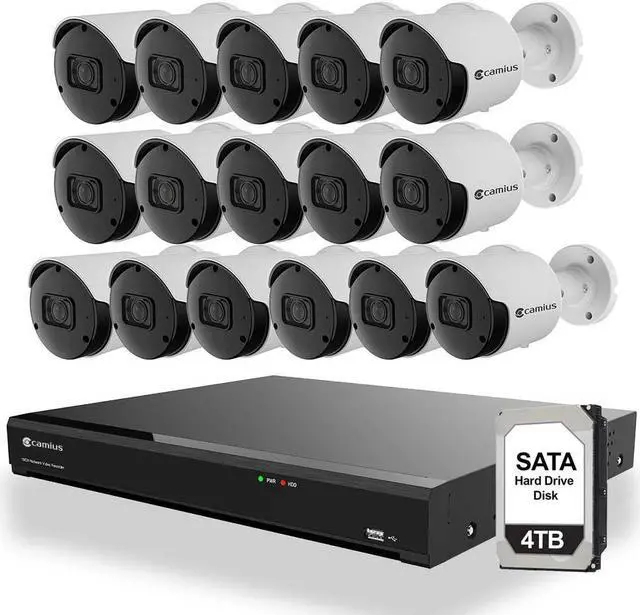

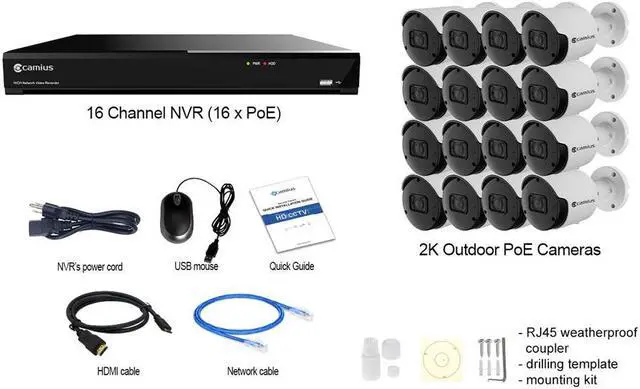

What's in the box:
16 Channel NVR with a pre-installed hard drive 4TB (IPVAULT2256PR 4TB HDD)
16 x 2K PoE Bullet Camera (BOLTX536R)
NVR's power cord, HDMI cable, Network cable, USB mouse, Installation Guide, Tech support info
Note: this bundle includes only one pre-installed hard drive and no cables. You can order an additional hard drive and Cat5E cables on Camius. com.
