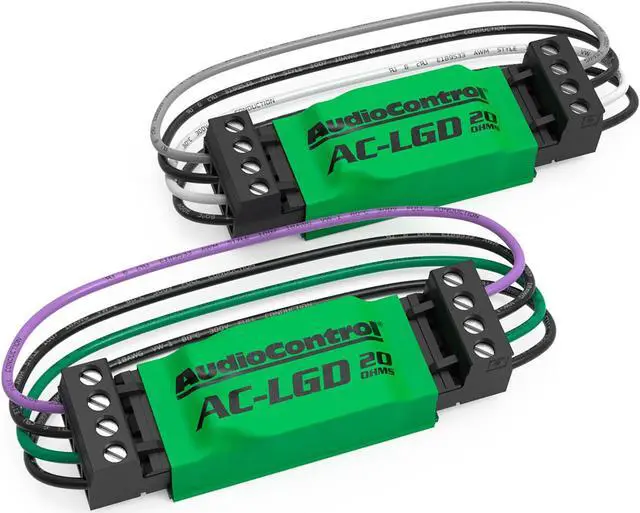

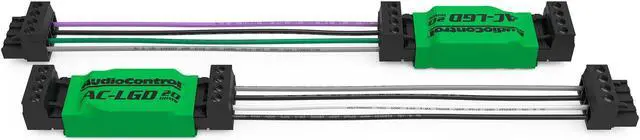

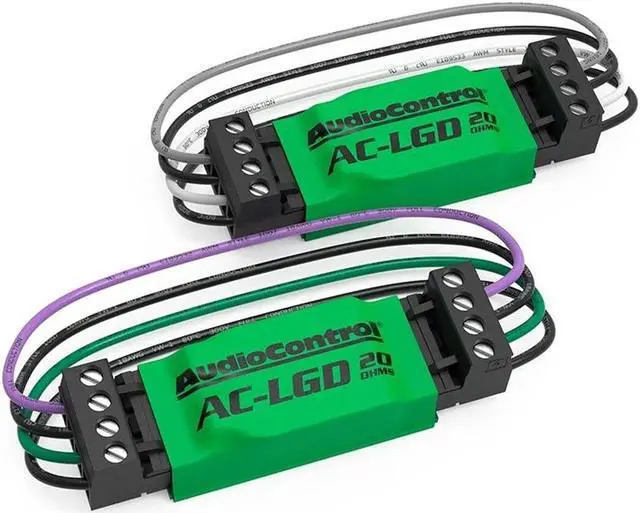

Audiocontrol Ac-Lgd 20 Load Generating Device & Signal Stabilizer

Todays factory amplifiers feature built-in protection circuits which can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 20 has been designed to generate load and stabilize signals from the amplified factory systems to ensure the best possible audio. The AC-LGD 20s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with pre-wired connectors. The AC-LGD 20 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 20 pair comes pre-wired with EIA standard wire colors for front and rear connections.

IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE CHRYSLER JEEP MASERATI SOUND SYSTEMS What's in the Box One pair of pre-wires AC-LGD 20s 5 Year Warranty

Specifications

GeneralMaximum Input Voltage: 15 Vrms (50 watts)
Input Impedance: 20
Ohms Weights DimensionsDimensions (without wires/connectors): 2.3L x 1.0W x.
06H Dimensions (with wires/connectors): 9.75L x 1.0D x.
06H Weight (single LGD): 1.4 oz (39g)
