16 Port PCIe SATA 3.0 Expansion Card, 6Gbps X1 Controller Card with Cables, Support SSD/HDD Drives for Windows 10/8/7/Linux - 16-Port, PCI-e
- It connects sixteen 6 Gbps SATA 3.0 SSDs or HDDs to your desktop computer with 16 SATA cables to improve your system performance and expand overall internal storage. (NO-Support Raid)falseThe 16 ports SATA controller based on the Asmedia ASM1064 + JMicron JMB575 chip, more stable and more widely compatible. Port Multiplier Command-based switching is supported.falseCompliant with SATA 3.0 standards, backward compatible with SATA 2.0 and SATA1.0. Support PCIe1.0, 2.0, 3.0 protocol on motherboard PCIe X1, X2, X4, X8, X16 slot. PCIe 3.0 x1 interface provides 8Gbps total bandwidth, each SATA 3.0 port will get 6Gbps max speed for AHCI boot and storage.false
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

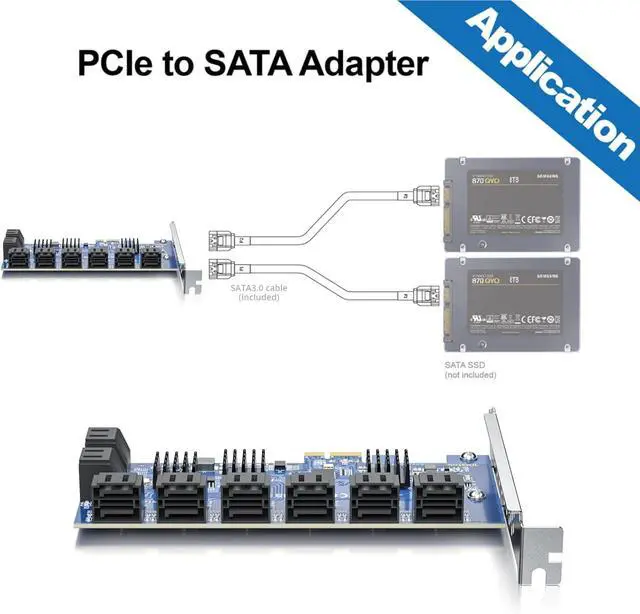

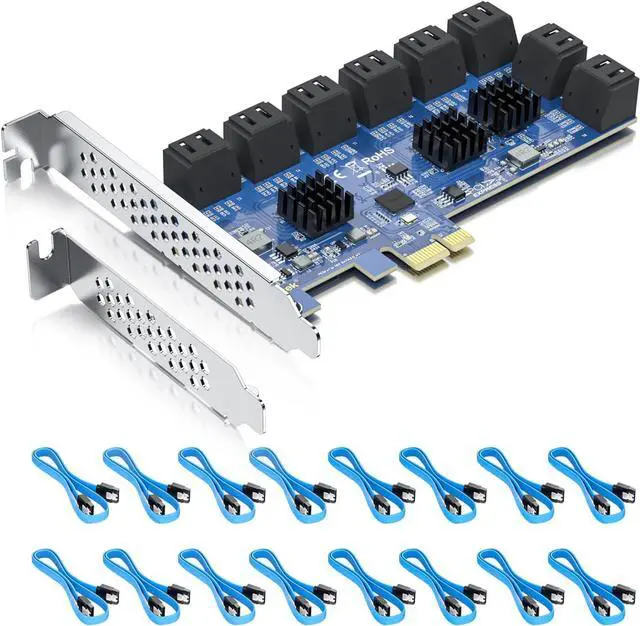

Full height and low profile bracket included. NOT support hot swapping! falseSupports Windows 8/10/11, Windows Server 2012 R2/2016/2019/2022, CentOS 6/7/8, Debian 9/10/11, Ubuntu 16/18/20/21, SUES 11/12/15, FreeBSD 11/12/13, VMware ESXi 6/7/8. false- It connects sixteen 6 Gbps SATA 3.0 SSDs or HDDs to your desktop computer with 16 SATA cables to improve your system performance and expand overall internal storage. (NO-Support Raid)
- The 16 ports SATA controller based on the Asmedia ASM1064 + JMicron JMB575 chip, more stable and more widely compatible. Port Multiplier Command-based switching is supported.

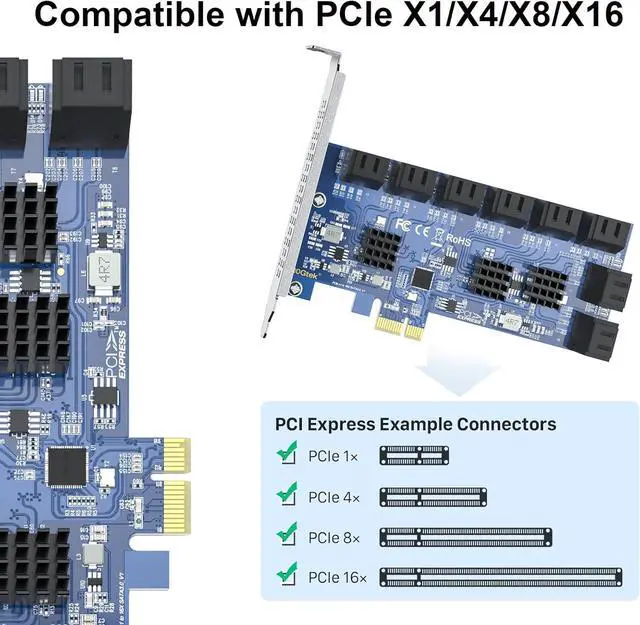

- Compliant with SATA 3.0 standards, backward compatible with SATA 2.0 and SATA 1.0. Support PCIe 1.0, 2.0, 3.0 protocol on motherboard PCIe X1, X2, X4, X8, X16 slot. PCIe 3.0 x1 interface provides 8Gbps total bandwidth, each SATA 3.0 port will get 6Gbps max speed for AHCI boot and storage.
- Full height and low profile bracket included. NOT support hot swapping!
- Supports Windows 8/10/11, Windows Server 2012 R2/2016/2019/2022, CentOS 6/7/8, Debian 9/10/11, Ubuntu 16/18/20/21, SUES 11/12/15, FreeBSD 11/12/13, VMware ESXi 6/7/
- The 16 ports SATA controller based on the Asmedia ASM1064 + JMicron JMB575 chip, more stable and more widely compatible. Port Multiplier Command-based switching is supported.
- Compliant with SATA 3.0 standards, backward compatible with SATA 2.0 and SATA 1.0. Support PCIe 1.0, 2.0, 3.0 protocol on motherboard PCIe X1, X2, X4, X8, X16 slot. PCIe 3.0 x1 interface provides 8Gbps total bandwidth, each SATA 3.0 port will get 6Gbps max speed for AHCI boot and storage.
- Full height and low profile bracket included. NOT support hot swapping!
- Supports Windows 8/10/11, Windows Server 2012 R2/2016/2019/2022, CentOS 6/7/8, Debian 9/10/11, Ubuntu 16/18/20/21, SUES 11/12/15, FreeBSD 11/12/13, VMware ESXi 6/7/
