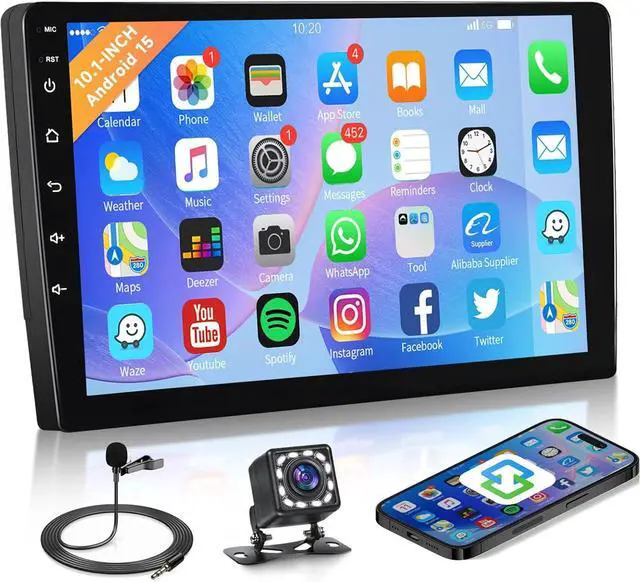

10.1-inch Android 15 Double Din Car Stereo with Wireless Mirror Link - Bluetooth, WiFi, EQ, FM/RDS Radio, Split Screen, Reverse Camera Input & Steering Wheel ControlCar Audio Receivers

Plug-and-Play Compatibility: Supports steering wheel controls for hands-free operation and reverse camera input (backup cam not included). Universal double din size fits 99% of vehicles (for Toyota, Ford, Honda, etc. ).
Head unit panel size: 250mm (top width) *145mm (high) *240 (bottom width), installation
dimension: 178mm( 7.0 in)*100mm( 3.93 in).
Advanced Features for Safety: Split-screen display lets you monitor maps and media simultaneously. Anti-glare technology ensures clear visibility in sunlight, while fire-resistant materials meet automotive safety standards.





10.1 Inch Touch Screen Double Din Car Stereo Android GPS Navigation RadioSystem: Android
Memory: 1GB (RAM) +32GB (ROM)
Screen resolution: 1024*600
Radio Band: FM RDS, Radio chip: MTK
Power output: 4*45W (max)
Chipset: 8227L-DEMO, Power amplifier chip: AC7388
WIFI & Steering wheel control function: Support
Bluetooth version: 4.0, Double USB interface
Factory setting keyword: 8888
Video output: Support; Split Screen: Support
Maps: Online and offline maps
Audio format: APE/FLAC/WAV/MP3/WMA etc
Video format: MKV/RMVB/AVI/MP4/MDV etc
Picture format: PNG/JPEG/JPG/GIF/WBMP/BNP etc
Language: Chinese/English/French/Italian/Korean/Japanese/Arabic/Spanish/Portuguese/Russian/Turkish/Vietnamese/Hebrew/Polish/German







Bluetooth Car Radio:
Bluetooth version: 4.0, S
upport hands-free call / auto loading phonebooks / Bluetooth music player / Bluetooth with A2DP
RDS/FM Radio Receiver: T
uning range: 87.5 -108 MHz;
Built in 18 stations preset: FM1, FM2, FM3; Radio can search channels in full-automatic ways, semiautomatic way and acurate adjustment way
Steering Wheel Control: Supports original steering wheel control, do not support cars with CANBUS!
F
or 1 cable wiring: choose either key1 or key2 to connect.
For 2 cables wiring: If they are 1 positive and 1 negative - Positive connect either key1 or key2; Negative wire to the car radio's black wire (ground).
Backup Camera Input: Car stereo with backup camera.
1. Camera video signal input plug to the back of radio correctly: the single wire"camera input"

2. Connect black wire connect to the negative of reverse lamp,

3. Connect red wire to the positive of reverse lamp

4. Connected trigger wire to the positive of reverse lamp, I
t will automatically change to reversing view while backing & parking your car.



Android IOS Mirror LinkSupport Android And IPhone.
Split Screen: Android head unit allow you split the screen between two apps, Such as gps navigation and music display at the same time!
Do not support change logo.



Head Unit installation size fits for 2 din car center console. Red cable - ACC (power switch)
Yellow cable - positive 12V battery
Black cable - 12V battery negative
"KEY1/ KEY2": Only one of the cables is selected for wiringdepending on the compatibility of the model and the steering wheelcontrol system. If you use two steering wheel controllers, you need toconnect 2 cables. please note: this function does not fit for some carsneeded CANBUS.
"BACK": Connects to the rear camera input port. do notforget to connect the trigger wire to the positive of the reverse lamp, otherwise no automatic reverse image.
"Lamp Control": Connect it to the small lamp in the front of the car to turn on the button backlight.
"ANT CONT": Connect the car radio antenna (no antenna, no wiring).
Signal Input: Connect to the input port of the reversing camera.
"Audio / Video":
Note: "AMP-CON" cable has no output voltageand must supply the amplifier or subwoofer via the car's ACC ignitioncable.

Any issue, please message us at first time, we will do our best to help.



We provide an External Microphone!
Package Included: 1 x Car MP5 Player; 1 x Power Cable; 1 x GPS Antenna; 1 x Camera Input; 1 x RCA Input and Output; 2 x USB Cable; 2 x Metal Frame; 4 x Screw 1 xInstruction manual; 1 x Backup Camera; 1 x Microphone
