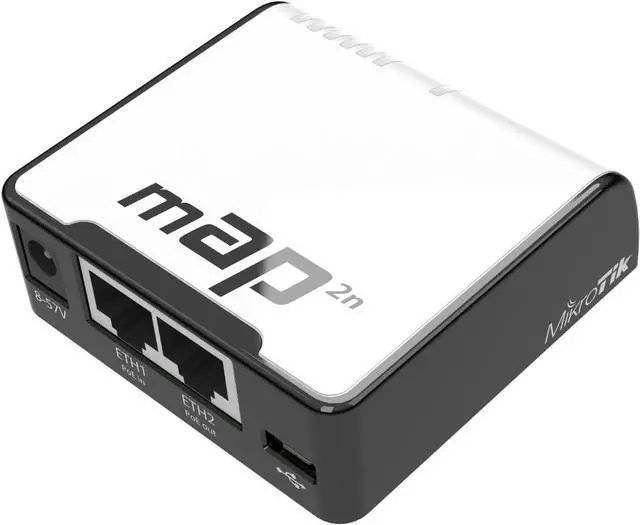

RouterBoard mAP RBmAP2nD micro Access Point wireless Dual-Chain

650MHz CPU, 64MB RAM, 2xEthernet, PoE out, Antenna 1.2 dBi built in, Dimensions 68x68x19mm, Ethernet 2x 10/100 Mbit/s Ethernet with Auto-MDI/X
Included parts: 24V 0.8A power adapter, microUSB type B to USB type A adapter



Model: RBmAP2nD (10 UNITS)
Wireless Dual-Chain 2.4GH z Micro Access Point The mAP (micro Access Point) also known as RBmAP2nD is a tiny size wireless Dual-Chain 2.4GH z Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

Technical Description
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 68x68x19mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -20°C to 70°C
MicroUSB input Voltage 5-5 V
PoE in 802.3 af/at
PoE in input Voltage 12-57 V
PoE out Passive PoE
PoE-out ports Ether2
Number of DC inputs 3 (PoE-IN, DC jack, MicroUSB)
DC jack input Voltage 8-57 V
Max out per port output (input
