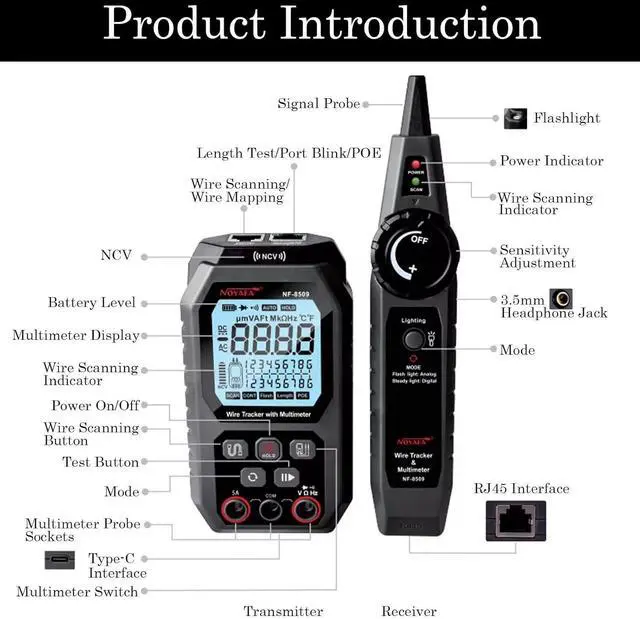

Network Cable Tester with Multimeter Tester, NCV Anti-Burn AC DC Voltmeter, POE Tester, Anti-Jamming TDR Network Tester, RJ45 CAT5 CAT6 Ethernet Cable Tester with Port Flashing and Cable Toner

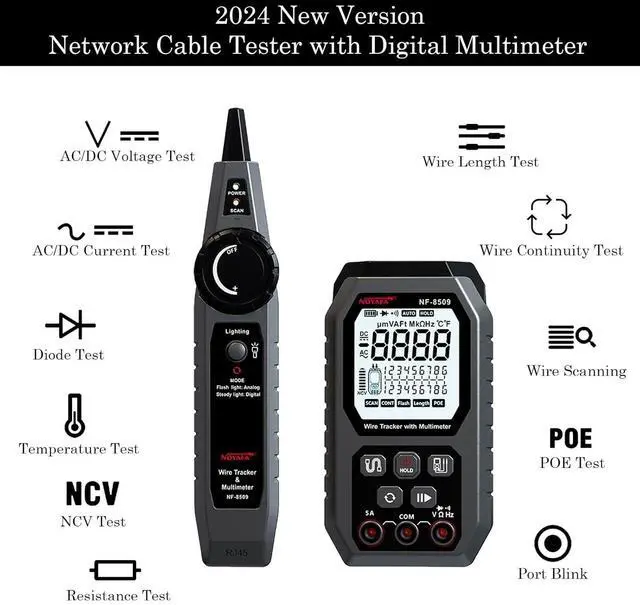

- Versatile Network Cable Tester: This multifunctional device combines network cable testing with a multimeter for precise measurements of DC/AC current, voltage, resistance, NCV, continuity, diodes, and temperature. Ideal for engineering, network maintenance, and equipment troubleshooting, it accurately locates cables with ease.
- Comprehensive Cable Toner: Offering a range of essential functions including POE testing, anti-jamming for RJ45 CAT5/CAT6 cables, continuity testing, voltage measurement, port flashing, sensitivity adjustment, cable length testing, and a built-in LED flashlight, this tool ensures efficient network diagnostics.

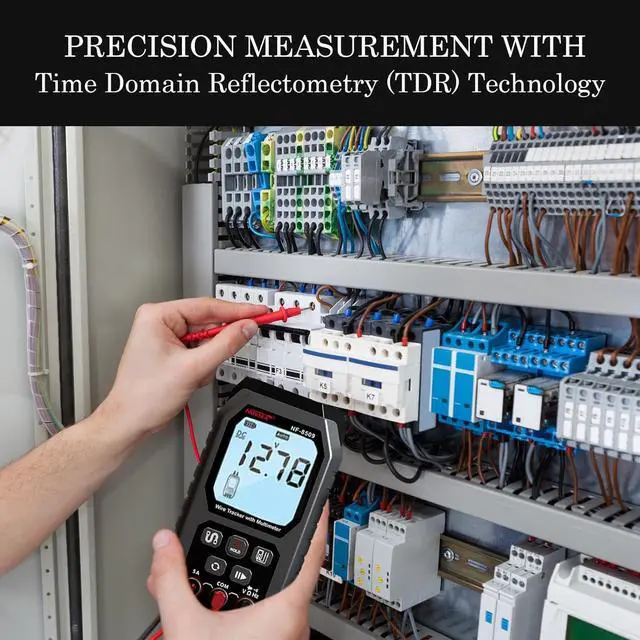

- Portable TDR Cable Length Tester: Featuring Time Domain Reflectometry (TDR) technology, this tester provides portable and accurate cable length measurements, calibrates Velocity of Propagation (VoP) values, and swiftly identifies faults in cables, making on-site troubleshooting convenient and effective.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

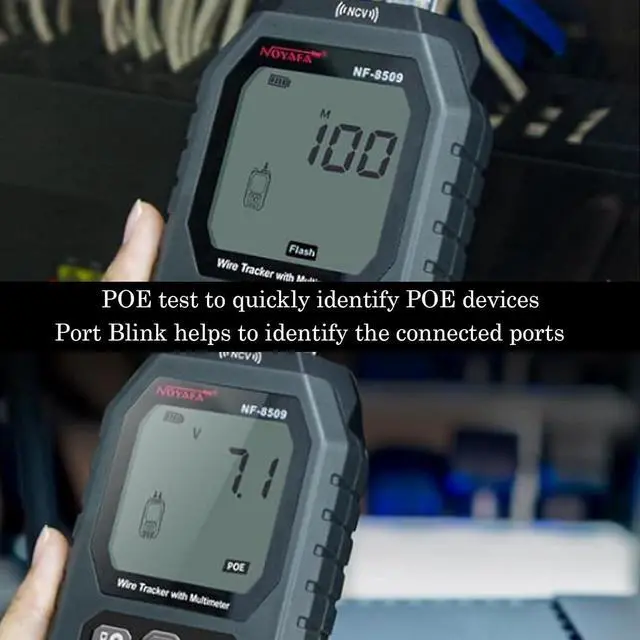

Efficient POE Testing & Port Identification: Streamline the identification of PoE devices with the POE tester, which assesses PoE voltage, power supply polarity, and mode, along with detecting PSE type (af or at standard). Port Flashing functionality aids in quick identification of connected ports on network switches or routers.

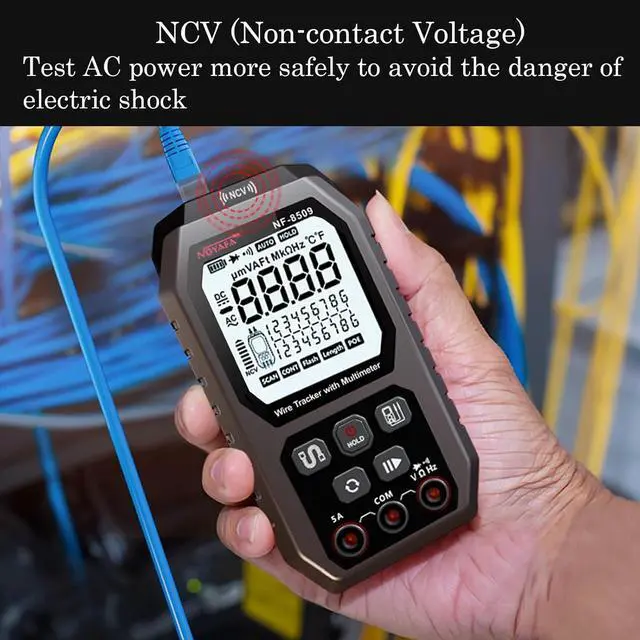

Safety-focused NCV Detection: This network cable tester with multimeter incorporates Non-contact Voltage (NCV) detection, ensuring safety by identifying voltage presence without physical contact with the cable. With intelligent recognition of measurement objects and protection against accidental electric shocks, it prevents damage to connected devices even at 250V, enhancing safety during testing operations.
Testing Network Cables Is Made Easy! CHARACTERISTIC
Product ParametersWire Scanning
RJ45 600m
Wire Length Measurement
5 - 200m (+/-3m)
Port Flashing Test
10M/100M/1, 000M
POE
POE voltage detection, 4-core/8-core power supply detection
Continuity Test
Detect the connectivity performance of wires and various conductors via audible beeps which will be triggered when resistance is below 50
Resistance Measurement
600-60M (accuracy: +/- 1.0 % +5)
NCV Function
Inductive voltage detector (0-4 levels)
AC/DC Voltage Measurement
600mV-610V (DC accuracy: +/-
0.5 %+3mV: AC accuracy: +/- 0.5 %+3mV)
AC/DC Measurement
1mA - 3A DC (accuracy: +/- 0.8 %+3mA)
Frequency
0-10MHz (accuracy: +/- 1.0 %+3)
Power
3.7V / 1, 500mA lithium battery
Maximum Working Current
150mA
Ambient Temperature Display
Telephone Function
Safety-focused NCV Detection: This network cable tester with multimeter incorporates Non-contact Voltage (NCV) detection, ensuring safety by identifying voltage presence without physical contact with the cable. With intelligent recognition of measurement objects and protection against accidental electric shocks, it prevents damage to connected devices even at 250V, enhancing safety during testing operations.
Testing Network Cables Is Made Easy! CHARACTERISTIC
Product ParametersWire Scanning
RJ45 600m
Wire Length Measurement
5 - 200m (+/-3m)
Port Flashing Test
10M/100M/1, 000M
POE
POE voltage detection, 4-core/8-core power supply detection
Continuity Test
Detect the connectivity performance of wires and various conductors via audible beeps which will be triggered when resistance is below 50
Resistance Measurement
600-60M (accuracy: +/- 1.0 % +5)
NCV Function
Inductive voltage detector (0-4 levels)
AC/DC Voltage Measurement
600mV-610V (DC accuracy: +/-
0.5 %+3mV: AC accuracy: +/- 0.5 %+3mV)
AC/DC Measurement
1mA - 3A DC (accuracy: +/- 0.8 %+3mA)
Frequency
0-10MHz (accuracy: +/- 1.0 %+3)
Power
3.7V / 1, 500mA lithium battery
Maximum Working Current
150mA
Ambient Temperature Display
Telephone Function
