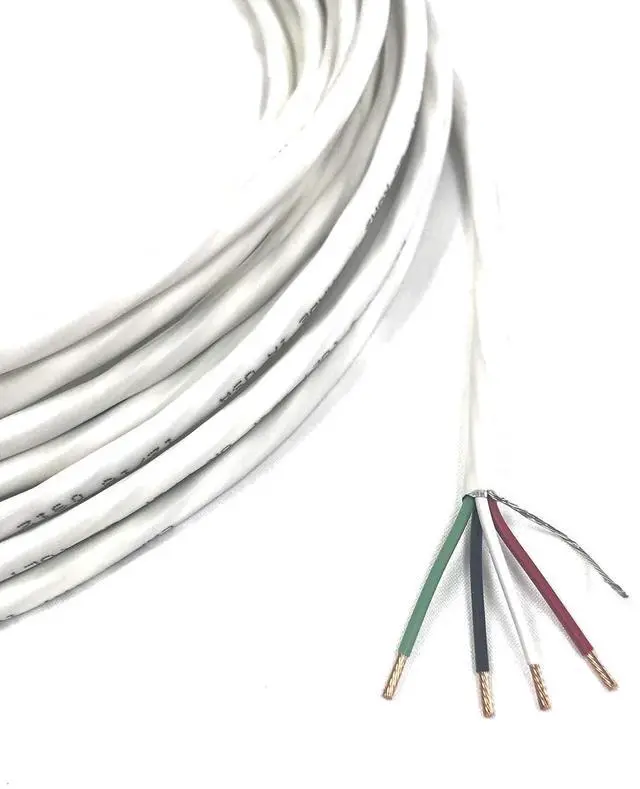

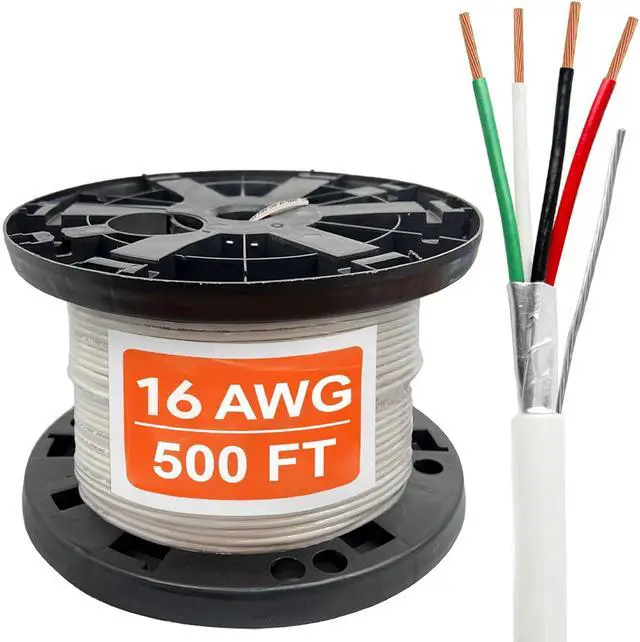

16 Gauge Wire (16 AWG) 4 Conductor Stranded Copper Shielded Cable 16/4 Home Electrical Wire Low Voltage Up to 300V CL3P Low Smoke Plenum Jacket USA Made (500ft - White)
- TRUSTED BY INSTALLERS NATIONWIDE: UL-listed & certified, this 16 AWG wire is ideal for smooth installs in homes and buildings. Ready for wall runs, ceilings, and panel setups. Abides by National Electric Code Article 800.
- PURE COPPER, FULLY SHIELDED: Shielded wire with drain wire and plenum jacket minimizes noise for speaker, control, and alarm wiring. 4 conductor wire 16 AWG, with 19 pure copper strands per conductor. More flexible than solid wiring. OD: 0.218"
- CODE-READY FLAME RESISTANCE: CL3P-rated outer plenum jacket resists ignition and toxic smoke. Built for in-ceiling runs and HVAC environments. Meets strict commercial safety code requirements where flame-tested insulation is mandatory.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
VERSATILE LOW VOLTAGE WIRE FOR HVAC AND TELECOM INSTALLS: This 4 conductor wire works as electric wire for heating, air systems, and in-wall speaker wire setups. Supports up to 300 volts.
CRAFTED FOR LONG-TERM PERFORMANCE: Since 2002, our family-owned Texas brand has built 16 AWG stranded wire, 16 gauge copper wire, and custom low voltage cable using USA materials. Trusted hookup wire for home electrical wire installs.
Cable Type
Stranded shielded plenum cable
Conductor
Stranded bare copper conductors, twisted
Gauge (AWG)
16
Outer Jacket
CMP/FPLP rated low smoke PVC plenum jacket
Shielding
100% coverage foil shield (aluminum mylar) with drain wire (24 AWG tinned copper)
Low Smoke Plenum Rating
CMP-certified (meets burn testing requirements for air plenum spaces)
Temperature Range
-25°C to 75°C
Voltage
Rated up to 300 volts
Application
Designed for use in plenum spaces like ceilings and raised floors. Great for security systems, intercom systems, sound/audio systems, and power-limited controls. Provides high-performance sound for home or office speaker systems.
Certification
UL-listed, Article 800 Plenum
CL Rating
CL3P rated, suitable for in-wall wiring
Impedance
46.7 (Nominal)
Conductor Resistance
16.90 Ohms/1000 ft (Max) @ 20°C
Country of Origin
Made in the USA
CRAFTED FOR LONG-TERM PERFORMANCE: Since 2002, our family-owned Texas brand has built 16 AWG stranded wire, 16 gauge copper wire, and custom low voltage cable using USA materials. Trusted hookup wire for home electrical wire installs.
Cable Type
Stranded shielded plenum cable
Conductor
Stranded bare copper conductors, twisted
Gauge (AWG)
16
Outer Jacket
CMP/FPLP rated low smoke PVC plenum jacket
Shielding
100% coverage foil shield (aluminum mylar) with drain wire (24 AWG tinned copper)
Low Smoke Plenum Rating
CMP-certified (meets burn testing requirements for air plenum spaces)
Temperature Range
-25°C to 75°C
Voltage
Rated up to 300 volts
Application
Designed for use in plenum spaces like ceilings and raised floors. Great for security systems, intercom systems, sound/audio systems, and power-limited controls. Provides high-performance sound for home or office speaker systems.
Certification
UL-listed, Article 800 Plenum
CL Rating
CL3P rated, suitable for in-wall wiring
Impedance
46.7 (Nominal)
Conductor Resistance
16.90 Ohms/1000 ft (Max) @ 20°C
Country of Origin
Made in the USA
