® ProAV ® Unlimited N x N HDMI Extender Over Ethernet Cat6 Extender Matrix 12X12 8X8 Switch Switcher Extender by Single Ethernet Cable up to 400ft (Receiver)

1080p, 3D, HDCP, Stereo/PCM 2CH audio supported & wideband IR (38-56 khz) control
Can be cascaded for many layers by adding Ethernet switches. Android app available for the switch on
Google Play: search " Matrix".



Many Ways to Control
Many Ways to Control - PC SoftwareConnect the switcher to PC with an RS232 cable or LAN cable
Open the software on PC

"Please ensure that the matrix and your PC are on the same LAN"

is focused on providing high-quality products that integrate and distribute home entertainment for the residential and commercial markets. has played a major role in transforming whole-house audio/video and home theater.

ProAV Unlimited HDMI by Single Ethernet Cable up to 400ft is most advanced TCP/IP HDMI extender matrix on the market. It is a flexible and powerful alternative and combination of HDMI extender and HDMI matrix.

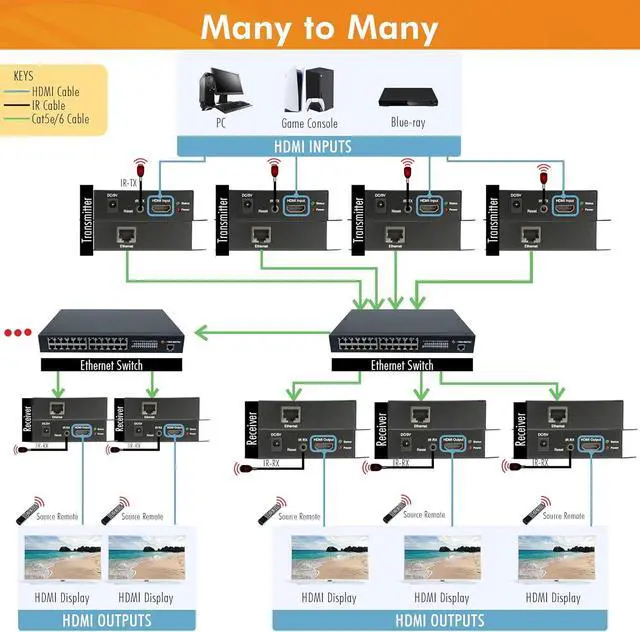

Three Woking modes
Three modes includes point-to-point, point-to-many & many-to-many. For point-to-point mode, HDMI signal can be extended up to 120m (394ft) over a single Cat5E/6 cable.
Any-to-Any Broadcasting
Extend your HDMI signal from any source to any receiver can never be too easy. By configuring customised gigabit network switch (JTECH-EX-120M-UN-S), you can stream your HDMI signal to one receiver or many receivers; also, receiver can pick the signal from any of the transmitters. The network switch can be cascaded to form a many-layer network to support a large HDMI extender system.
Standard TCP/IP Protocol
HDMI signal is repacked into IP packets. Each receiver and transmitter has a unique IP address which you can manually set by logging into their web GUIs.

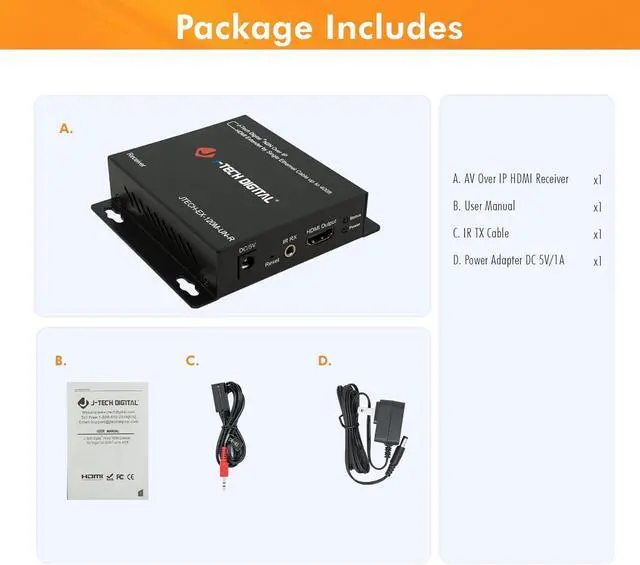

Package includes:
1 x HDMI Extender Receiver 1x 5V DC Power Adapters 1 x IR Cable Transmitter 1 x User Manual
How did we get our start? was founded in 2012 with the goal of supplying Audio-Video installers, integrators and end-users with high-quality products their AV systems deserve. With humble beginnings, has grown with our customers and the industry to continually accomplish our original goal; day-in & day-out.
