Benchtop Multimeter UT8805E - 5.5 Digit, 4.3 in Display, Auto-Ranging, TRMS, 199,999 Counts, Grey, Multimeter Tester

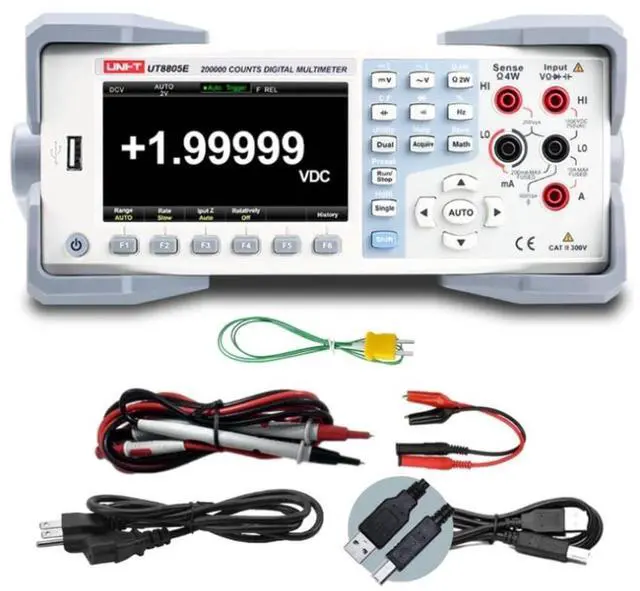

- HIGH-PRECISION DISPLAY - 5.5 digit digital multimeter with auto-ranging and TRMS. Features 199,999 counts and 0.015% accuracy. Includes USB cable, RS232 interface, and K-type probe.
- VERSATILE VIEWING OPTIONS - 4.3 inch TFT LCD supports Number, Bar Graph, Trend Graph, and Histogram views. Hold measurement function for easy data analysis.
- DUAL DISPLAY FUNCTION - Simultaneously measure AC voltage/current and frequency. Both voltage/current and frequency values are displayed for comprehensive analysis.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ADVANCED MATH OPERATIONS - Supports statistics, limits, dB, relative operations, and dBm. Suitable for voltage, current, resistance, capacitance, frequency, and temperature.
EXTENSIVE DATA STORAGE - Pass/Fail, max/min/average/relative value measurement. 10, 000 reading history with 1GB Nand Flash capacity for detailed record-keeping.
Unleash Precision with the UT8805EPrecision and Performance at Your FingertipsElevate your engineering projects with the UT8805E, a cutting-edge 5.5 -digit, auto-ranging, true RMS desktop digital multimeter. Experience unparalleled accuracy, versatility, and advanced features in a sleek and user-friendly design.

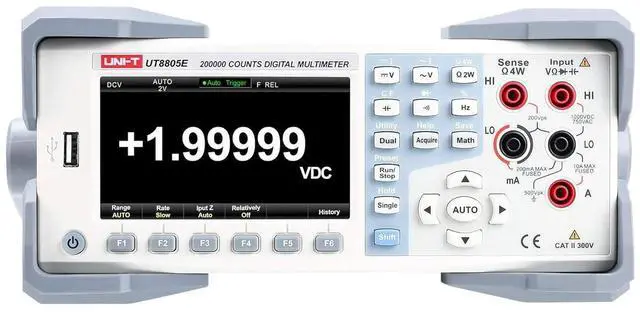

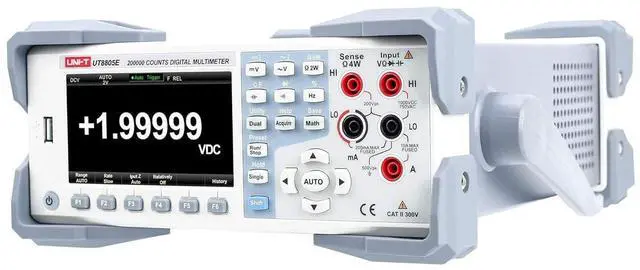

199999 counts, 4.3 inch TFT LCD
UT8805E auto-ranging, true RMS desktop digital multimeter 5½ READING RESOLUTION
5, 000rdgs/s FASTEST TEST RATE
100kHz FREQUENCY RESPONSE
0.015 % DC VOLTAGE ACCURACY in a Year

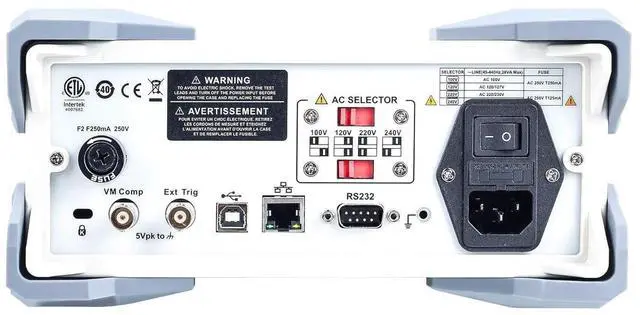

USB Host, USB Device, LAN, RS232 CONNECTIVITY
UT8805E auto-ranging, true RMS desktop digital multimeter UT8805E Merchant Video
UT8805E auto-ranging, true RMS desktop digital multimeter UT8805E auto-ranging, true RMS desktop digital multimeter with 199999 counts, up to 5k rdgs/s, 300kHz frequency response, and a 4.3 inch TFT LCD. Pass/Fail, maximum value/minimum value/average value/relative value measurement, etc., 10k reading history data record, 1GB Nand Flash total capacity.
It is a superior electrical measuring instrument. It is suitable for measurement in embedded system design, manufacturing, electric power, education.
5½ READING RESOLUTION
5, 000rdgs/s FASTEST TEST RATE
100kHz FREQUENCY RESPONSE
0.015 % DC VOLTAGE ACCURACY in a Year
USB Host, USB Device, LAN, RS232
CONNECTIVITY
UT8805 Features Dual display function Dual display function
When measuring the voltage or current of an AC signal, you can also measure its frequency. At this time, the voltage or current is displayed, and the frequency value is also displayed.
Display mode Display mode
Support users to view the measured data in four ways: "number", "bar graph", "trend graph" and "histogram".
Mathematical operations and reading statistics Mathematical operations mainly include 5 functions: statistics, limits, dB, relative operations and dBm. The math operation function is suitable for voltage, current, resistance, capacitance, frequency/period and temperature measurement.
5 ½ Display 5 ½ Display
199999 count, 4.3 inch TFT LCD display, Hold measurement function
The Ultimate Multimeter SolutionPrecision and Performance RedefinedElevate your engineering projects with the UT8805E, a cutting-edge 5.5 -digit, auto-ranging, true RMS desktop digital multimeter. Experience unparalleled accuracy, versatility, and advanced features in a sleek and user-friendly design.
EXTENSIVE DATA STORAGE - Pass/Fail, max/min/average/relative value measurement. 10, 000 reading history with 1GB Nand Flash capacity for detailed record-keeping.
Unleash Precision with the UT8805EPrecision and Performance at Your FingertipsElevate your engineering projects with the UT8805E, a cutting-edge 5.5 -digit, auto-ranging, true RMS desktop digital multimeter. Experience unparalleled accuracy, versatility, and advanced features in a sleek and user-friendly design.
199999 counts, 4.3 inch TFT LCD
UT8805E auto-ranging, true RMS desktop digital multimeter 5½ READING RESOLUTION
5, 000rdgs/s FASTEST TEST RATE
100kHz FREQUENCY RESPONSE
0.015 % DC VOLTAGE ACCURACY in a Year
USB Host, USB Device, LAN, RS232 CONNECTIVITY
UT8805E auto-ranging, true RMS desktop digital multimeter UT8805E Merchant Video
UT8805E auto-ranging, true RMS desktop digital multimeter UT8805E auto-ranging, true RMS desktop digital multimeter with 199999 counts, up to 5k rdgs/s, 300kHz frequency response, and a 4.3 inch TFT LCD. Pass/Fail, maximum value/minimum value/average value/relative value measurement, etc., 10k reading history data record, 1GB Nand Flash total capacity.
It is a superior electrical measuring instrument. It is suitable for measurement in embedded system design, manufacturing, electric power, education.
5½ READING RESOLUTION
5, 000rdgs/s FASTEST TEST RATE
100kHz FREQUENCY RESPONSE
0.015 % DC VOLTAGE ACCURACY in a Year
USB Host, USB Device, LAN, RS232
CONNECTIVITY
UT8805 Features Dual display function Dual display function
When measuring the voltage or current of an AC signal, you can also measure its frequency. At this time, the voltage or current is displayed, and the frequency value is also displayed.
Display mode Display mode
Support users to view the measured data in four ways: "number", "bar graph", "trend graph" and "histogram".
Mathematical operations and reading statistics Mathematical operations mainly include 5 functions: statistics, limits, dB, relative operations and dBm. The math operation function is suitable for voltage, current, resistance, capacitance, frequency/period and temperature measurement.
5 ½ Display 5 ½ Display
199999 count, 4.3 inch TFT LCD display, Hold measurement function
The Ultimate Multimeter SolutionPrecision and Performance RedefinedElevate your engineering projects with the UT8805E, a cutting-edge 5.5 -digit, auto-ranging, true RMS desktop digital multimeter. Experience unparalleled accuracy, versatility, and advanced features in a sleek and user-friendly design.
