DE-MSAT mSATA to 2.5-Inch IDE Adapter Converter with Aluminum Frame Bracket - Latch and Retain mSATA SSD as 9.5mm 2.5" IDE SSD Drive

OS independent; No driver installation required. Native support in Windows, Mac and Linux.
Fully RoHS compliant. High quality product. Made in Taiwan.

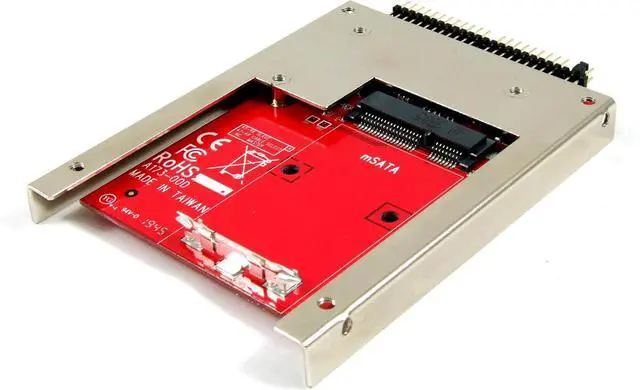

The DE-MSAT let you convert an mSATA SSD into a standard 9.5 mm high 2.5 IDE SSD drive. It provides excellent heat dissipation for mSATA SSD drive with the open aluminum frame design.
Features

* Connector:
- 1 x mSATA (52-pin, Mini SATA) Receptacle
- 1 x IDE (44-pin, PATA) Male
* Controller:
- Marvell 88SA8052
* Data transfer rate:
- Up to 150 MB/s
* Convert Full Size mSATA SSD to High Performance, No Noise, Low Power 44Pin 2.5 IDE SSD
* Supports SATA I, SATA and SATA I (6Gbps) mSATA SSD
* Latch type mSATA connector on board, no need the screw to retain mSATA SSD
* 100% Compatible with 2.5 IDE drive mechanical spec
* 48 bits LBA can Break Capacity-Limit to Support mSATA SSD max 144, 115, 188GB
* Compliant with Serial ATA 2.6
* Jumper setting support IDE Master, Slave and Cable Select Modes
* Tag Command Queuing (Max 32 entries) * ATA/ATAPI PIO mode data transfer
* ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
* ATA/ATAPI-7 Streaming feature set
* Includes 9.5 mm height 2.5 drive metal frame with 8 mounting holes and 4 HDD screws
* Dimension of PCBA with 2.5 frame: 98mm x 69.85 mm x 9.5 mm
* Fully RoHS compliant
* Made in Taiwan


Convert an mSATA SSD into a standard 9.5 mm high 2.5
IDE SSD driveSoftware: OS independent; No driver installation required
Support Windows, Macs, and Linux
Dimensions: 3.9 x 2.8 x 0.4 inches / 100 x 70 x 10 mm
Weight: 1.9 ounces / 54 g
