ITX-PFC500W Mini ITX/Flex ATX / 1U 500W Fully Modular Power Supply, Full Range Active PFC 90-264V, AC for POS AIO System Desktop Gaming Server Small Form Factor (Flex ITX) Computer PSU

Dimension: 160mm x 73.66 mm x 35.5 mm ( 6.3" x 2.9" x 1.4" ) - L x W x H
Output: + 3.3V @12A, +5V@14A, +12V@33A, -12V@ 0.3A, +5Vsb@ 2.5A
IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.

The ITX-PFC500W power supply is a full range active PFC standard ITX unit that will t in most small ITX form-factor cases. Has enough power output and connectors to run systems up to 500 watts, being used for versa compact computing applications.
Includes various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP).

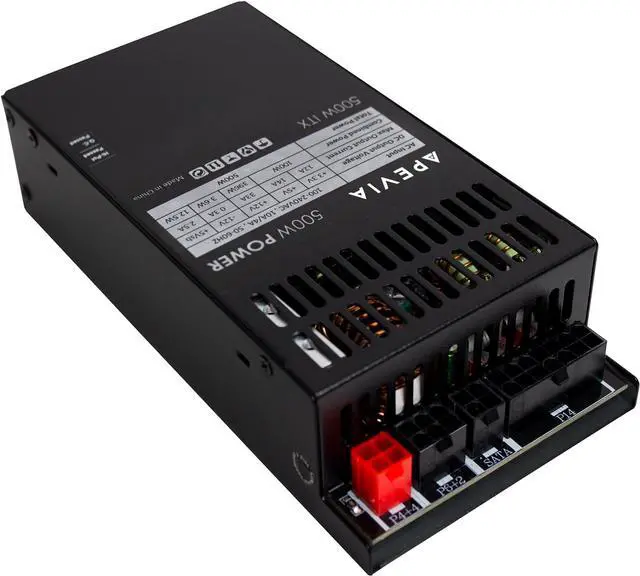

ITX-PFC500W Standard 500W ITX Form Factor ATX Power Supply. Full Range Active PFC 90-264V.
Maximum Power: 500W.

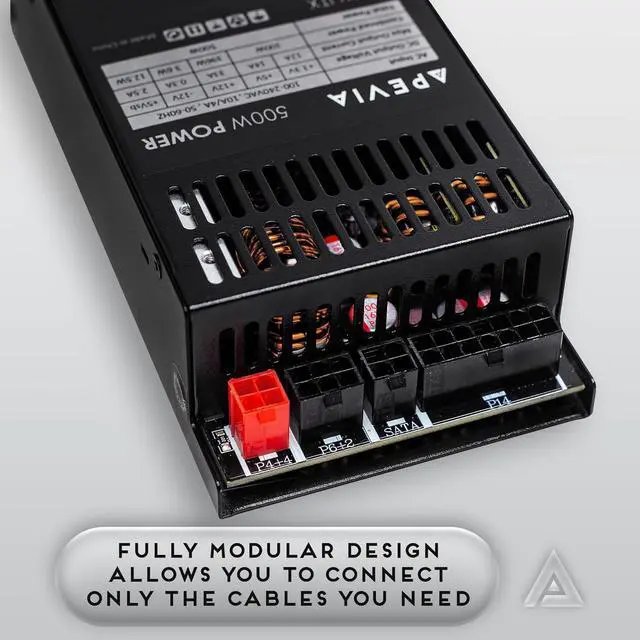

Fully Modular Power Supply Design
High stability with 5% tolerance of 5V, 3.3V & 12V output
High quality components and housing
Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP)

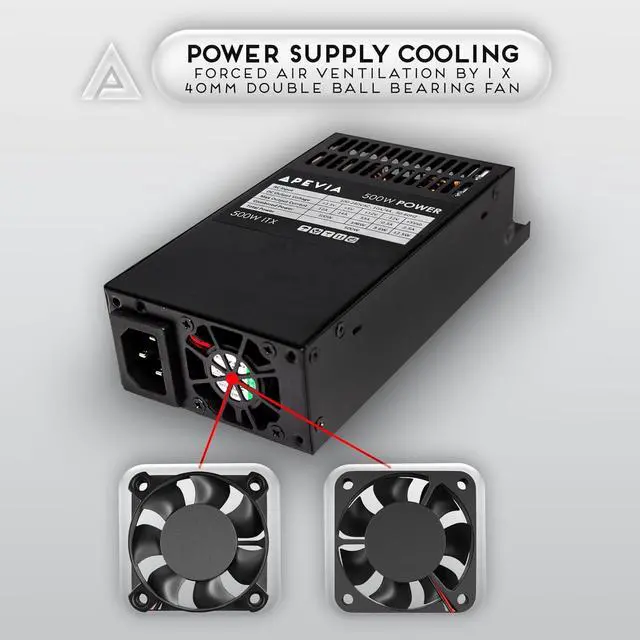

Cooling: Forced Air Ventilation by 1 x 40mm Double Ball Bearing Fan
Power cord
Retail box

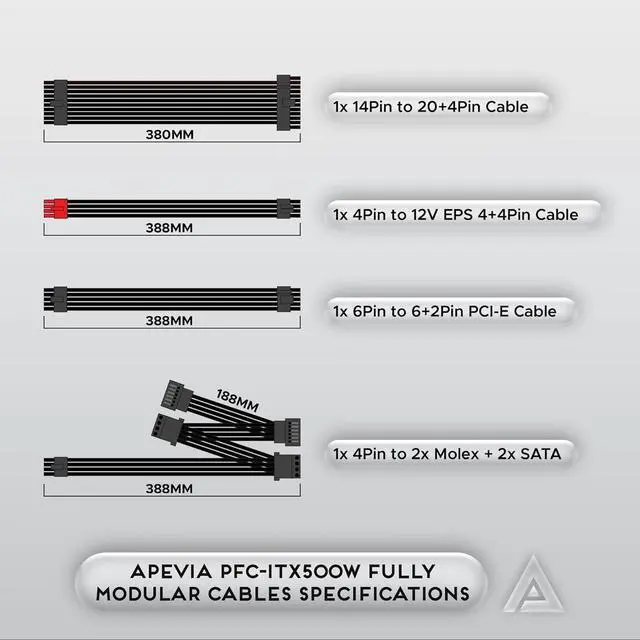

1 x 20 + 4 pin main connector can be used for 20 pin or 24 pin
1 x ATX12V P4+4pin connector can be used as 12V 8pin or 4pin (Removable by pushing out one of the 4pins)
2 x 6+2 PCIE graphics card connector can be used as an 8pin or 6pin (Removable by pushing out the 2pin)
2 x SATA connector
2 x 4 pin peripheral connector
IMPORTANT:
The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
