MEGA2560 Screw Terminal Block Breakout Module with Aluminum Enclosure, for MEGA 2560 R3

Support for Desktop, Panel mount, Wall-mount or DIN rail mount. DIN rail mount supports vertical or horizontal place mounting. Can support width 35mm / 32mm / 15mm rail. falseEnclosure: High quality aluminum enclosure, thickness 1.5 mm/ 0.06", with attractive and extremely durable powder coat painting and clear laser marking labels. FR-4 fiber glass PCB, dual copper layers. falsePacking list: 1x Terminal Block Board (assembled standoffs and screws), 1x Aluminum enclosure (top and bottom covers), 5x M3x4mm Flat head screws (for top and bottom cover), 4x M2x6mm Standoff, 4x M2x6mm Flat head screw, 2x DIN rail adapter bracket, 4x M3x10mm Flat head tapping screw (for DIN rail adapter bracket). 1x 2x3pin header connector (for ICSP). false1, MEGA2560 Screw Terminal Block Breakout Module with Aluminum Enclosure. With the adapter module you can easily extend Arduino MEGA2560 projects to industrial control applications. Applications for Arduino MEGA2560 R2 / R3 (
NOTE: the item not include Arduino MEGA2560).
2, Terminal block pitch 3.5 mm/ 0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper. With power on LED indicating, red reset button on the side, with a ICSP adapter connect header.
3, Support for Desktop, Panel mount, Wall-mount or DIN rail mount. DIN rail mount supports vertical or horizontal place mounting. Can support width 35mm / 32mm / 15mm rail.
4,
Enclosure: High quality aluminum enclosure, thickness 1.5 mm/ 0.06", with attractive and extremely durable powder coat painting and clear laser marking labels. FR-4 fiber glass PCB, dual copper layers.
5,
Packing list: 1x Terminal Block Board (assembled standoffs and screws), 1x Aluminum enclosure (top and bottom covers), 5x M3x4mm Flat head screws (for top and bottom cover), 4x M2x6mm Standoff, 4x M2x6mm Flat head screw, 2x DIN rail adapter bracket, 4x M3x10mm Flat head tapping screw (for DIN rail adapter bracket). 1x 2x3pin header connector (for ICSP).

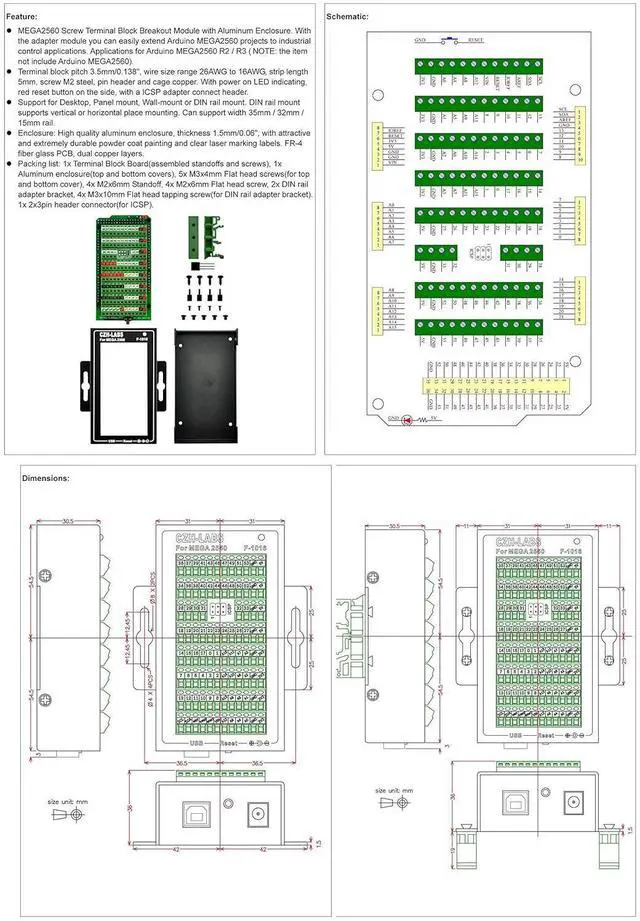

Datasheet:
https: //images-na. ssl-images-. com/images/I/B1Yj-p8ko6S. pdf
- MEGA2560 Screw Terminal Block Breakout Module with Aluminum Enclosure. With the adapter module you can easily extend Arduino MEGA2560 projects to industrial control applications. Applications for Arduino MEGA2560 R2 / R3 (
NOTE: the item not include Arduino MEGA2560).
- Terminal block pitch 3.5 mm/ 0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper. With power on LED indicating, red reset button on the side, with a ICSP adapter connect header.

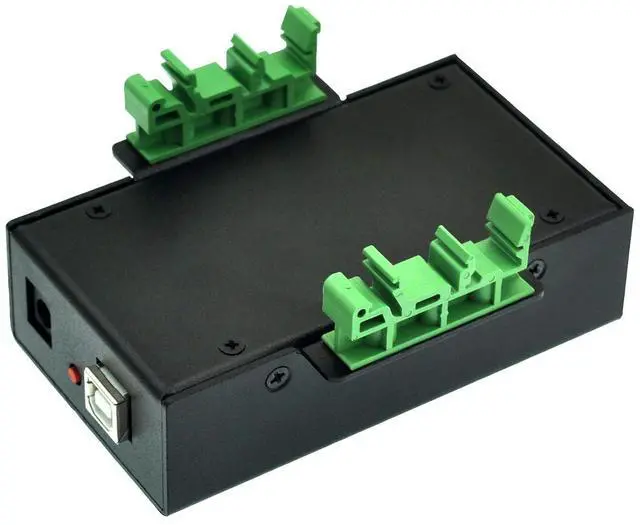

- Support for Desktop, Panel mount, Wall-mount or DIN rail mount. DIN rail mount supports vertical or horizontal place mounting. Can support width 35mm / 32mm / 15mm rail.
- Enclosure: High quality aluminum enclosure, thickness 1.5 mm/ 0.06", with attractive and extremely durable powder coat painting and clear laser marking labels. FR-4 fiber glass PCB, dual copper layers.

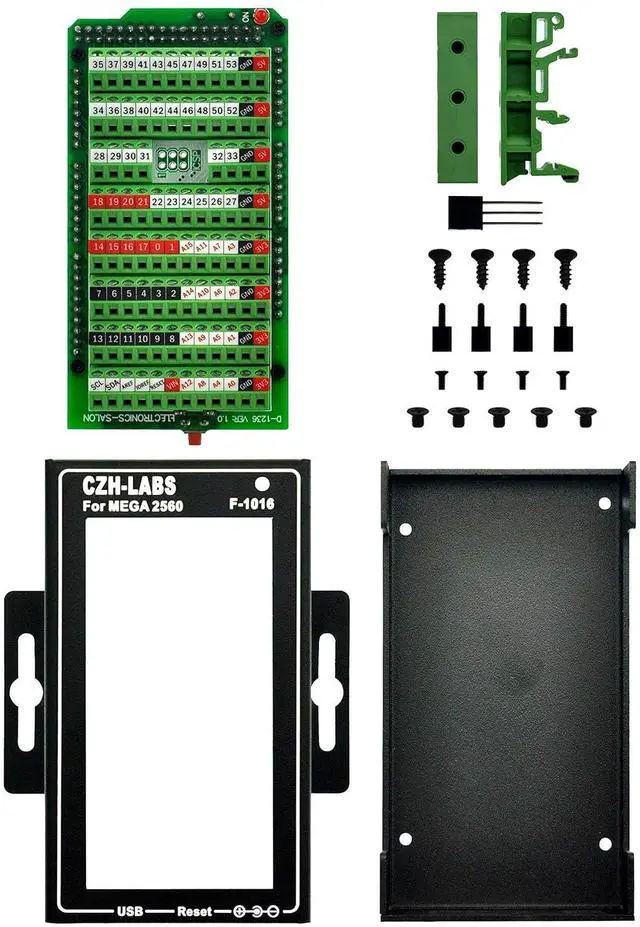

- Packing list: 1x Terminal Block Board (assembled standoffs and screws), 1x Aluminum enclosure (top and bottom covers), 5x M3x4mm Flat head screws (for top and bottom cover), 4x M2x6mm Standoff, 4x M2x6mm Flat head screw, 2x DIN rail adapter bracket, 4x M3x10mm Flat head tapping screw (for DIN rail adapter bracket). 1x 2x3pin header connector(for ICSP
