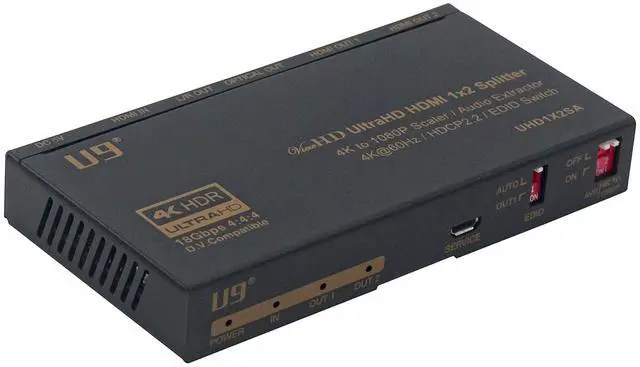

ViewHD UHD1X2SA 1 in 2 Out 1x2 HDMI 2.0 HDCP 2.2 Splitter with 4K to 1080P Down Scaler and Audio Extractor 4K60Hz HDR Dolby Vision 3.5mm / Optical and HDMI Audio Output to HDMI AVR Receiver

This ViewHD model UHD1X2SA is the newest, most sophisticated, and highly adaptable 4K@60Hz 18Gbps HDMI 2.0 HDCP 2.2 1x2 splitter available. [I/O] It features one HDMI input, two HDMI outputs, one Optical Audio output, and one 3.5 mm analog audio output. To clarify, it does not support CEC and does not bypass HDCP. [4K to 1080P scaler] The HDMI out2 port includes a 4K to 1080P scaler, enabling users to enjoy 4K video from HDMI out1 while simultaneously using a 1080P TV with HDMI out2. Excellent compatibility. [The most advanced HDMI 1x2 splitter] It supports
HDMI 2.0B 18Gbps 4:4: 4, HDCP 2.2, HDR & Dolby Vision. Audio extraction works with Optical receivers, 1080P and 4K HDMI receivers, and 3.5 mm stereo headphones. Indeed, it features a dedicated AVR mode to support HDMI 1080P or the newest 4K HDMI receiver for audio via the HDMI out2 port, while the HDMI out1 port is used for the latest 4K HDR or Dolby Vision video. [A powerful HDMI audio extractor] The UHD1X2SA also acts as an advanced HDMI audio extractor with three audio outputs: HDMI, optical digital audio, and stereo 3.5 mm analog output for headphones. The HDMI audio output supports all HDMI V 2.0 audio formats; the optical audio output supports all audio formats up to DD/DTS 5.1CH and DD+; the 3.5 mm audio output supports incoming HDMI stereo audio format. When used as an audio extractor, it can accommodate both older 1080P generation and current HDMI v 2.0 4K HDMI receivers. [8 custom pre-programmed settings] These enable a wide range of audio and video applications, offering great versatility and multi-functionality, with exceptional flexibility at a highly competitive price
