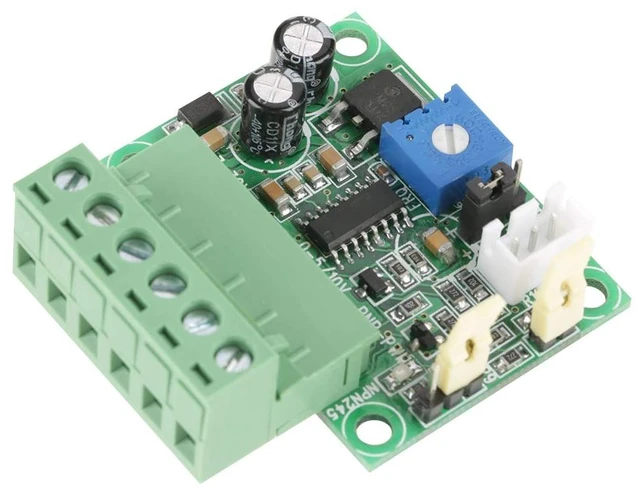

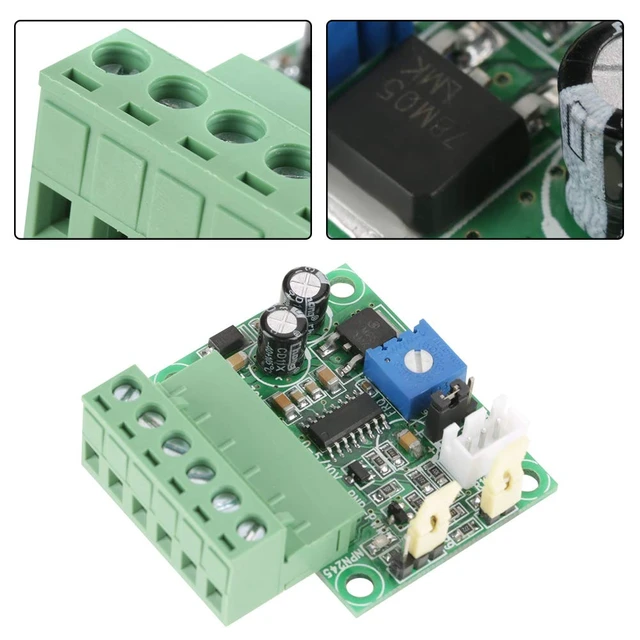

Analog Voltage To Pwm Converter, 0-5V/0-10V Analog Input Voltage To 0-100% Pwm 2Khz20Khz Converter Module
Limited time offer, ends 10/21 By Myriad Mart
- APPLICATION: The voltage-to-PWM module is used for PWM motor speed control interface circuits, instrument AD interface conversion, and other applications that need to convert voltage to PWM. FUNCTION: This module can convert 0-5V or 0-10V analog input voltage into 0-100% PWM. The default function is to convert 0-10V to 0-100% 2KHZ PWM. The output frequency can be set by adjusting the potentiometer as needed. FREQUENCY RANGE: The PWM frequency range is 2KHZ-20KHZ, the maximum value is 20KHZ, and the default minimum value is 2KHZ. PWM and voltage can be directly proportional (positive phase output) or inversely proportional (negative phase output). ADJUSTABLE FREQUENCY: The output PWM frequency is adjustable from 2KHZ to 20KHZ; there are 11 gears, corresponding to 2KHZ, 4KHZ, 6KHZ, 8KHZ, the maximum is 20KHZ, and the default frequency is 2KHZ. TWO KINDS OF OUTPUT: PWM has PNP-PWM output and NPN-PWM output; PNP-PWM output has only 5V level, NPN-PWM output has 5V and 24V level. NPN-PWM output supports common cathode connection and common anode connection, with two levels of 5V and 24V. When outputting 24V level, a 24V power supply is required. For PNP-PWM output, the level can only be 5V
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
APPLICATION: The voltage-to-PWM module is used for PWM motor speed control interface circuits, instrument AD interface conversion, and other applications that need to convert voltage to PWM.
FUNCTION: This module can convert 0-5V or 0-10V analog input voltage into 0-100% PWM. The default function is to convert 0-10V to 0-100% 2KHZ PWM. The output frequency can be set by adjusting the potentiometer as needed.
FREQUENCY RANGE: The PWM frequency range is 2KHZ-20KHZ, the maximum value is 20KHZ, and the default minimum value is 2KHZ. PWM and voltage can be directly proportional (positive phase output) or inversely proportional (negative phase output).
ADJUSTABLE FREQUENCY: The output PWM frequency is adjustable from 2KHZ to 20KHZ; there are 11 gears, corresponding to 2KHZ, 4KHZ, 6KHZ, 8KHZ, the maximum is 20KHZ, and the default frequency is 2KHZ.

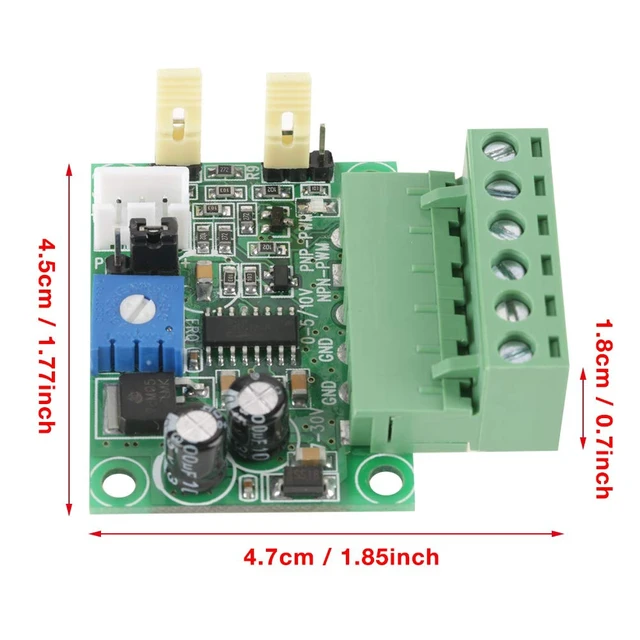

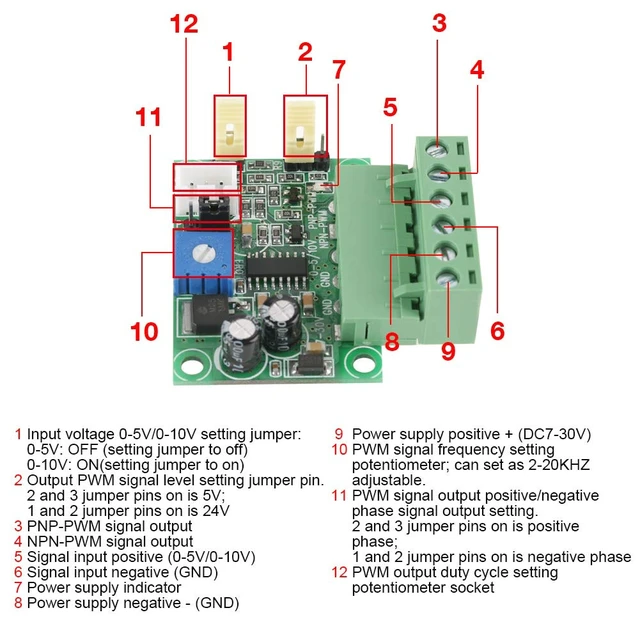

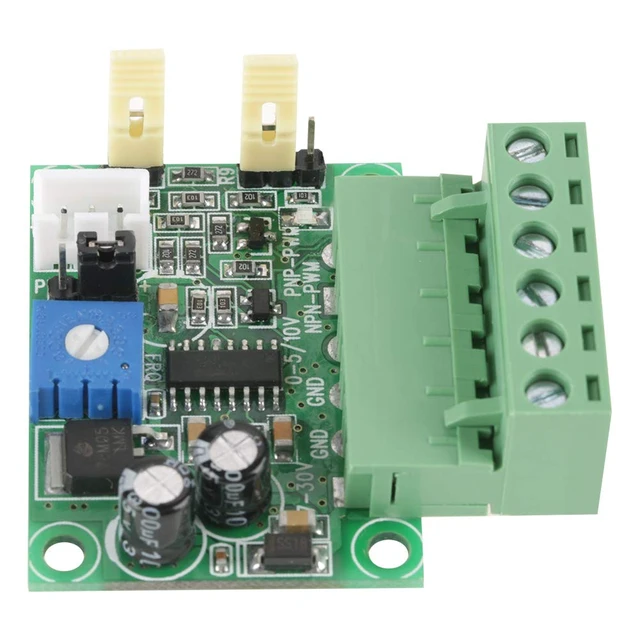

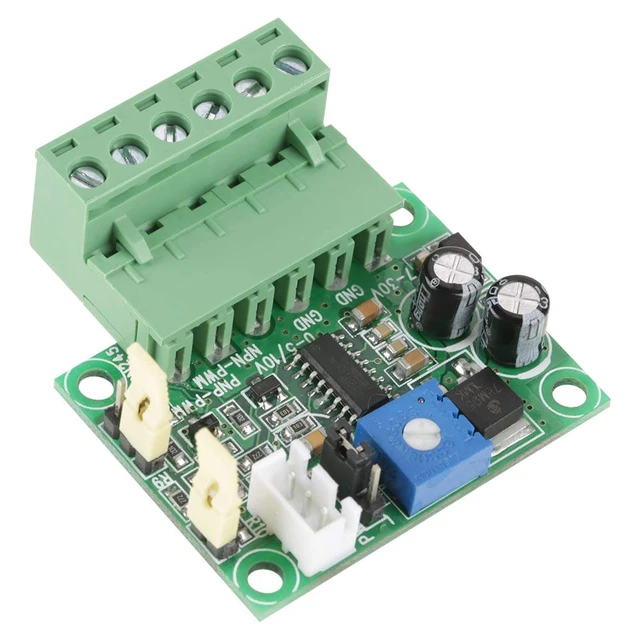

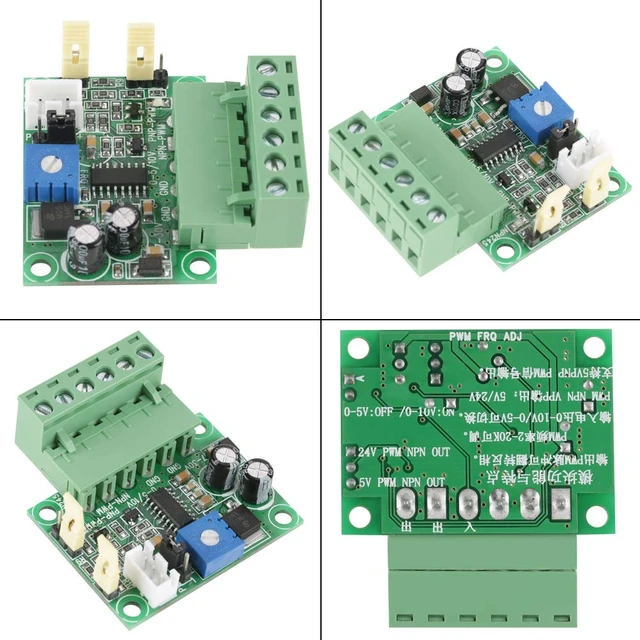

TWO KINDS OF OUTPUT: PWM has PNP-PWM output and NPN-PWM output; PNP-PWM output has only 5V level, NPN-PWM output has 5V and 24V level. NPN-PWM output supports common cathode connection and common anode connection, with two levels of 5V and 24V. When outputting 24V level, a 24V power supply is required. For PNP-PWM output, the level can only be 5V
FUNCTION: This module can convert 0-5V or 0-10V analog input voltage into 0-100% PWM. The default function is to convert 0-10V to 0-100% 2KHZ PWM. The output frequency can be set by adjusting the potentiometer as needed.
FREQUENCY RANGE: The PWM frequency range is 2KHZ-20KHZ, the maximum value is 20KHZ, and the default minimum value is 2KHZ. PWM and voltage can be directly proportional (positive phase output) or inversely proportional (negative phase output).
ADJUSTABLE FREQUENCY: The output PWM frequency is adjustable from 2KHZ to 20KHZ; there are 11 gears, corresponding to 2KHZ, 4KHZ, 6KHZ, 8KHZ, the maximum is 20KHZ, and the default frequency is 2KHZ.
TWO KINDS OF OUTPUT: PWM has PNP-PWM output and NPN-PWM output; PNP-PWM output has only 5V level, NPN-PWM output has 5V and 24V level. NPN-PWM output supports common cathode connection and common anode connection, with two levels of 5V and 24V. When outputting 24V level, a 24V power supply is required. For PNP-PWM output, the level can only be 5V
