VideoSecu Mounts Tilt TV Wall Mount Bracket for Most 39"- 75" Sony, Vizio, LG, Sharp LCD LED Plasma TV with VESA 200x100, 200x200, 400x400 to 600x400mm BXE

Specialized in high-quality, well-designed mounting solutions, VideoSecu supplies easy-installed mount at cost-effective prices. The black MF607B tilt TV wall mount fits most 32 37 39 40 42 46 47 50 52 55 60 inch LCD LED flat panel screen, some LED up to 75 inch, supports VESA mounting hole pattern up to 600x400mm. It supports screen weight up to 165lbs/75kg. It features heavy duty steel structure together with lightness and easy installation, making it absolutely the best choice for you. This mount provides optimum viewing positions with adjustable tilt 15 degrees forward. Absolutely your best choice!

Specification:
*Fits most 32"~ 60" TV, some LED up to 75" (Please check VESA and Weight)

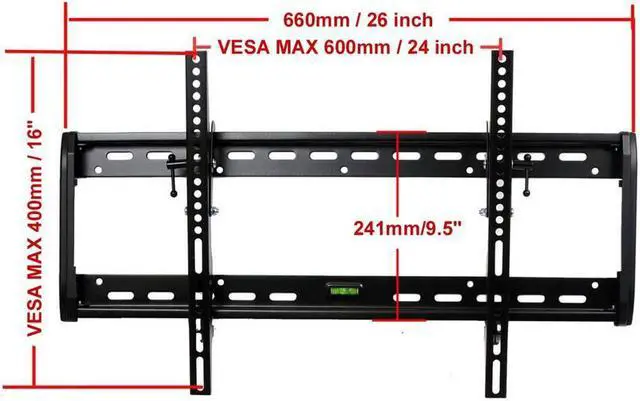

*Fits VESA mounting hole patterns 200x100 /200x200 /300x200 /300x300 /400x200 /400x300 /400x400 /500x300 /500x400 /600x300 /600x400mm or any hole patterns within 200-660mm (4-26 inch) wide and 100-400mm (4-16 inch) high
*Maximum Loading Capacity 165 lbs
*Adjustable 15 degrees tilt forward positions flat panel screen in a perfect viewing angle

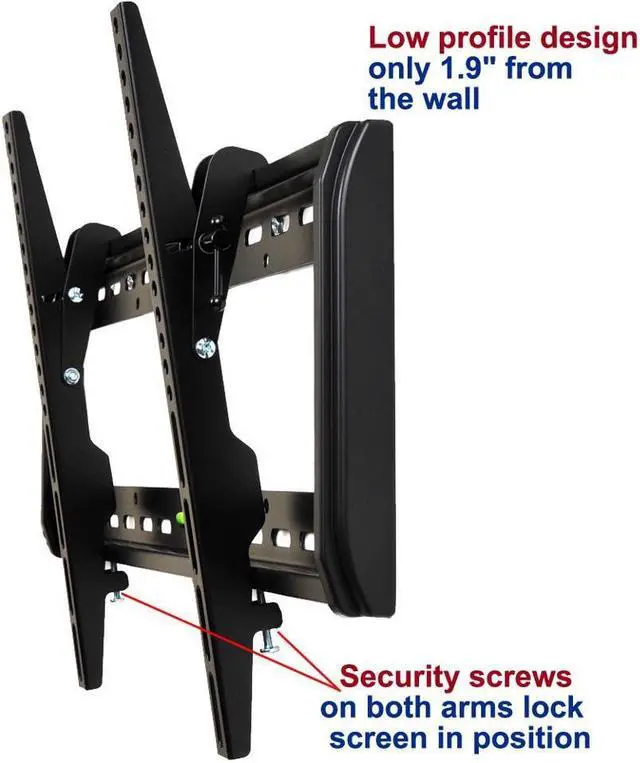

*Low Profile: 1.9" depth from the back of TV to wall
*Mounts to most studs up to 24 inch apart
*Note: This mount does not fit certain Panasonic Plasma TV with VESA 684x300mm

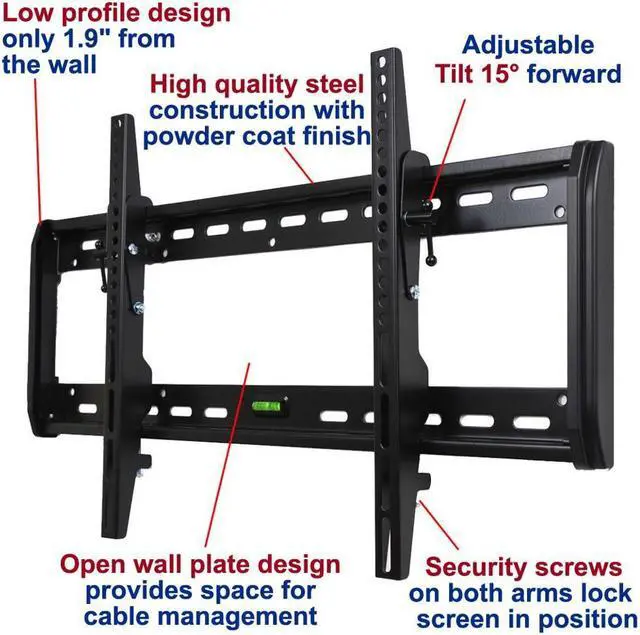

Features:
*Built-in bubble level ensures accurate level mounting
*Heavy-duty steel construction provides stunning strength and durability in classic black finish
*Cable management: open wall plate design provides space for cable management
*Horizontal movement adjustment allows display to shift left or right for perfect TV placement
*Lift and lock design secures the TV into place for additional safety
*Security screws on both arms lock the TV into place for additional safety
*New end caps cover locking for a clean side view

Package contents: TV wall mount, standard mounting hardware, and user manual

Please check whether the mount is suitable for your TV:

1. Please check the weight of your TV. It must be less than 165 lbs.

2. Look at the back of your TV, find the mounting holes and measure horizontal and vertical distance, if the horizontal distance within 24", vertical distance is within 16", then the bracket will work perfect for you.

3. The width of your TV should be 26" above. Otherwise the mount is too wide to hide behind your TV.
*Warning: This mount does not fit 65" or above TVs which were manufactured before 2013
