VideoSecu Tilt TV Wall Mount for VIZIO 32"-70" LED LCD Plasma 4K HDTV D48-D0 M55-D0 E60u-D3 E60-E3 E70-E3 M70-D3 BG3

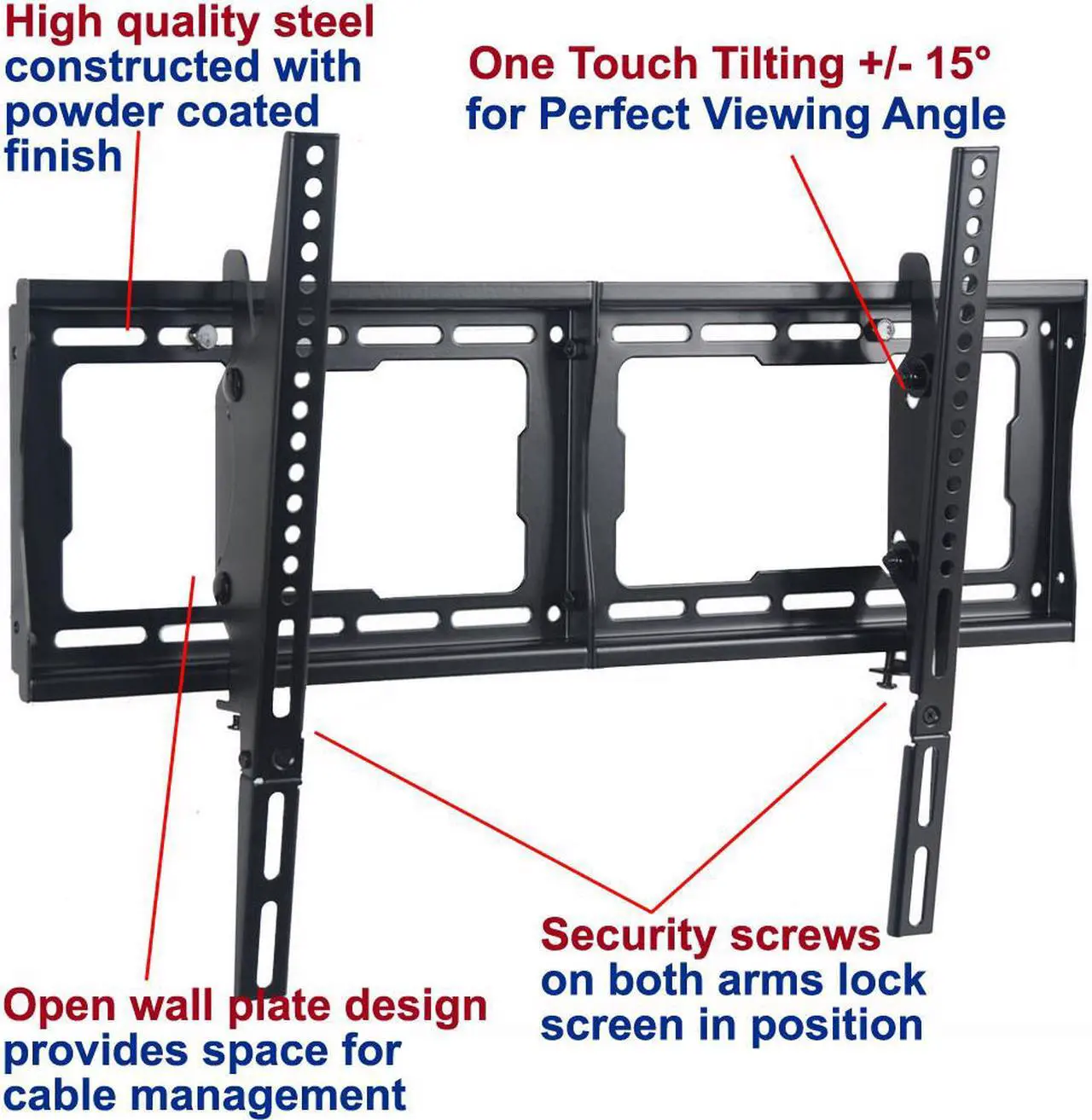

The VideoSecu tilt TV wall mount with easy adjustable one touch tilting places flat panel in a perfect viewing angle without the use of tools. The mount fits most 24-70 inch TVs, some LED up to 75 inch with VESA from 200x100 to 600x400mm (please check VESA and weight). Heavy duty steel construction with powder coated black finish. Rail lock design secures the TV into place for additional safety. Cables and cords are easily managed behind the screen with large access ports in the wall plate. For perfect screen positioning, center the screen by smoothly sliding it along the wall plates horizontal rails.

Assembly required. HDMI cable, 6 inch 3-axis magnetic bubble level, standard mounting hardware and user manual are included!

Specification:
*Fits most 24 - 70" TV some LED screens up to 75" (Please check VESA and Weight)
*Fits VESA mounting hole patterns 600x400/ 500x300/ 400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole patterns within 200-600mm wide and 100-400mm high
*Loading capacity up to 165lbs / 75kg
*Adjustable tilt from -15 degrees to +15 degrees with one touch tilting
*Fit wood studs up to 24 inch wide

Features:
*Adjustable one touch tilting for perfect viewing angle without the use of tools
*Lift and lock system secures the TV into place for additional safety
*Premium quality- constructed with strong and high quality dual steel frames, with durable black powder-coated finish
*Free 6" 3-axis magnetic bubble level for accurate and easy installation
*Horizontal movement adjustment for perfect screen positioning
*Cable management design: large opening in center of back-plate provides space for electrical wires access
*Assembly required
*Note: This mount does not fit certain Panasonic Plasma TV with VESA 684x300mm

Package contents:

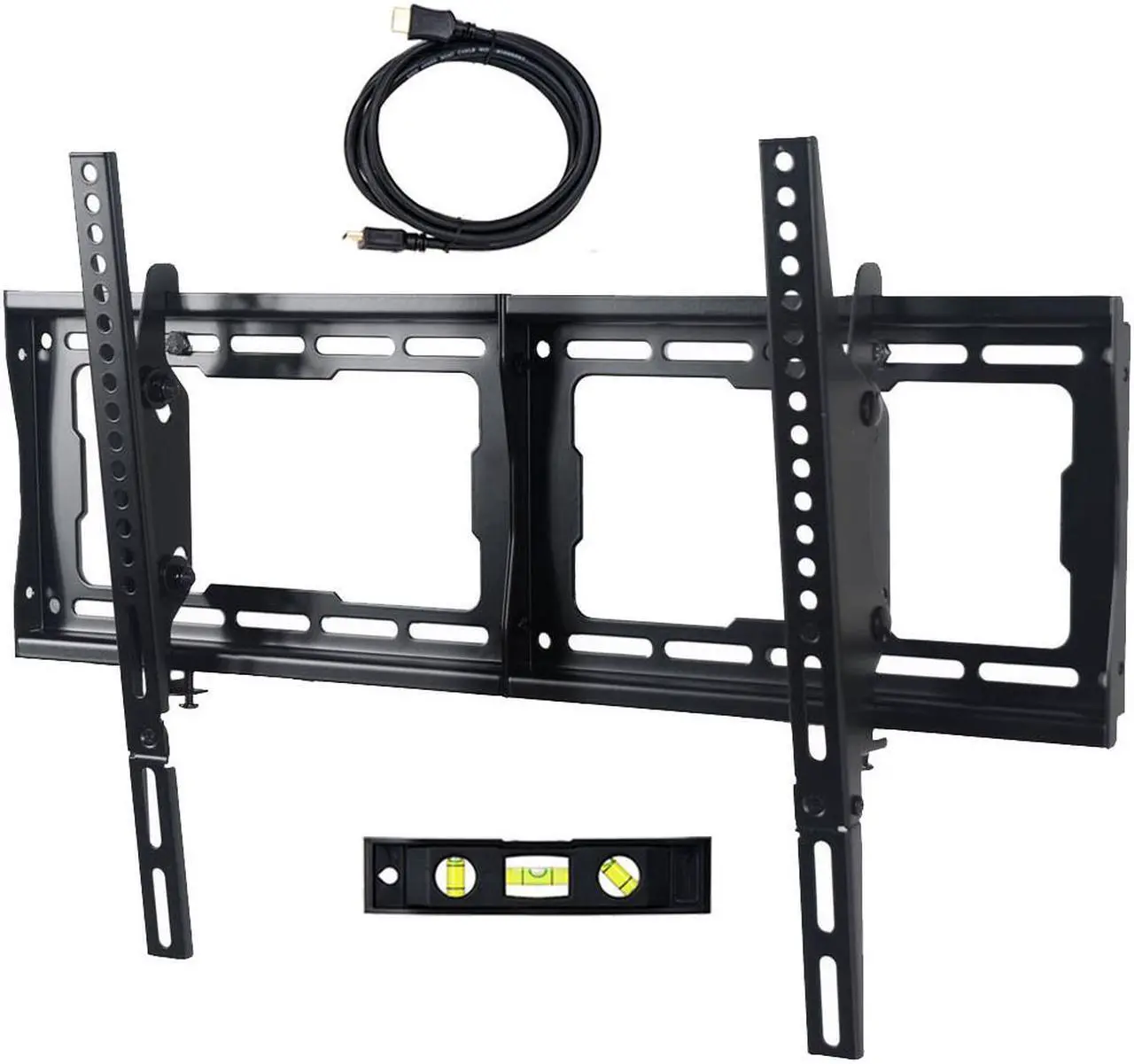

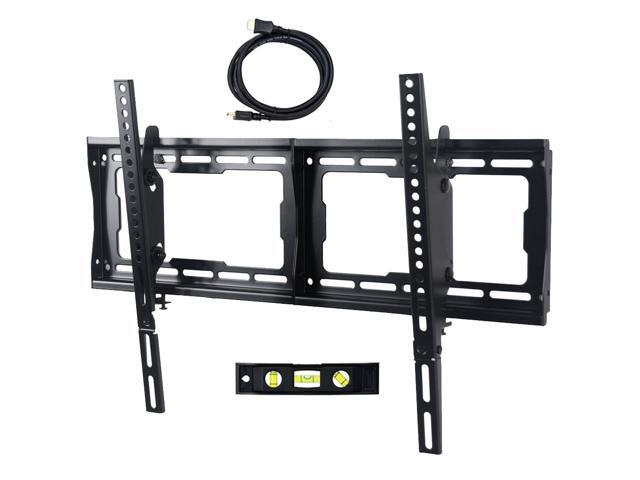

TV wall mount, standard mounting hardware, free 10ft HDMI cable and 6" 3-Axis magnetic bubble level, user manual

Please check the compatibility of the mount for your TV:

1. Please check the weight of your TV; it must be less than 165 lbs.

2. Look at the back of your TV, find the mounting holes and measure width and height, if the width is within 24", height is within 16", then the bracket will work perfect for you.
*Warning: This mount does not fit 65" or above TVs which were manufactured before 2013
