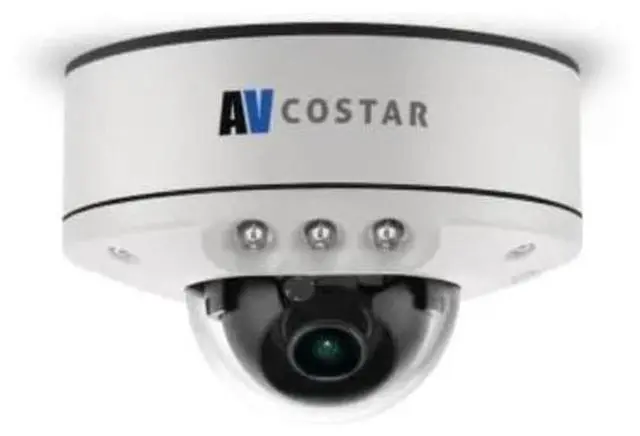

Arecont Vision Conteraip LX 8MP Outdoor Network Dome Camera AV8856DNIR-S

Product Information

• Part Number: AV8856DNIR-S
• Manufacturer: Arecont Vision Costar (AV Costar)
• Product Name: Arecont Vision Conteraip LX 8MP Outdoor Network Dome Camera AV8856DNIR-S
• Model: ConteraIP LX AV8856DNIR-S
• Camera Type: Network Dome Camera
• Resolution: 8 Megapixel (4K)
• Sensor Type: CMOS
• Lens Type: Motorized (Remote Focus/Zoom)
• Day/Night Capability: True Day/Night with IR Cut Filter
• Infrared (IR) Range: Up to 30 meters (98 feet)
• Outdoor Use: Yes (IP66/IP67, IK10 rated)
• Power over Ethernet (PoE): Yes (802.3af)

Product Description

The Arecont Vision ConteraIP LX AV8856DNIR-S is an advanced 8 Megapixel (4K) outdoor network dome camera designed for high-definition surveillance in challenging environments. This camera delivers crystal-clear images with its high-resolution sensor and features a motorized vari-focal lens for flexible field-of-view adjustments, including remote focus and zoom. True Day/Night functionality with integrated IR illuminators provides excellent visibility even in complete darkness up to 30 meters. Built to withstand harsh outdoor conditions, it boasts IP66/IP67 weather resistance and IK10 vandal resistance. The camera supports H.264 and H.265 compression for efficient bandwidth and storage utilization, and offers advanced analytics features like motion detection, tampering detection, and object detection. Power over Ethernet (PoE) simplifies installation by eliminating the need for separate power cables. It's an ideal solution for critical infrastructure, large commercial spaces, and public areas requiring robust, high-resolution surveillance.

Product Specifications

• Color: White (housing) / Black (lens module)
• Dimensions (DxH): 5.59" x 4.67" (142mm x 118.5mm)
• Weight: 2.42 lbs (1.1 kg)
• Image Sensor: 1/2.8" Progressive Scan CMOS
• Minimum Illumination: Color: 0.1 lux; B/W: 0 lux (with IR LED On)
• Lens Focal Length: 2.8 mm to 12 mm Motorized Varifocal
• Iris Type: P-Iris
• Field of View: Horizontal: 108° - 42°
• Video Compression: H.265, H.264 (AVC/SVC), MJPEG
• Frame Rate: Up to 20 fps at 3840x2160 (8MP); Up to 30 fps at 2592x1944 (5MP)
• Streaming Capability: Quad-Streaming
• Wide Dynamic Range (WDR): Up to 120 dB
• Network Interface: 10/100 Mbps Ethernet
• Protocols: IPv4, HTTP, HTTPS, TCP, RTSP, RTP, UDP, UPnP, FTP, RTCP, DHCP, ARP, DNS, DDNS, NTP, IGMP, ICMP, ONVIF (Profile S, G, T)
• Edge Storage: Micro SD/SDHC/SDXC card slot (up to 256GB, card not included)
• Alarm Input/Output: 1 In / 1 Out
• Audio: Two-way audio support (line in/out)
• Power Input: PoE (IEEE 802.3af Class 3) or 12V DC
• Power Consumption: Max 9.5 W (PoE)
• Operating Temperature: -40°C to 50°C (-40°F to 122°F)
• Environmental Protection: IP66/IP67 rated (Dust and Water Resistant), IK10 rated (Vandal Resistant)
• Certifications: CE, FCC, RoHS, UL, IK10, IP66, IP67, ONVIF Profile S/G/T
