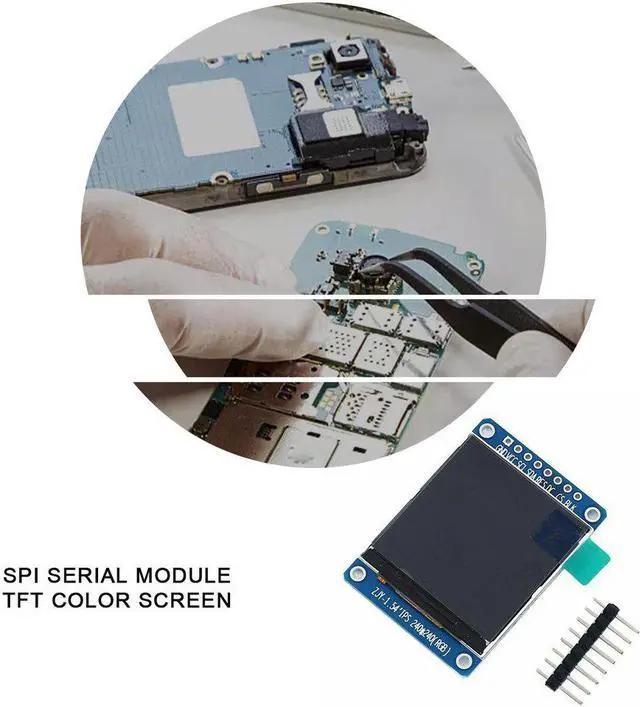

1.54 Inch 240X240 Full Color Screen LCD Digital Display Module SPI Serial Port Module TFT Color Screen St7789 Drive

Origin:CN(Origin)
Display Size:1" - 2"
Compatible Audio & Video Equipment Style:Display Equipment
Certification:NONE
Weight:15g
Package:Yes
Model Number:ST7789
Size:1.54inch
Bundle:Bundle 1
Display:IPS LCD liquid crystal display
Working voltage:3.3V
Resolution:240 * 240
Interface type:SPI output
Driver chip:ST7789
Number of needles:8
Working temperature:-20~70

Features:
1. The display module has a 1.54inch IPS LCD liquid crystal display screen, which can show you clear content.
2. The driver chip of the serial port module is ST7789, and the interface type is SPI output.

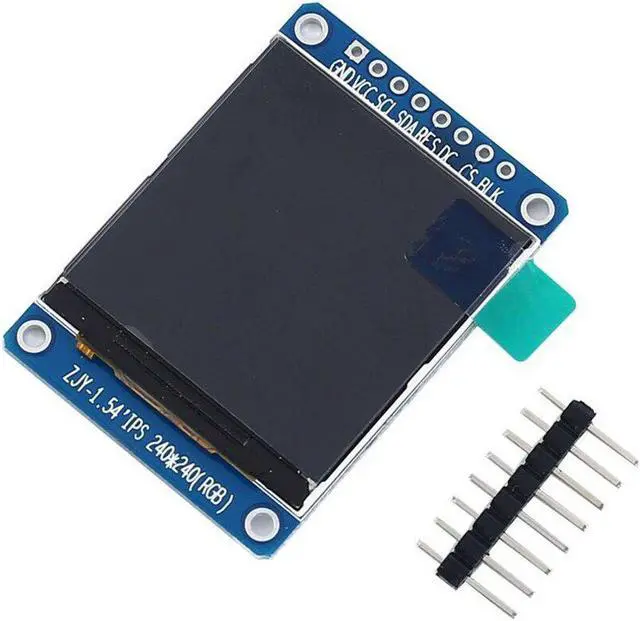

3. The module has eight common pins, which are GND, VCC, SCL, SDA, RES, DC, CS, BLK.
4. The module with a working voltage of 3.3v has precision machining, moderate weight and high mechanical strength.
5. The appearance is small and exquisite, the size of this module is 44 * 32 * 4mm, very small and easy to operate.
Description:

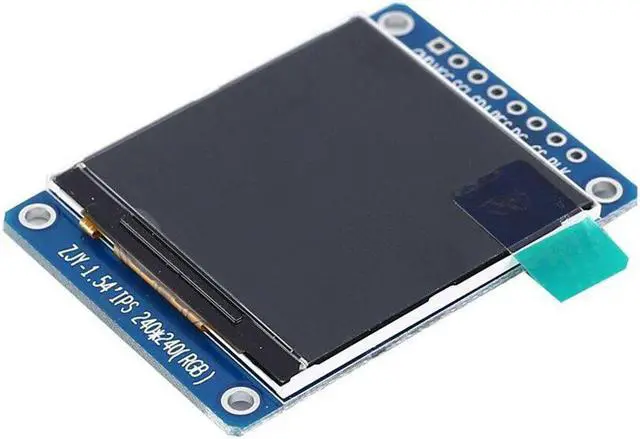

It is a high-definition 1.54-inch IPS LCD liquid crystal display module, and driver chip is ST7789 and SPI output.
Specifications:
Display size: 1.54inch
Display: IPS LCD liquid crystal display
Working voltage: 3.3V
Resolution: 240 * 240
Interface type: SPI output
Driver chip: ST7789
Number of needles: 8
Working temperature: -20~70
Working humidity: 5%~95%RH
Size: 44 * 32 * 4mm
Common pin:
GND: Power negative
VCC: 3.3V positive input power supply
SCL: SPI terminal for clock
SDA: SPI data terminal
RES: OLED screen reset terminal (need to reset after power on)
DC: command / data selection terminal
CS: Trigger signal (low level available)
BLK: Black light control (low level available)
Package Included:
1 * IPS LCD liquid crystal display module
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
