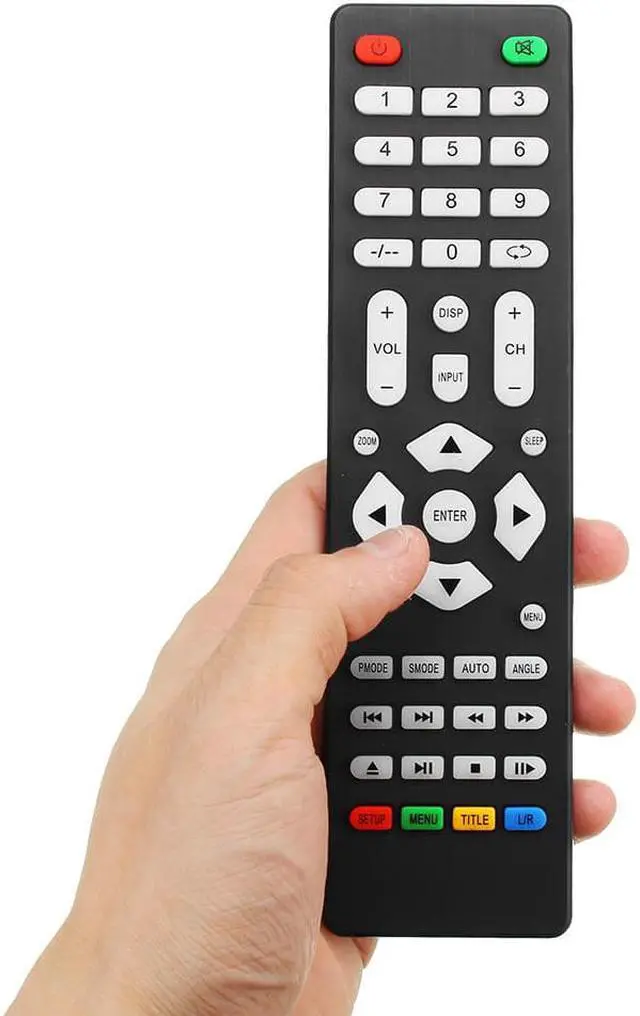

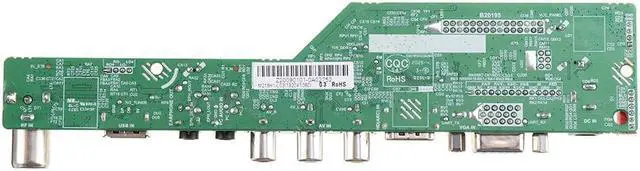

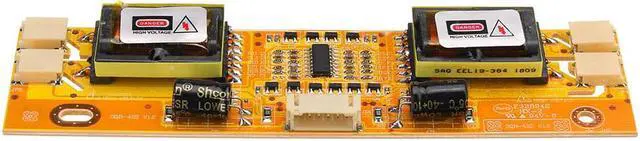

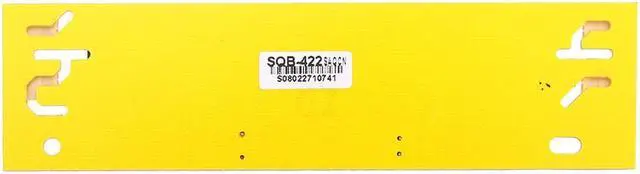

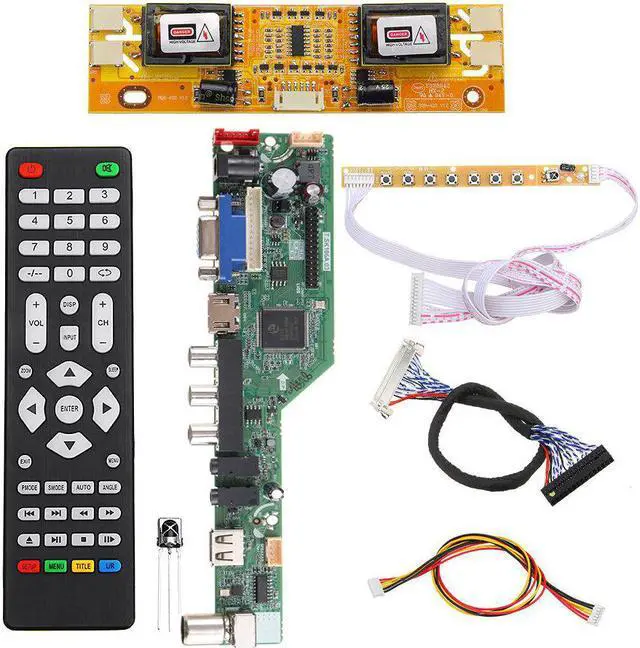

T.SK105A.03 Universal LCD LED TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Button+2ch 8bit 30 LVDS Cable+4 Lamp Inverter

T.RD8503.03 Firmware:

Click here to open

T.V53.03

Manual:

Click here to open

T.V53.03 Firmware:

Click here to open

T.SK106A.03 Manual: Click here to open

T.SK106A.03 Firmware:

Click here to open

New Version T.SK105A.03 Manual: Click here to open

New Version T.SK105A.03 Firmware: Click here to open

Note: Since the driver board model is updated frequently, the appearance and chip will be different, please refer to the actual received. If you mind this, please buy carefully.

Please note before buying:

1. This product is compatible with most models. Customers only need to confirm that the LCD screen is compatible with the following resolutions, without repeating the inquiry model. (Firmware burns the corresponding resolution)

2. This product needs to burn the firmware by yourself before it can be used. If you don't know how to burn the firmware, unfortunately, it is recommended not to buy. Thank you for your understanding.

3. This kit comes with a 2ch 8bit 30pins screen cable by default. If it is not compatible with your screen, please purchase a matching screen cable separately.

4. Be sure to use the correct power supply. If the current is too low/too high, it will fail to boot, or even burn out the chip and damage the motherboard.

Power Adapter: DC 12V 3-5A

5.

Please pay attention to the choice of screen voltage 3.3V/5V/12V, and change the position of the cap according to different voltages.

Only supports the resolution of:

1920x1200

1920x1080

1680x1050

1680x945

1600X1200

1600x900

1400X1050

1440x900

1366x768

1280x1024

1280x854

1280x800

1280x768

1280x720

1024x768

1024x600

800x600
