Main image of GIGABYTE GA-EP45T-UD3LR LGA 775 Intel P45 ATX Intel Motherboard

Alt view image 2 of 5 - GIGABYTE GA-EP45T-UD3LR LGA 775 Intel P45 ATX Intel Motherboard

Alt view image 3 of 5 - GIGABYTE GA-EP45T-UD3LR LGA 775 Intel P45 ATX Intel Motherboard

Alt view image 4 of 5 - GIGABYTE GA-EP45T-UD3LR LGA 775 Intel P45 ATX Intel Motherboard

Alt view image 5 of 5 - GIGABYTE GA-EP45T-UD3LR LGA 775 Intel P45 ATX Intel Motherboard

Shop All GIGABYTE Products | Visit DoDo DIY Store

GIGABYTE GA-EP45T-UD3LR LGA 775 Intel P45 ATX Intel Motherboard

Used - Good

Intel P45
Celeron / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium
DDR3 2200(O.C)/1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	GA-EP45T-UD3LR

Supported CPU
CPU Socket Type	LGA 775
CPU Type	Celeron / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium
FSB	1600/1333 MHz

Chipsets
Chipset	Intel P45
South Bridge	Intel ICH10R

Onboard Video
Onboard Video Chipset	None

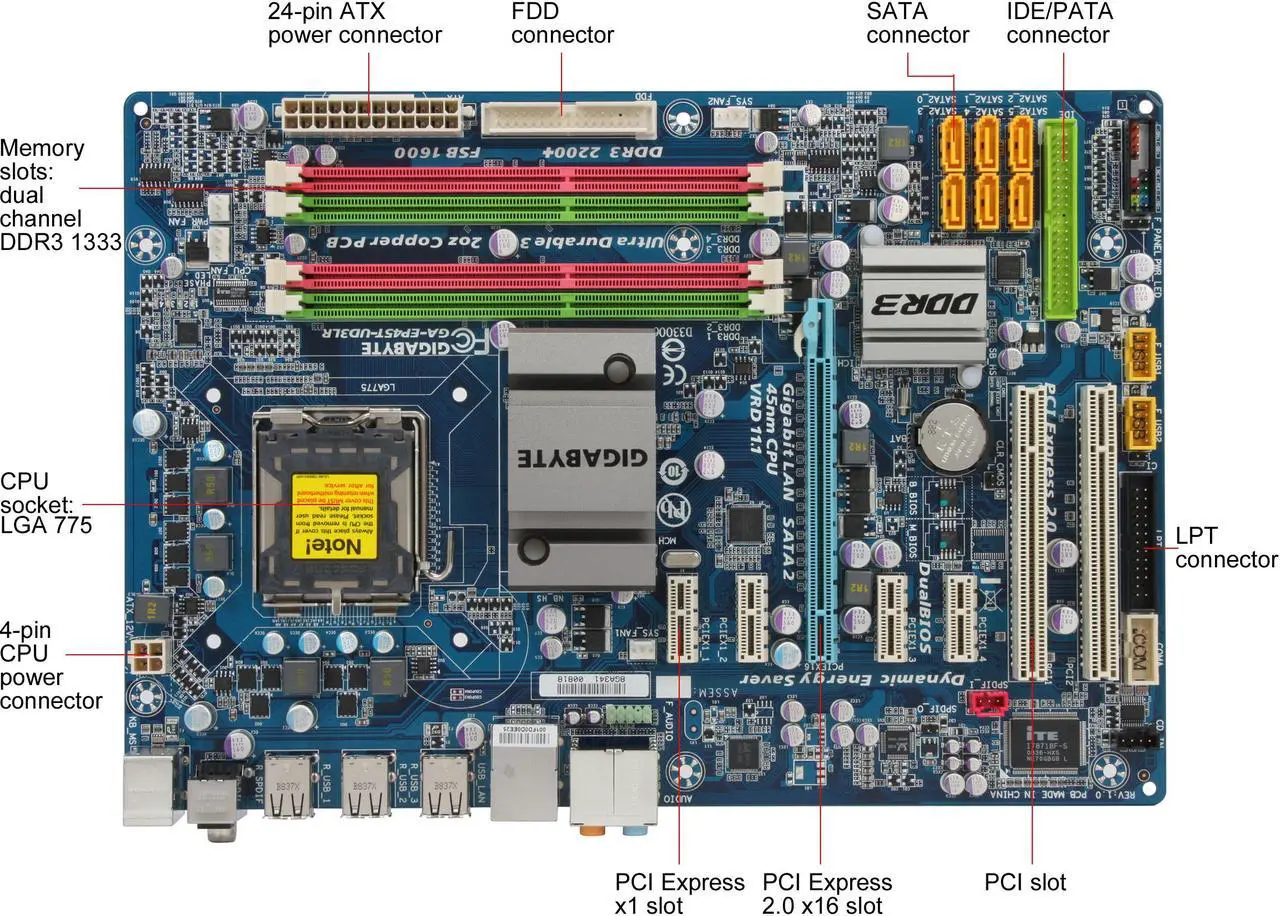

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 2200(O.C)/1333
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	4 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC888
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111C
Max LAN Speed	1Gbps

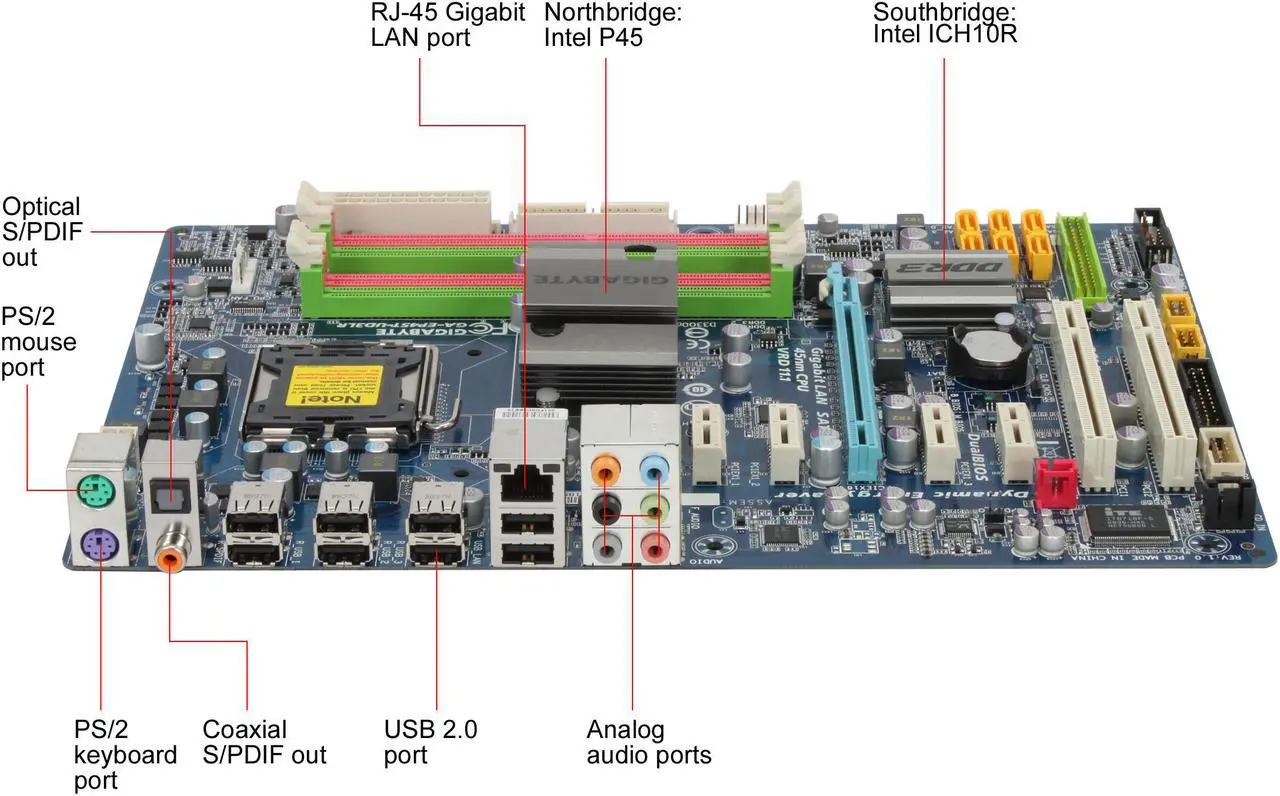

Rear Panel Ports
Back I/O Ports	1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1
PS/2	2
USB 1.1/2.0	8 x USB 2.0
S/PDIF Out	1 x Optical, 1 x Coaxial
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 8.3"
Power Pin	24 Pin
