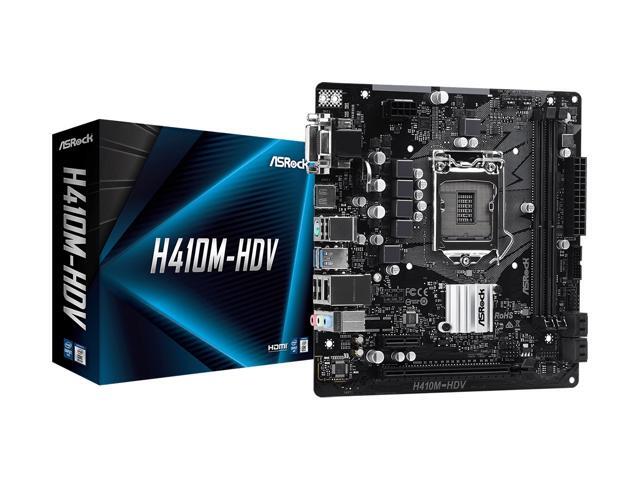

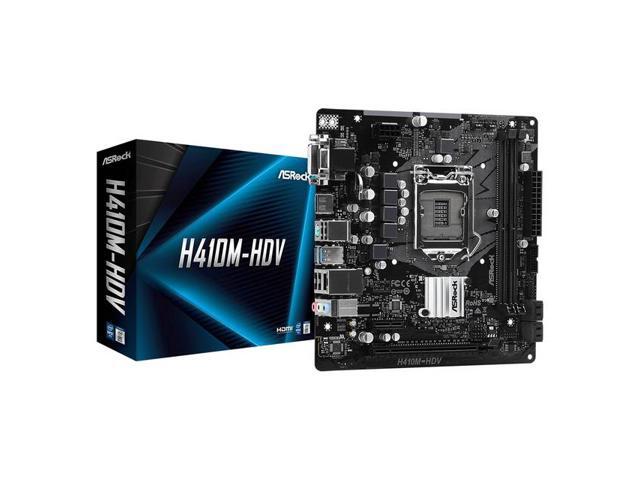

ASRock H410M-HDV LGA 1200 Intel H410 SATA 6Gb/s Micro ATX Intel Motherboard

OUT OF STOCK.
  • Intel H410
  • Supports 10th Gen Intel Core Processors (Socket 1200)
  • Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory
Specs
Reviews

Learn more about the ASRock H410M-HDV

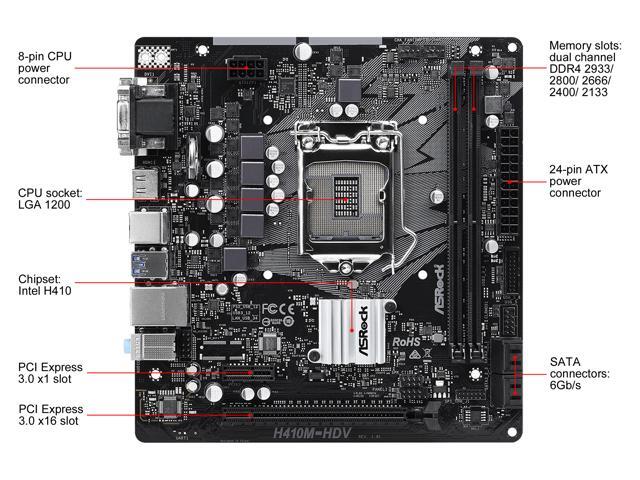

Model
Brand ASRock
Model H410M-HDV
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU Technologies Turbo Boost Technology 3.0
Chipsets
Chipset Intel H410
Onboard Video
Onboard Video Chipset Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
** VP9 10bit and VC-1 are for decode only.
** VP8 and VP9 encode are not supported by Windows OS.
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock's website for more information.
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported 64GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16 Slot*
* Supports NVMe SSD as boot disks
PCI Express x1 1 x PCI Express 3.0 x1 Slot
Storage Devices
SATA 6Gb/s 4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Front Panel Audio Connector

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 7.8" x 7.4"
Power Pin 1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
Features
Features Unique Feature:
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment

Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
* These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor:
- Temperature Sensing: CPU, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
- CASE OPEN detection
- CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment

OS:
- Microsoft Windows 10 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Packaging
Package Contents Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Additional Information
Date First Available June 01, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
