Feature: Protractor uses the common Baerwald alignment method to set a phono cartridge's offset angle and null points
Proper alignment is critical for peak cartridge performance, providing optimal tracking and minimizing distortion
Suitable for tonearms with an effective length between 222 mm (8.7") and 250 mm (9.8")
Feature: Universal 1/2"-mount headshell for 4-pin turntable cartridges
Ultra-lightweight aluminum die-cast body keeps vibration to the bare minimum
Finger lift enables precise stylus placement
Equipped with color-coded lead wires
Includes mounting screws
Feature: The AT-VMx series brings new warmth and realism to Audio-Technica's premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that's alive with musical detail.
Aligning with our founder's belief that high-quality audio should be accessible to all, the AT-VMx Series is unmatched in delivering a truly affordable high-fidelity audio experience.

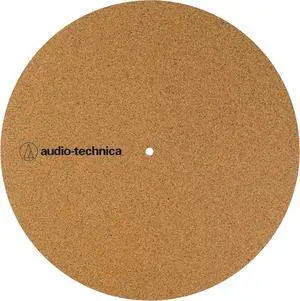

Feature: Cork slipmat reduces vibrations and unwanted resonance, ensuring clearer audio playback
Provides a stable platform for records, minimizing slippage during playback
At 1.6 mm, the slipmat offers a good balance between flexibility and support
With a diameter of 295 mm (11.6") and thickness of 1.6 mm, this slipmat will fit most standard turntables
Doesn't attract dust or shed particles like some other cork or felt mats, keeping records and turntables cleaner over time
Specification: Frequency Response: 20 to 20,000 Hz
Vertical Tracking Angle: 20°
Tracking Force: 4.5 to 5.5 g (5.0 g standard)
Stylus Construction: Conical bonded (3.0 mil)
Recommended Load Impedance: 47 k ohms
Coil Impedance: 1.6 k ohms (1 kHz)
DC Resistance: 375 ohms
Coil Inductance: 240 mH (1 kHz)
Output Voltage: 4.7 mV (1 kHz, 5 cm/sec.)
Horizontal/Vertical Output Ratio: 20 dB (1 kHz)
Cantilever: Aluminum pipe
Static Compliance: 23 x 10-6 cm/dyne
Feature: AT-VMx dual moving magnet cartridge with 3.0 mil conical bonded stylus
3.0 mil conical bonded stylus designed for playing 78 RPM records
Paratoroidal coils improve generating efficiency for enhanced transient response
PCUHD (Pure Copper Ultra High Drawability) coils - and fewer coil turns - deliver highly res...
Specification: Frequency Response: 20 to 20,000 Hz
Channel Separation: 24 dB (1 kHz)
Vertical Tracking Angle: 20°
Tracking Force: 1.8 to 2.2 g (2.0 g standard)
Stylus Construction: Elliptical bonded
Recommended Load Impedance: 47 k ohms
Coil Impedance: 3.2 k ohms (1 kHz)
DC Resistance: 750 ohms
Coil Inductance: 480 mH (1 kHz)
Output Voltage: 5.0 mV (1 kHz, 5 cm/sec.)
Output Balance: 1.5 dB (1 kHz)
Cantilever: Aluminum pipe
Static Compliance: 23 x 10-6 cm/dyne
Dynamic Compliance: 7 x 10-6 cm/dyne (100 Hz)
Feature: AT-VM520xEB Dual Moving Magnet Cartridge
- AT-VMx dual moving magnet cartridge with 0.3 x 0.7 mil elliptical bonded stylus
- 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with accuracy for outstanding audio reproduction
- Paratoroidal coils...
