Specifications: Antenna Gain: 13 dBi
Application / Usage: Base Station
Form Factor: Pole
Product Family: airMAX Omni
Product Type: Antenna
USB: No
Application / Usage: Base Station
Certifications & Standards: EN 302 326 DN2
Compatibility: Ubiquiti RocketM Basestation
Package Contents:
Ubiquiti
Universal Pole Mount
RocketM Bracket
Weatherproof RF Jumpers
Directivity: Omni-directional
Frequency: 2.35 GHz to 2.55 GHz
Frequency Band Type: UHF
Polarization: Dual Linear
Survival Wind Speed: 2200 in/s
Specifications: Form Factor: Pole
Maximum Antenna Range: 31.1 Mile
Product Family: RocketDish
Product Type: Antenna
Number of Connectors: 1
USB: No
Antenna Gain: 30 dBi
Frequency: 5.10 GHz to 5.80 GHz
Frequency Band Type: SHF
Polarization: Dual Linear
Survival Wind Speed: 2112 in/s
Application/Usage: Wireless Data Network
Certifications & Standards: ETSI: EN 302 326 DN2
Package Contents:
AirMax Carrier Class 2x2 PtP Bridge Dish Antenna
Universal Pole Mount
Rocket M Bracket
Weatherproof RF Jumpers
Specifications: Enclosure: Anodized Aluminum
Management Interface: UniFi Management Portal; UniFi SDN; UniFi Protect
Hard Drive Capacity: 1TB 2.5" SATA HDD (user-upgradeable)
Processor: APQ8053 8 Core with 3GB RAM
eMMC Memory: 32GB
Networking Interface: 1 x 10/100/1000 Ethernet Port
Buttons: 1 x Power; 1 x Reset
LEDs: 1 x Power, White / Blue
Power Method: Standard 802.3af PoE; Quick Charge 2.0/3.0 Power Adapter (9V DC, 2A)
Supported Voltage Range: Standard 802.3af PoE or 9V DC, 2A
Max. Power Consumption: 12.95W (PoE); USB-C Power
Dimensions: 5.16" x 1.07" x 5.28"
Weight: 1.28 lbs.

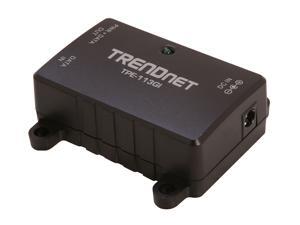

Specifications: Standard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Ethernet
1 x 10/100/1000Mbps DATA-IN (Data only)
1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power)
Network Media:
10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters
Gigabit: UTP/STP Cat 5e and 6 up to 100 meters
Data Lines:
Pair 1: Pin 1, 2
Pair 2: Pin 3, 6
Power:
Input: 100~240V, 50~60Hz, 0.4A max.
Output: 48V DC, 0.4A 18W max.
Power Consumption: 15.4 Watts (max.)
Dimensions (W x D x H): 70 x 45 x 25mm (2.75 x 1.8 x 1 in.)
Weight: 45 g (1.6 oz.)
Specifications: Networking Interface:
PoE In (802.3af): 1 x Gigabit RJ45 Port
PoE Out (24V Passive): 1 x Gigabit RJ45 Port
Operating Temperature: 0 to 70 degree C (32 to 158 degree F)
Power Input: 48V, 802.3af
Max. Power Output: 24V, 0.5A
Power Method:
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Specifications: Interface
LAN: 1 x RJ45 STP, "Data" Input Port
PoE: 1 x RJ45 STP, "Data + Power" Output Port
AC Connector: 1 x AC input power socket, IEC-320 C6
Network Cable
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328 ft.)
802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328 ft.)
LED Indicator
System: Power x 1 (green)
PoE Port: Active, PoE ready/in-use x 1 (green)
Data Rate: 10/100/1000Mbps
Unit Output Voltage: DC 56V, 1.08A
Power Requirements: 100 - 240V AC at 50/60Hz, 1.5A max.
Power Consumption: 60 watts max.
Temperature
0 - 50 degrees Celsius (Operating)
-10 - 70 degrees Celsius (Storage)
Humidity: 5 - 95%, relative humidity, non-condensing
PoE Standard:
Ultra PoE over 4-pair UTP cable
IEEE 802.3at Power over Ethernet Plus End-span/Mid-span PSE
PoE Power Supply Type: End-span + Mid-span ...
Specifications: Interfaces:
PoE IN:1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE "Data + DC power" in auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE OUT: 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE "Data + DC power" out auto MDI/MDI-X, auto-negotiation RJ45 connector
Power over Ethernet
PoE Standard:
"PoE In" Port: IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD
Per "PoE Out" Port:
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
PoE Power Supply Type: End-span (Type A)
PoE Power:
"PoE In" Port: 52 - 56V DC, max. 30.8 watts
Per "PoE Out" Port: 44 - 55V DC, max. 25 watts
Power Pin Assignment:
"PoE In" Port: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Per "PoE Out" Port: 1/2 (+), 3/6 (-)
Data Rate: 10/100/1000Mbps
MAC Address Table: 2K
Data Bu...
Specifications: Power Method: 100-240V AC / 50-60 Hz, Universal Input
Power Supply:
54V, 150W AC/DC
Installed in PSU 1
Maximum Power Output:
150W (1 PSU module)
300W (2 PSU modules @ 150 W each)
LEDs:
Power: System on / off
Ethernet: Management port link
PSU: PSU1+PSU2, PSU1 / PSU2
Networking Interface: 1 x RJ-45 Fast Ethernet port
Rack Mount: Yes, 1U high
ESD/EMP Protection: Air +/- 24 kV; Contact +/- 24 kV
Specifications: Interface: LAN:
1 x RJ-45 STP, "Data" Input Port
POE: 1 x RJ-45 STP, "Data + Power" Output Port
AC Connector: 1 x AC Input power socket, IEC-320 C6
Network Cable:
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328 ft.)
802.3af / at PoE(15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328 ft.)
LED Indicator:
System: Power x 1 (Green)
PoE Port: Active, PoE ready / In Use x 1 (Green)
Data Rate: 10/100/1000 Mbps
Unit Output Voltage: DC 50-57V, 1.2A
Power Requirements: 100-240V AC @ 50/60 Hz, 1.5A max.
Power Consumption: 60 watts max.
PoE Standard:
Ultra PoE over 4-pairs UTP,
High Power over Ethernet End-Span / Mid-Span PSE
PoE Power Supply Type: End-Span + Mid-Span
Power Pin Assignment:
Pair 1 End-Span: 1/2 (+), 3/6 (-)
Pair 2 Mid-Span: 4/5 (+), 7/8 (-)
PoE Power Output:
DC 50-57V/60-w...
