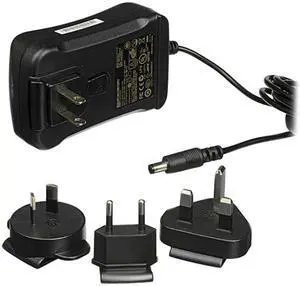

Specification: Compatible Devices:
HyperDeck Studio Recorder, UltraStudio Pro & 3D Capture and Playback devices, ATEM Studio Converter, Blackmagic Cinema Camera 2.5K (EF/MFT models), SmartView Duo and HD Monitors, ATEM Television Studio Production Switcher, SmartScope Duo 4K, and Blackmagic Production Camera 4K.
Input:
100 to 240 VAC, 50/60 Hz, 67 to 92 VA, 0.8 A
Output:
12 V, 2.5 A
Power:
30W
Feature: The Blackmagic Design Universal Videohub 450W Power Card allows you to add up to three external 12V power supply bricks (not included) to the Univeral Videohub router frame, as needed. Three 12V/150W power supplies offer enough power for 72 x 72 BNC SDI or optical fiber routing.
Distance: Maximum Distances - (1080i only)
CAT5E (stranded) - 40m (130 ft.)
CAT5E (solid) - 50m (165 ft.)
CAT6 (stranded or solid) - 50m (165 ft.)
Max Distance: 50m / 165 ft.
Resolution Support: Maximum Digital Resolutions: 1080p / 1920x1080
Supported Resolutions:
1080i
- Cat6 (stranded or solid) - up to 50m
- Cat5e (solid) - up to 50m
- Cat5e (stranded) - up to 40m
1080p
- Cat6 (solid or stranded) - up to 40m
- Cat5 (solid) - up to 20m
- Cat5 (stranded) - up to 16m
See product manual for further details
HDMI: Local Unit Connectors:
1 x HDMI (19-pin) Female
Remote Unit Connectors:
1 x HDMI (19-pin) Female
Network Interface: Local Unit Connectors:
2 x RJ-45 Female
Remote Unit Connectors:
2 x RJ-45 Female
