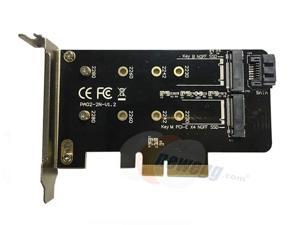

Compatibility: PCIe 3.0 or PCIe 2.0 x4, x8, or x16 slot; M Key PCIe M.2 NMVe SSD (2230/2242/2260/2280mm)
Specifications: Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 M.2. Supports M.2 NGFF PCIe 80mm, 60mm, 42mm SSDs.
Features: Connector: 1x M-key (type 2280-D5-M) M.2 socket for M.2 NGFF PCIe based SSD. Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot. PCI Express 3.0 x4 Lane Host adapter Low Profile Form Factor board with both Regular size and Low Profile bracket included. Supports
Compatibility: Compatible Models:
Visit www.asus.com for latest compatible model lists.
Maximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards. Please see the FAQ link for further information:
https://www.asus.com/support/FAQ/ 1037507

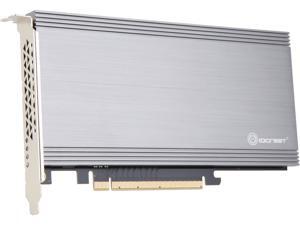

Specifications: Interface:
PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps.
External Connectors:
4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0)*
* Supports PCIe M.2 storage devices only.
LED & Switch:
1 x M.2 FAN Power Switch
4 x M.2 access LEDs
Thermal Solution :
Active fan with heatsink, support fan control from MB chassis fan header
Dimensions:
29(L)*12.2(W) *1.5(H)cm
Compatible Models:
Visit www.asus.com for latest compatible model...
Specifications: Universal Hard Drive Adapter: SATA IDE to USB adapter allows connect your SATA / IDE device to computer as an external hard drive via USB 3.0. Compatible with 2.5"/3.5" IDE/SATA hard drives and DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD + RW Optical Drive. This is a perfect tool to duplicate, copy, backup, or transfer large amounts of data from one drive to another.
Dual-Head IDE Connector (40pin and 44pin) plus one SATA III Connector
Support transfer speeds up to 5Gbps through USB 3.0, Backward compatible with USB 2.0/1.1.
Supports drives with a capacity of up to 6 TB
LED Lights indicates Power and USB 3.0/ IDE/SATA LED Show Status, Plug & Play, simple to use
On/Off Switch for HDD protection
Supports most models of DVD/CD drives comprising of an IDE or SATA interface on the mar...
Internal Ports: PCI Express x 4 via full size x 16 pinout
Operating Systems Supported: • A computer and BIOS (usually set to AHCI) compatible with NVMe SSD over PCIe lanes.
• Windows 7 with Microsoft’s Hotfixes for NVMe SSD.
• Windows 8 and above.
• Linux.
• If after installation you get a yellow exclamation mark under the Device Manager, you may need to get an additional driver
