Specifications: This converter can support up to three drives simultaneously; Supported Drives: 2.5"/3.5" SATA HDD/SSD; 2.5"/3.5" IDE HDD; DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD+RW; Compatible Systems: Windows8/7/10/Vista/XP/Mac OS 9/10/Linux; Supports drives with a capacity of up to 6 TB; Support speed up to 5Gbps; Backward compatible with USB 2.0/1.1; On/Off Switch for HDD protection; DC Power Supply 12V for 3.5" devices; LED activity indicator, Plug & Play, simple, reliable and stable
Package Contents: USB 3.0 to Sata /IDE converter x1pc USB 3.0 male to male cable 3ft x1pc 12V/2A (DC5.5*2.1) power adapter x1pc Molex 4pin power cable x1pc
Specifications: Interface: USB 3.0
Support Devices: IDE & SATA I/II/III, SSDs, Hard Drives, CD/DVD/Blu-ray Drives
Drive Size: 2.5" & 3.5" & 5.25"
LED Indicators: 1 x IDE; 1 x SATA; 1 x USB; 1 x Power
System Requirements:
Microsoft Windows XP, Vista, 7, 8.1, 10 (32 or 64 bit)
Mac OS X v10.6 and Up
Linux OS
USB 3.0 or 2.0 Equipped System
For USB 3.0 Speeds, the System Must Support USB 3.0 Specification
Specifications: Interface: USB 3.0
Support Devices: IDE & SATA I/II/III, SSDs, Hard Drives, CD/DVD/Blu-ray Drives
Drive Size: 2.5" & 3.5" & 5.25"
LED Indicators: 1 x IDE; 1 x SATA; 1 x USB; 1 x Power
System Requirements:
Microsoft Windows XP, Vista, 7, 8.1, 10 (32 or 64 bit)
Mac OS X v10.6 and Up
Linux OS
USB 3.0 or 2.0 Equipped System
For USB 3.0 Speeds, the System Must Support USB 3.0 Specification
Specifications: System Requirements
Any USB-enabled operating system
Available USB port (USB 3.0 required to achieve USB 3.0 speeds)
2.5 in. SATA drive
UASP-enabled host controller required for UASP performance
Operating Temperature Range: 50 to 122 degree F (10 to 50 degree C)
Storage Temperature Range: 32 to 149 degree F (0 to 65 degree C)
Specifications: Item: M. 2 SSD to USB 3.1 Type A Adapter Board. Material: PCB Board. Protocol: B-Key and M-Key. Input: M.2 SSD Slot, both B-Key and M-Key M.2 SSD (NVMe, SATA Based). Output: USB 3.1 Type A. Dimension: 115*25*6 mm. Transfer Speed: 10Gbps/ 5Gbps (NOTE: If connect with usb 3.0 type a port, speed will be 5Gbps).
Specifications: All in One Solution to Connect to Different Types of Interface's Hard Drive

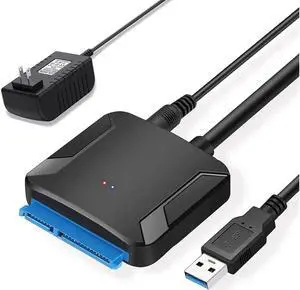

This USB 3.0 to SATA IDE Adapter connects any standard 2.5in or 3.5in SATA or IDE hard drive to a computer through an available USB 3.0 port, also supported DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD+RW; Backward compatible with USB 2.0/1.1.
Supported Drives: 2.5"/3.5" SATA HDD/SSD; 2.5"/3.5" IDE HDD; DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD+RW.
Compatible with Windows 10/8/8.1/7/Vista/XP and Mac OS, Linux, and Chrome OS etc.
Data Transfer Rate: up to 5Gb/s (10 times faster than USB 2.0).
Supports drives with a capacity of up to 6TB.
Backward compatible with USB 2.0/1.1.
DC Power Supply 12V included for 3.5" devices.
On/Off Switch for HDD protection.
Pluy & Play, reliable and stable.
Specifications: Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - USB 3.1 USB Type-A (9 pin; Gen 2; 10 Gbps) Male
Bus Type: USB 3.1 Gen 2
Chipset ID: ASMedia - ASM1351
Compatible Drive Types (Type and Rate): SATA
Drive Size: 2.5in
Interface: USB 3.1 Gen 2
Number of 2.5 inch bays: 1
Number of Drives: 1
Hot Swap Capability: Yes
Max Drive Capacity: Currently tested with hard drives up to 2TB at 7200 RPM
Maximum Data Transfer Rate : 10 Gbps
Type and Rate: USB 3.1 Gen 2 - 10 Gbit/s
UASP Support: Yes
