How much wall space exactly is needed to for the mount? Does it connect to the wall with that single long crossbeam, or is it the two shorter beams that attach to the wall?

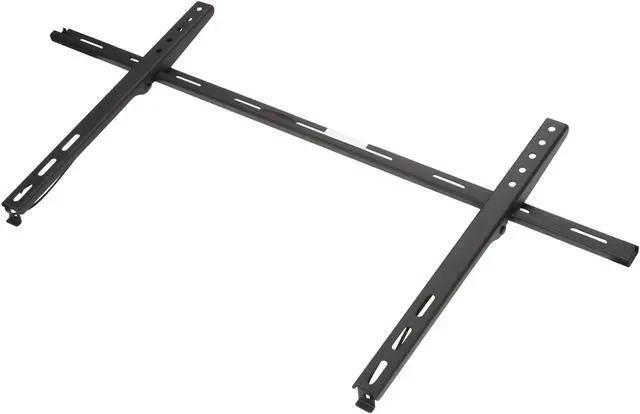

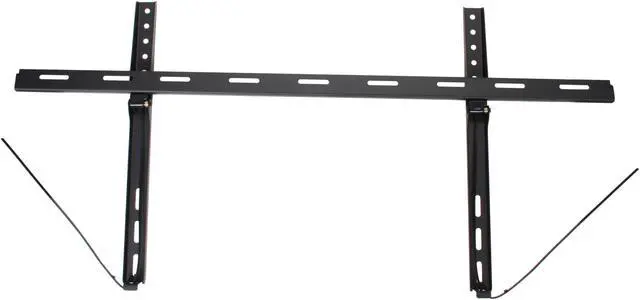

The single cross beam is mounted to the wall. It is 36.5"long. It mounts to at least two preferably 3 studs. The single beam is the only attachment to the wall. The two verticals are attached to the TV. There are shins to attach a TV with a curved back. The two verticals attach and are locked in place when hung. There are two pull cords attached to the verticals for when you need to move it. Been a month and it seems completely secure. Make sure there is adequate space between the seating location and the TV as it cannot be tilted.

Does it fix 32 inch TV?

No the mount holes are too far apart

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Shop All Rosewill Products

Rosewill RHTB-11004 - 37" - 65" LCD LED TV Low-Profile Slim Flat Wall Mount - Max. Load 150 lb. Television, VESA Up to 800 x 400mm, Black

(37) Write a Review

Max. Load 150 lb.
Low Profile: 1.1" (2.75 cm)
Automatic Safety Lock

Overview

Specs

Reviews (37)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

The Rosewill RHTB-11004 is a high-quality TV bracket designed to mount your 37- to 65-inch LCD/LED TV. It features a 2.75cm profile, and supports a maximum load of 150 pounds. The automatic safety lock provides enhanced security. This TV bracket is compatible with the following VESA mounting patterns: 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 400mm, 600 x 400mm, and 800 x 400mm.

Please note: Flat-screen TVs are getting bigger, but they are also being made thinner and lighter, too. That being the case, this TV bracket may support a larger TV then what is indicated on the box and in the specifications table. The TV size and weight specifications listed are for reference only. Please check your TV manual for the VESA and weight specifications.

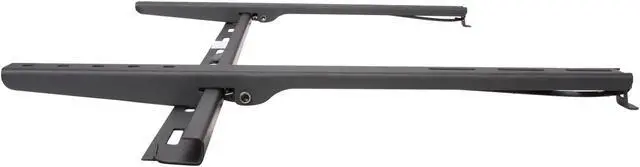

Ultra-Slim ProfileThe low-profile design takes very little space when installed on the wall, ideal for use with super-thin TVs.
Quality ConstructionSturdy construction delivers enough durability and strength to withstand heavy-duty use.

Model
Brand	Rosewill
Model	RHTB-11004
Name	LCD/LED TV Mount

Details
Mount Style	Ultra Thin
Color	Black
TV Size Capacity	37" to 65"
TV Weight Capacity	Max. load 150 lbs.
VESA Compatible	VESA 100x100mm, 200x100mm, 200x200mm, 400x400mm, 600x400mm, 800x400mm

Feature
Feature	The TV size is for reference only. Please check your TV manual for the VESA and weight specification. Profile: 2.75 cm (1.1") Max Mounting Pattern: 800 mm x 400 mm Automatic safety lock

Additional Information
First Listed on Newegg	August 31, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
