| Brand | SAPPHIRE |
|---|---|
| Model | 100420L |
| Chipset Manufacturer | AMD |
|---|---|
| GPU Series | AMD Radeon RX VEGA Series |
| GPU | Radeon RX Vega 56 |
| Core Clock | 1156 MHz |
| Boost Clock | 1471 MHz |
| Stream Processors | 3584 Stream Processors |
| Effective Memory Clock | Up to 800 MHz, Effective 1600 Mbps |
|---|---|
| Memory Size | 8GB |
| Memory Interface | 2048-Bit |
| Memory Type | HBM2 |
| DirectX | DirectX 12 |
|---|---|
| OpenGL | OpenGL 4.5 |
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 1 x HDMI |

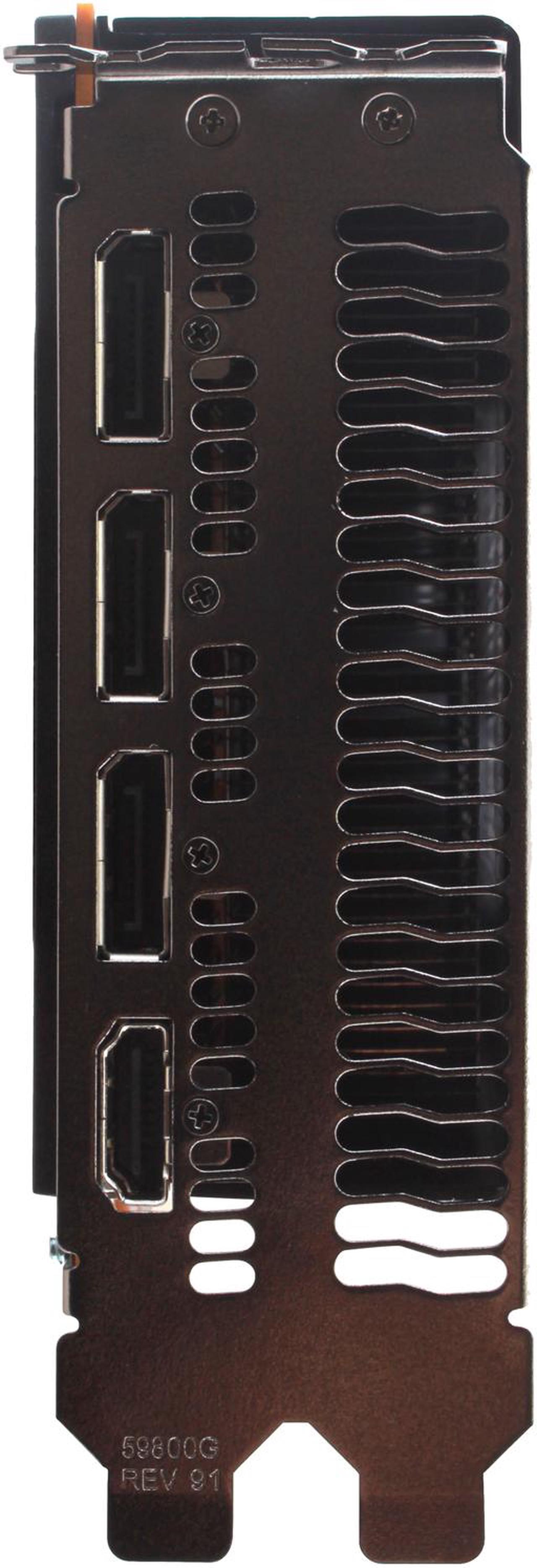

| DisplayPort | 3 x DisplayPort 1.4 |
| CrossFireX Support | Yes |
|---|---|
| Virtual Reality Ready | Yes |
| Cooler | Blower Fan Dual-Ball Bearing |
| Thermal Design Power | 300W |
| Power Connector | 2 x 8-Pin |
| Features | 8GB High Bandwidth Cache (HBM2) Radeon VR Ready Premium Next-Gen Compute Units Radeon FreeSync 2 Technology Radeon Wattman Radeon ReLive Radeon Chill 3rd Gen FinFET 14 DirectX 12 Optimized Vulkan Optimized OpenGL 4.5 / OpenCL2.0 APIs AMD XConnect Support Compatible with AMD and Intel Platforms AMD CrossFire technology (bridgeless) - up to 4 GPUs Powered by the "Vega" Architecture Virtual Super Resolution (VSR) AMD LiquidVR Technology HDMI 4K60 Display Port 1.4 HBR3 / HDR Game-Changing Control |
|---|
| Form Factor | ATX |
|---|---|
| Slot Width | 2 Slots |
| First Listed on Newegg | April 02, 2025 |
|---|
