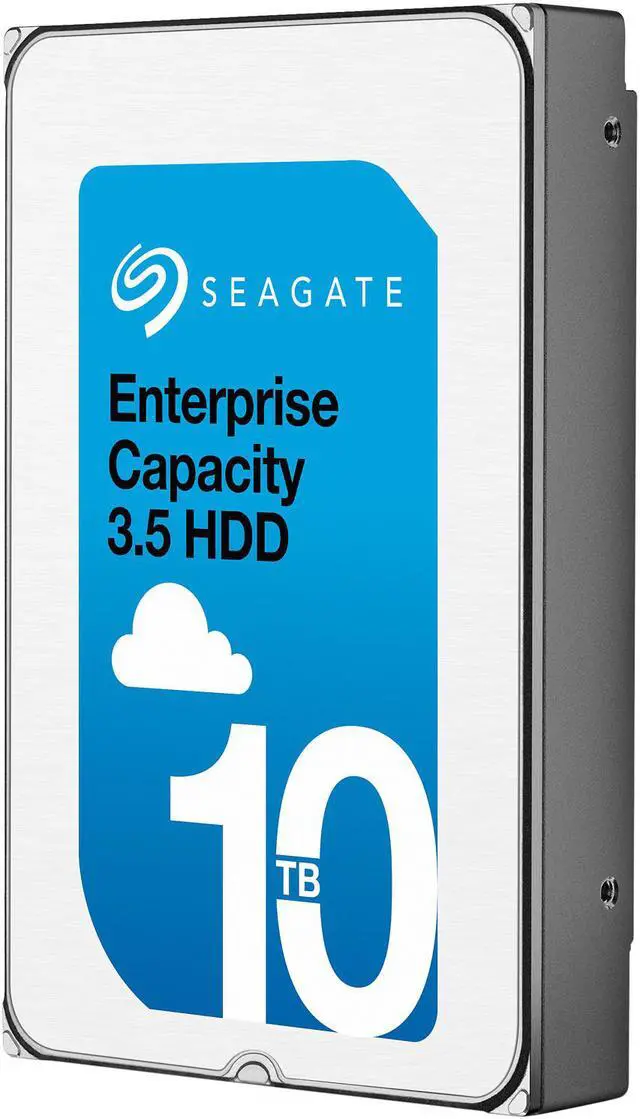

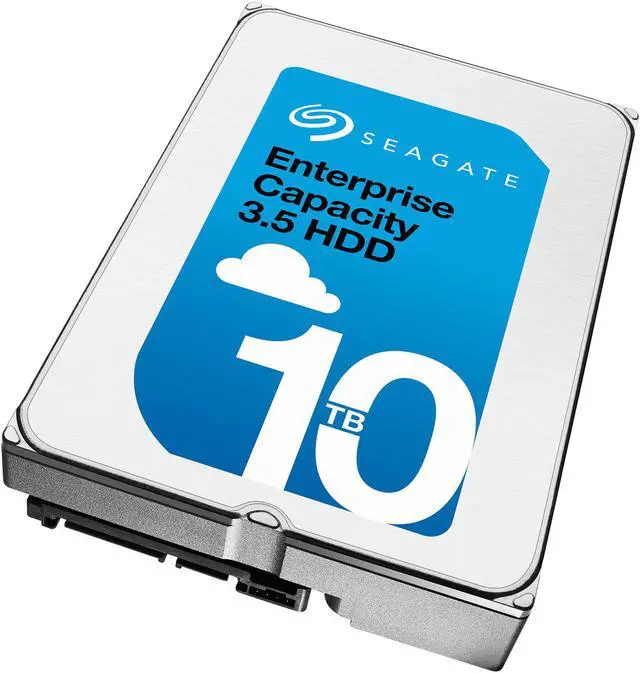

General InformationManufacturer: Seagate TechnologyManufacturer Part Number: ST10000NM0206Manufacturer Website Address: http: //www. seagate. comBrand Name: SeagateProduct Model: ST10000NM0206Product Name: Enterprise Capacity 3.5 HDD (Helium) V6 10TB 4Kn SAS StandardProduct Type: Hard DriveTechnical InformationStorage Capacity: 10 TBDrive PerformanceSpindle Speed (rpm): 7200Buffer: 256 MBInterfaces/PortsDrive Interface: SAS Drive Interface Standard: 12Gb/s SAS Physical CharacteristicsDrive Type: InternalForm Factor: 3.5"H ot Pluggable: YesHeight: 1"Width: 4"Depth: 5.8"W eight (Approximate): 1.43 lbMiscellaneousDevice Supported: Storage System
Learn more about the Seagate ST10000NM0206
Model
Brand
Seagate
Series
Enterprise Capacity 3.5
Model
ST10000NM0206
Performance
Interface
SAS 12Gb/s
Capacity
10TB
NAND Flash Memory Type
SLC
RPM
7200 RPM
Cache
256MB
Average Latency
4.16ms
Features
Encryption
Maximum Storage Capacity for Highest Rack Space Efficiency: - 10TB per drive* for 25% more petabytes per rack** - Industry's lowest power and weight for optimum data center TCO - Forged, wrought-aluminum base and a helium sealed-drive design with uniform density and no porosity - Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks - Digital environmental sensors for measuring internal humidity, pressure and temperature, helping to ensure high reliability, performance and quality - Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions - Proven enterprise-class reliability backed by 2.5M-hr MTBF
Best-Fit Applications: - Hyperscale applications/cloud data centers - Massive scale-out data centers - High-capacity density RAID storage - Mainstream enterprise external storage arrays - Distributed file systems, including Hadoop and Ceph - Enterprise backup and restore - D2D, virtual tape - Centralized surveillance
*Seagate recommends validating your configuration with your HBA/RAID controller manufacturer to ensure full capacity capabilities **Compared to 8TB competitive product
Usage
For Enterprise Storage
Dimensions
Form Factor
3.5"
Height (maximum)
26.11mm
Width (maximum)
101.85mm
Length (maximum)
147.00mm
Additional Information
First Listed on Newegg
April 15, 2025
