Not a question, but a clarification. Apparently the one star reviewer doesn’t understand the difference between SAS and SATA. ?

Yes. SAS drives have an intentionally different connector that bridges the power and data portions; part of this is because SAS controllers can control SATA drives, but not the other way around (so regular SATA drives fit a SAS backplane connector), but also because often SAS drives have a second data channel for two-controller operation that lives in the middle piece (I'm not sure if these are two-channel drives). The reviewer presumably got these for use with a NAS that only supports SATA drives and found out the hard way that they're not compatible.

this new hdd has a different plug than my old seagate sata hdd i'm replacing, 7 pin it looks like. i didn't know. what adapter plug do i need? my motherboard only has the 7 pin.

SAS drives have an intentionally different connector that bridges the power and data portions; part of this is because SAS controllers can control SATA drives, but not the other way around. So, this SAS drive will not work with a SATA controller.

$290^.00

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by E.O.L. Tech Inc,.

4 (3,030 seller ratings)

Shipped by E.O.L. Tech Inc,.

Best Sellers

TechnoDealsUSA

Top Rated

4.2 (228 total ratings)

$303^.00
+ FREE SHIPPING

BeachAudio

Top Rated

4.4 (8,540 total ratings)

$500^.08

Volume Discounts Available

Meet Your Seller

E.O.L. Tech Inc,.

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

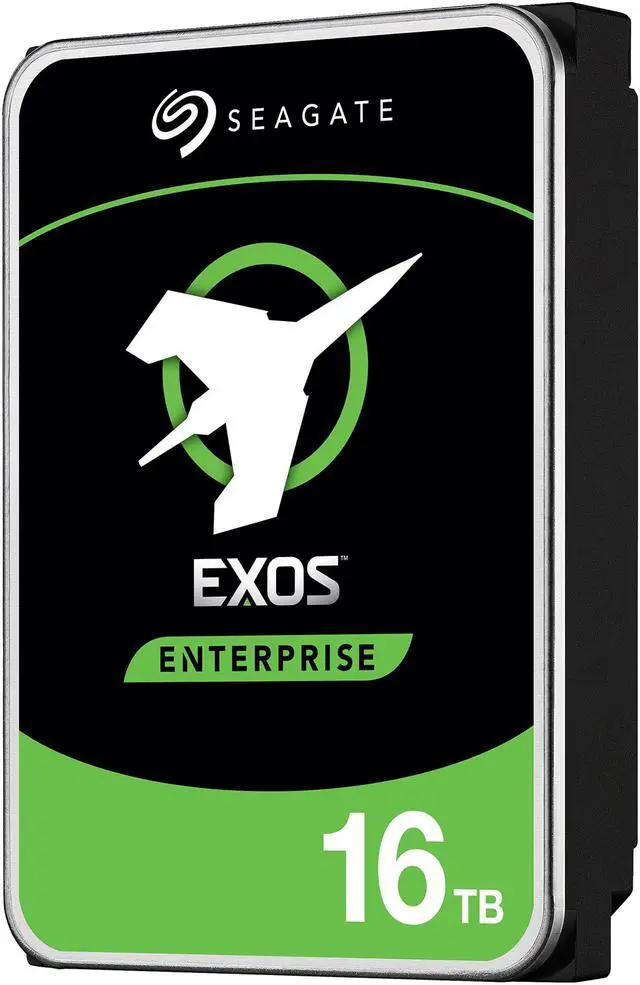

Main image of Seagate Exos X16 16TB Enterprise HDD 12Gb/s SAS 512e/4Kn 7200 RPM 256MB Cache 3.5" Internal Hard Drive ST16000NM002G

Alt view image 2 of 4 - Seagate Exos X16 16TB Enterprise HDD 12Gb/s SAS 512e/4Kn 7200 RPM 256MB Cache 3.5" Internal Hard Drive ST16000NM002G

Alt view image 3 of 4 - Seagate Exos X16 16TB Enterprise HDD 12Gb/s SAS 512e/4Kn 7200 RPM 256MB Cache 3.5" Internal Hard Drive ST16000NM002G

Alt view image 4 of 4 - Seagate Exos X16 16TB Enterprise HDD 12Gb/s SAS 512e/4Kn 7200 RPM 256MB Cache 3.5" Internal Hard Drive ST16000NM002G

Shop All Seagate Products | Visit E.O.L. Tech Inc,. Store

Seagate Exos X16 16TB Enterprise HDD 12Gb/s SAS 512e/4Kn 7200 RPM 256MB Cache 3.5" Internal Hard Drive ST16000NM002G

(9) Write a Review

An Alternative Item Is Available:

(6)

Seagate 16TB Exos X18 7200 RPM SAS 12 Gb/s 256MB Cache 512e/4Kn 3.5-inch Enterprise Hard Drive HDD (ST16000NM004J)

$386^.99–

12Gb/s SAS, 512e/4Kn Standard Model FastFormat
7200 RPM, 256MB Cache
2.5M-hr MTBF rating

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (9)

Any questions? Our AI beta will help you find out quickly.

Try me now

SEAGATE EXOS X16 16TB 7200RPM SAS-12GBPS 256MB BUFFER 512E/4KN

Model
Brand	Seagate
Series	Exos X16
Model	ST16000NM002G
Packaging	Bare Drive

Performance
Interface	SAS 12Gb/s
Capacity	16TB
NAND Flash Memory Type	Hard Drive
RPM	7200 RPM
Cache	256MB
Average Latency	4.16ms

Features
Features	Industry's first 16TB drive for 33% more petabytes per rack* * Compared to 12TB competitive product Highest 16TB hard drive performance with enhanced caching, making it perfect for cloud data center and massive scale-out data center applications Hyperscale SATA model tuned for large data transfers and low latency PowerBalance feature optimizes Watts/TB Helium sealed-drive design delivers lower total cost of ownership through lower power and weight Next-generation helium side-sealing weld technology for added handling robustness and leak protection Digital environmental sensors to monitor internal drive conditions for optimal operation and performance Data protection and security: Seagate Secure features for safe, affordable, fast, and easy drive retirement Proven enterprise-class reliability backed by 2.5M-hr MTBF rating
Usage	For Enterprise Storage

Dimensions
Form Factor	3.5"
Height (maximum)	26.11mm
Width (maximum)	101.85mm
Length (maximum)	147.00mm

Additional Information
First Listed on Newegg	July 11, 2024
